General notice (liability): the details of this technical documents serve for description. Consents regarding the availability of certain features or
regarding a certain purpose always require a special written agreement.
FH
D
E
B
D
G
Page No. 5237326-06 GB 2.5 Right reserved to make technical changes!

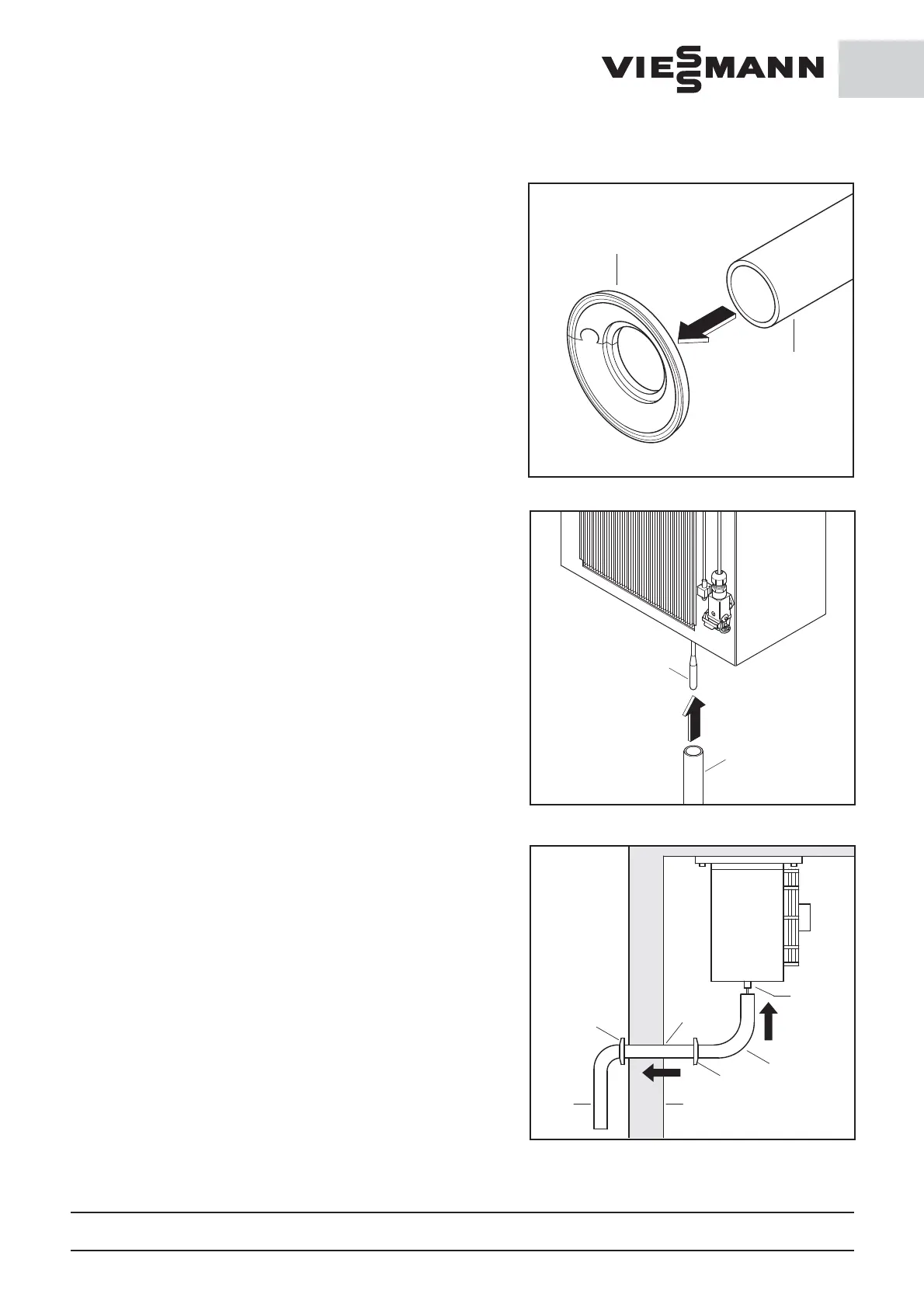

2.5 Assembly of the condensate run-off tubing
Place plastic ring (D) over the condensate run-off tubing (B).
Insert heating (A) in the condensate run-off tubing (B) which
should be straightened for easier insertion.
Condensate run-off tubing (B) from inside through hole
(G, ø 31 mm) in the coldroom wall (F). If necessary, a
lubricant can be used.
Condensate run-off tubing (B) on the drain plug (E) of the
evaporation plate.
Cover hole (G) for condensate run-off tubing (B) with the
plastic ring (D).
See separate assembly notes for all split units regarding
pipe drain (H).
B
D
A
B
