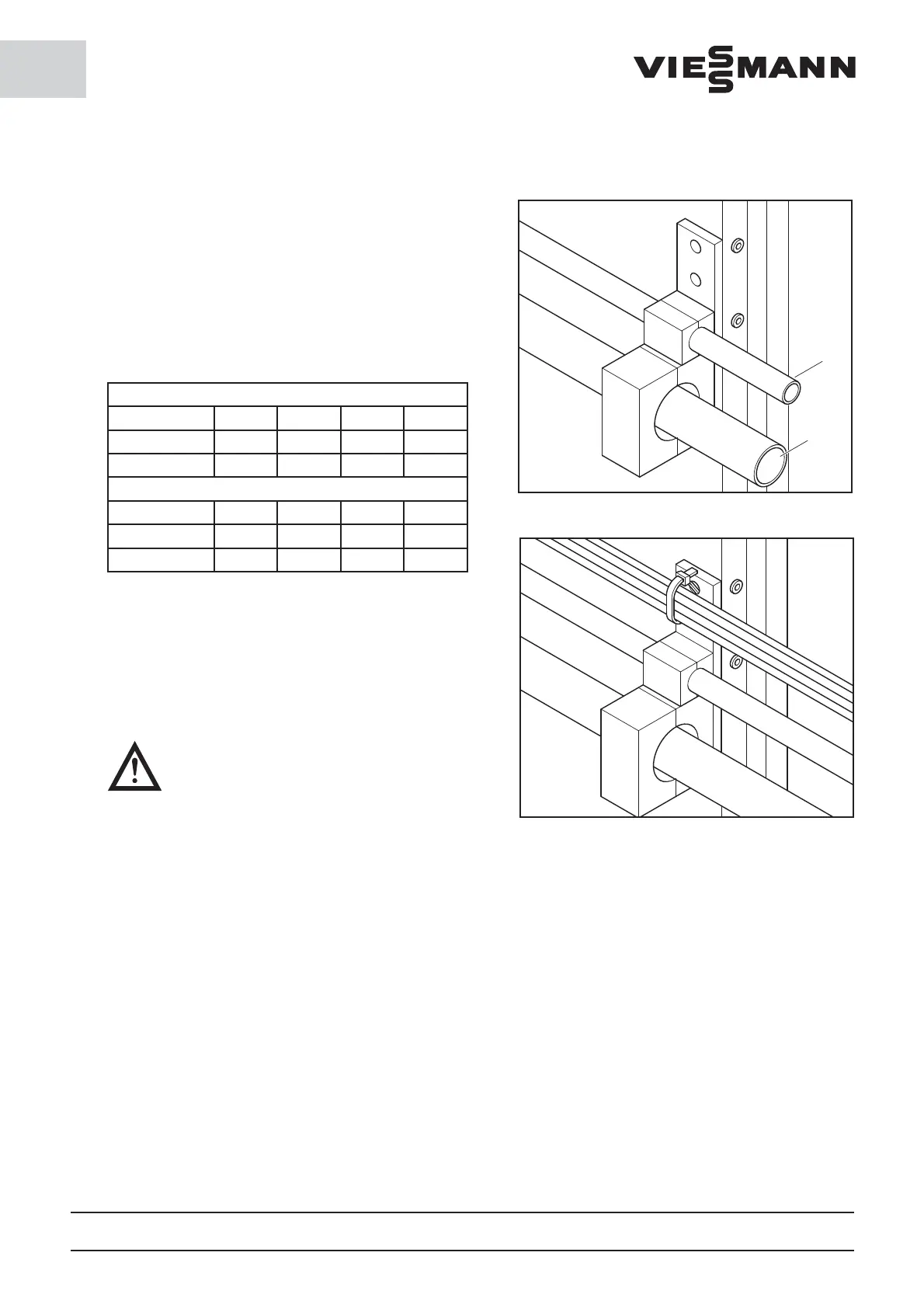

2.3 Installation of conduits
Solder the evaporator to the refrigeration unit at the points
(P and Q) on the refrigeration unit using a suitable copper
pipe with the soldering points on the evaporator.
Test all soldering points for sealing.
The length of the conduit may not exceed 15 m!
2.4 Laying electrical cables
The electrical cables should be laid along the pipes.
Insert the electrical plug into the proper socket on the
refrigeration unit template.
Attention!
Do not connect electrical power supply until beginning
of operation - Danger!
Q
P
Pipe diameter in mm
Unit CS 900 CS 1300 CS 2000 CS 2800
Fluid Conduit (P) 6 6 6 10
Suction Pipe (Q) 10 12 12 16
Unit FS 900 FS 1400 FS 1800 FS 2400
Fluid Conduit (P) 6 10 10 10
Suction Pipe (Q) 12 16 16 16
