Viessmann VITOCAL 100-S - Page 89

89

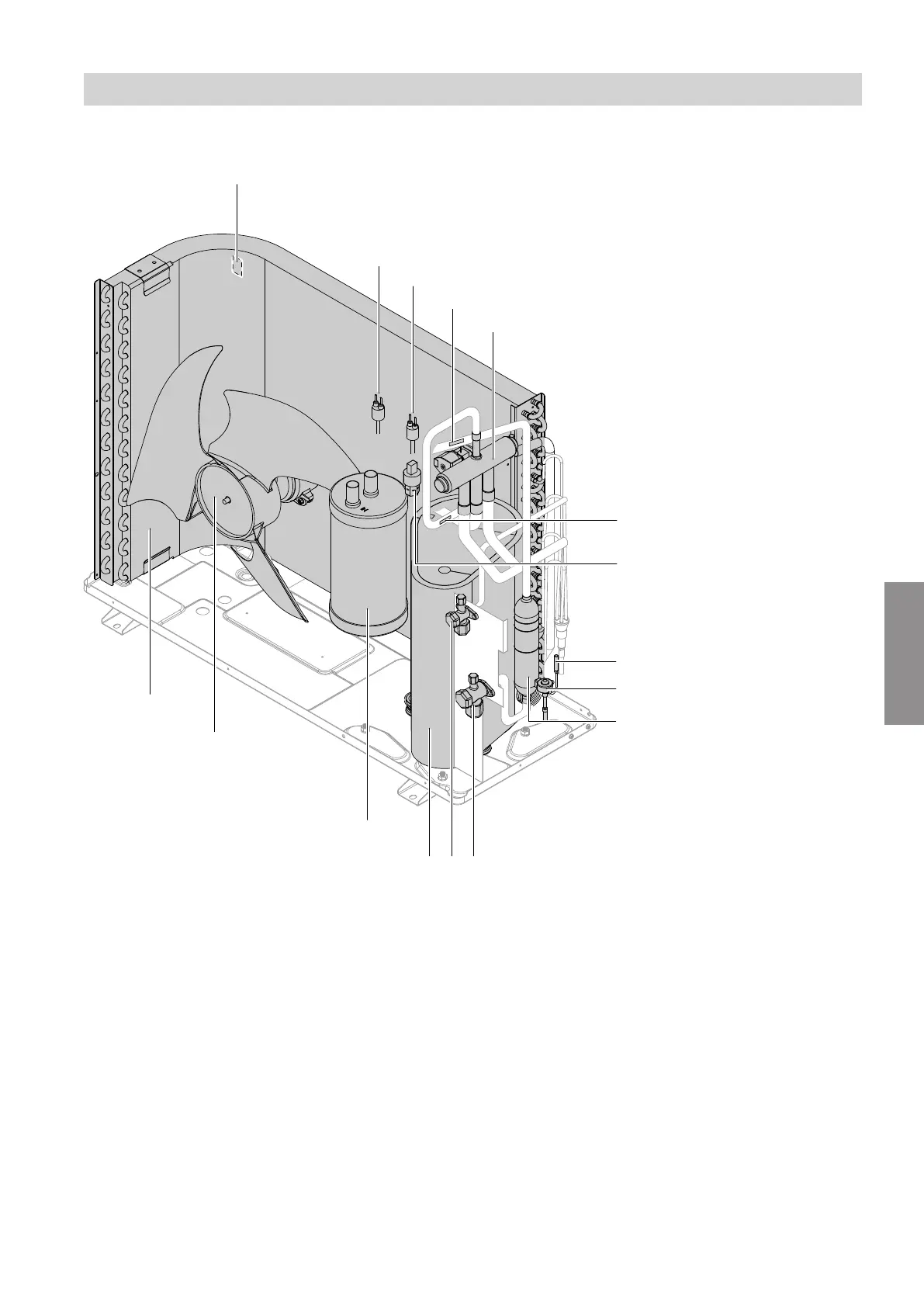

Outdoor unit with 1 fan: Types 101.B08
G
H
K
L
M
N
P
R
S
F
E
D
C B A
O
Fig. 69
A
Liquid line
B
Hot gas line
C
Compressor
D
Liquid separator
E
Fan
F
Evaporator
G
Air inlet temperature sensor (outdoor, RT15)
H
Low pressure switch (pLo)
K
High pressure switch (pHi)
L
Suction gas temperature sensor (suction, RT17)
M
4-way diverter valve
N
Hot gas temperature sensor (discharged, RT16)
O
High pressure sensor
P
Defrost temperature sensor (defrosting, RT14)
R
Electronic expansion valve
S
Oil separator
Maintenance
Outdoor unit: Overview of internal components (cont.)
6199585
Maintenance
