Types 221.A10 to A16, 230 V~ and 400 V~

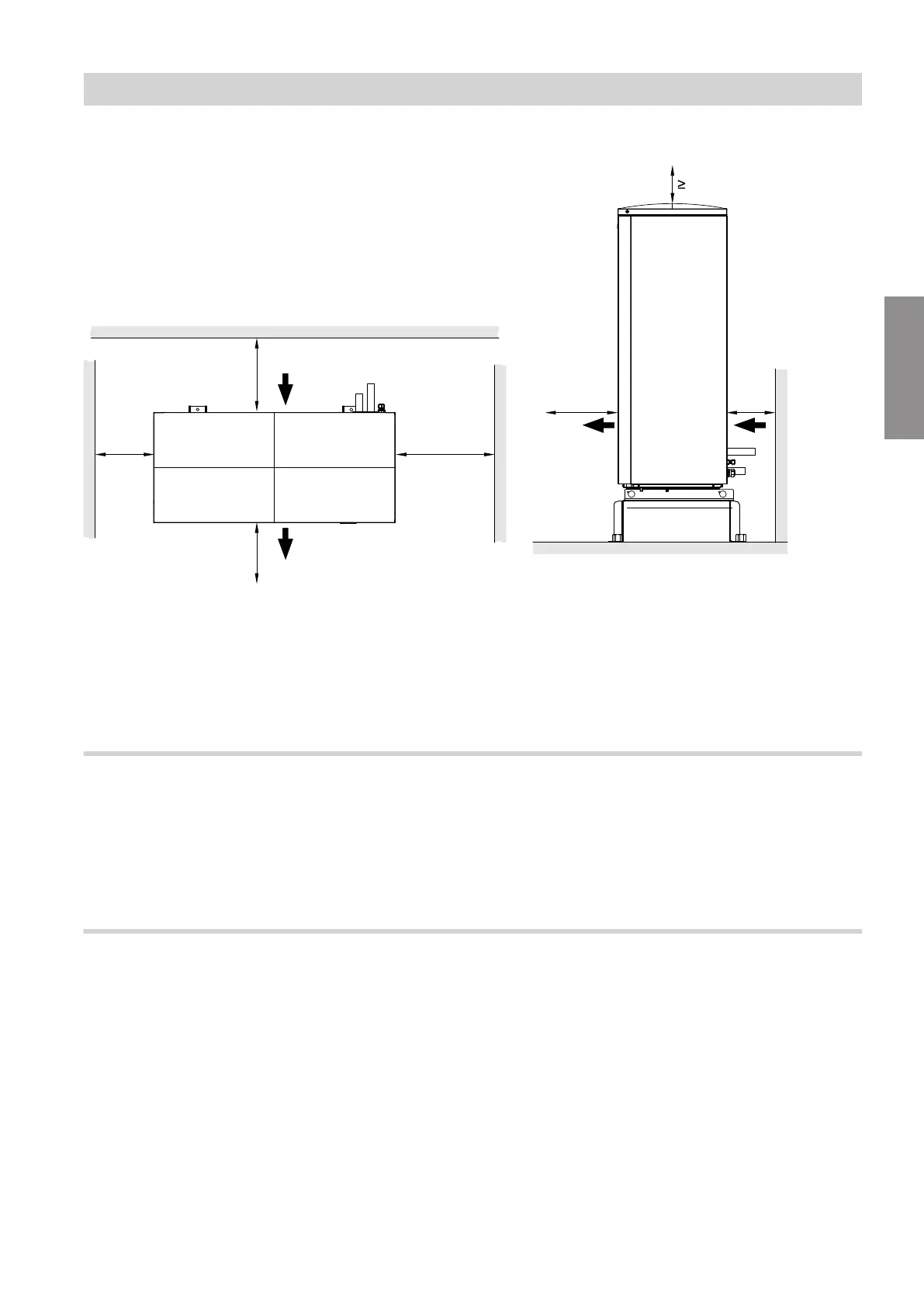

Fig. 5
A
Air intake
B
Air discharge
a
■
Line entry above ground level:
≥ 200 mm
■
Line entry below ground level:
≥ 900 mm
Transport and siting
!
Please note
Impacts, compression and tensile loads can
cause damage to the outside panels of the
appliance.
Never apply loads/weight to the top, front or
side panels of the appliance.
!
Please note
If the compressor in the outdoor unit is strongly
tilted, lubricant will enter the refrigerant circuit
and damage the appliance.
Max. tilting angle: 45° for approx. 4 min, other-
wise 30°
Floorstanding installation
Foundations
Fit the floor supports on 2 horizontal foundation strips.
We recommend the construction of concrete founda-
tions in accordance with the following diagram. The
stated thickness of the layers represents an average
value. These values should be adjusted to suit the
local conditions. Follow the standard rules of building
engineering.
Installation sequence
Installing the outdoor unit (cont.)
5831412
Installation
