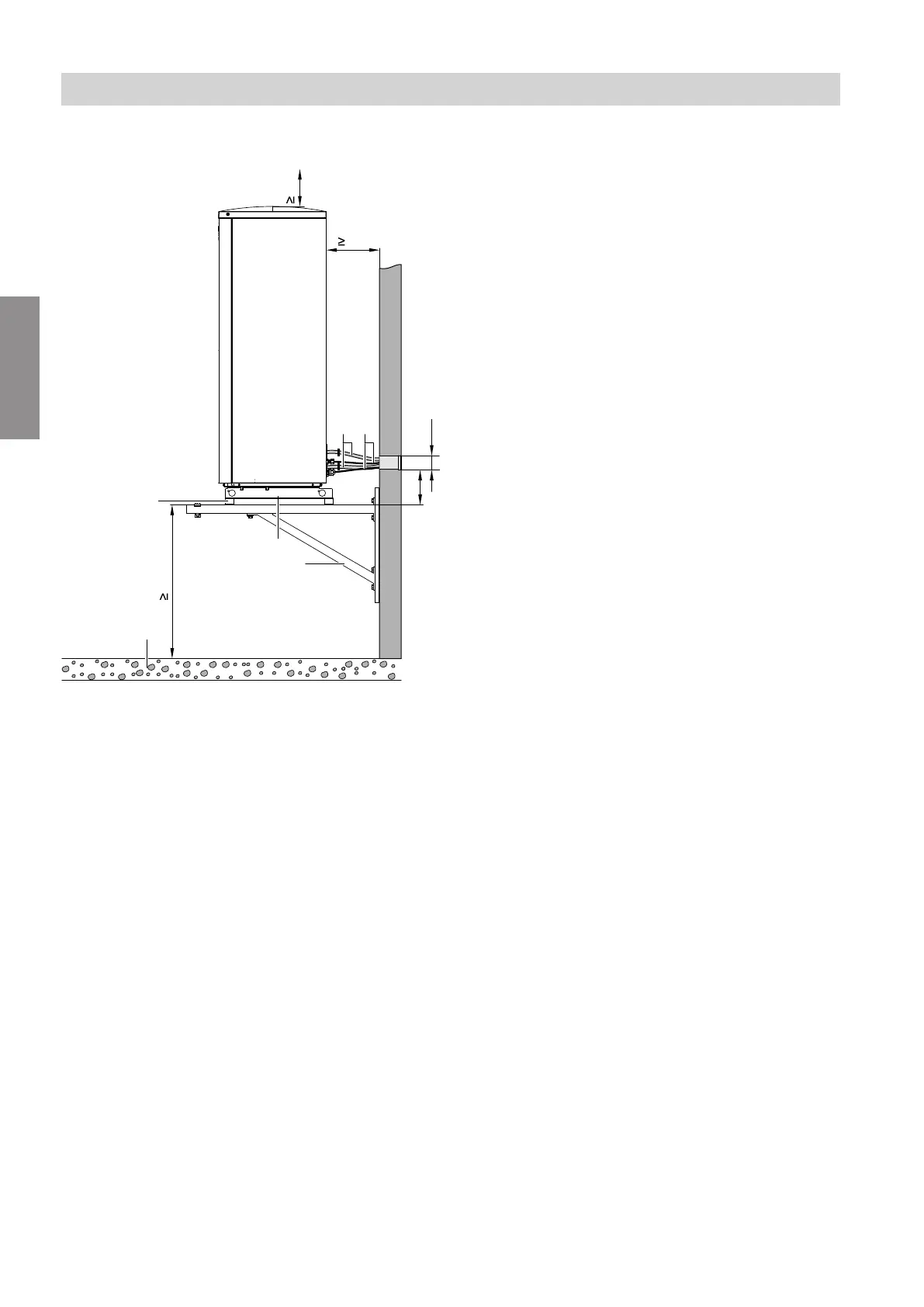

Wall mounting with bracket set
C D
300
G
F
B
200
A
E
200
220
180
Fig. 10
A
Gravel bed as condensate soakaway
B
Anti-vibration mounts (standard delivery of
bracket)
C
Hydraulic connection lines, indoor/outdoor unit
D
Indoor/outdoor unit Modbus cable and outdoor unit
power cable:
Route the cables so they are not stressed.
E
Connection set, wall mounting (accessories)
F
Openings in the base plate for free drainage of
condensate:
Never seal the openings.
G
Bracket for wall mounting (accessories)
Installation sequence
Installing the outdoor unit (cont.)
