Installing an outdoor unit on foundations

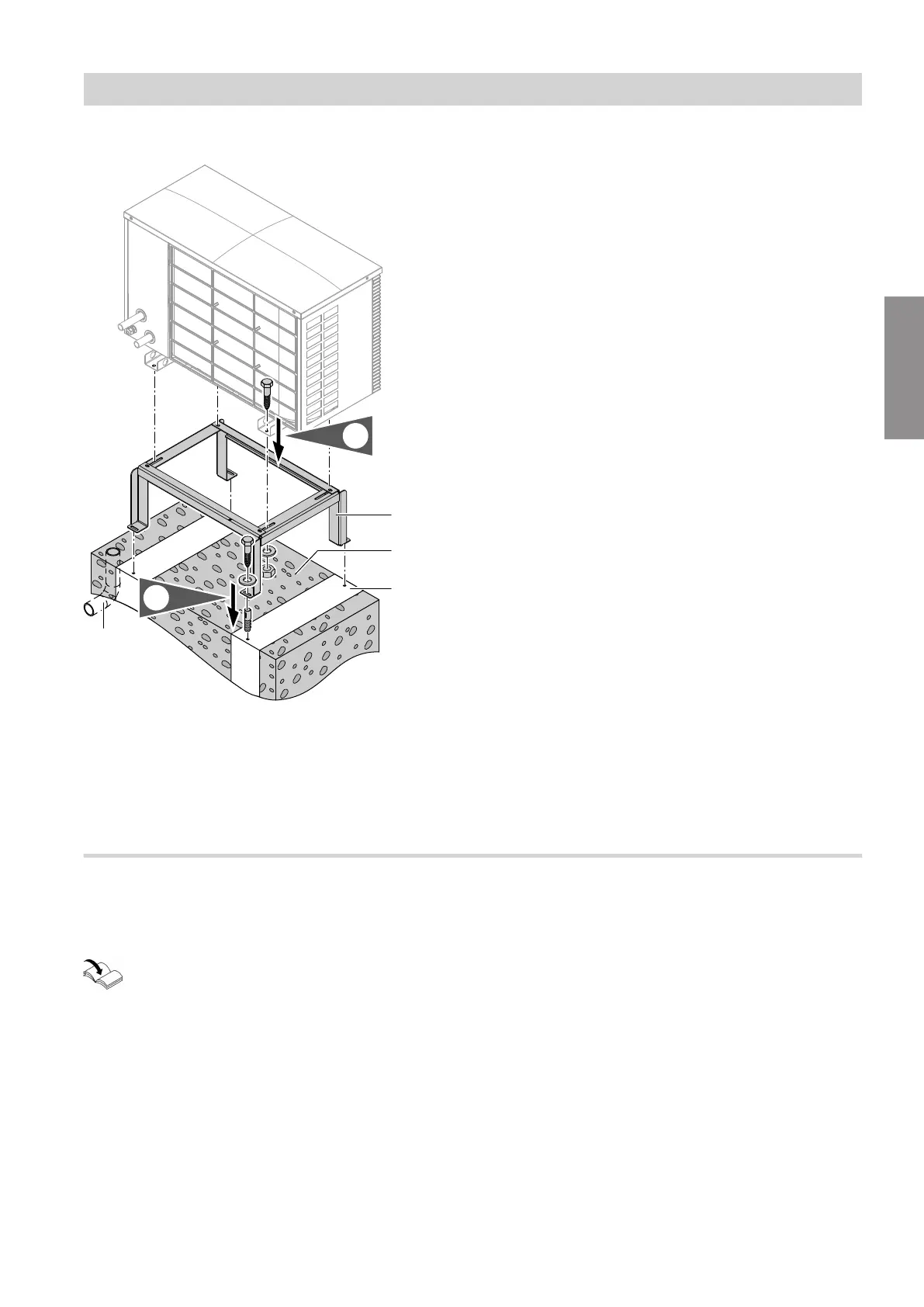

Fig. 9
A
Support for floorstanding installation (accessories)
B
Gravel bed as condensate soakaway
C
Concrete foundations (see technical guide)
D
Only for line entry below ground level: Hydraulic
connection set (accessories)
Note
We recommend letting condensate drain away freely
(no condensate pipe).
Wall mounting
Installation should only be performed with the bracket
set for wall mounting (accessories).
Separate installation instructions
Installation sequence
Installing the outdoor unit (cont.)
