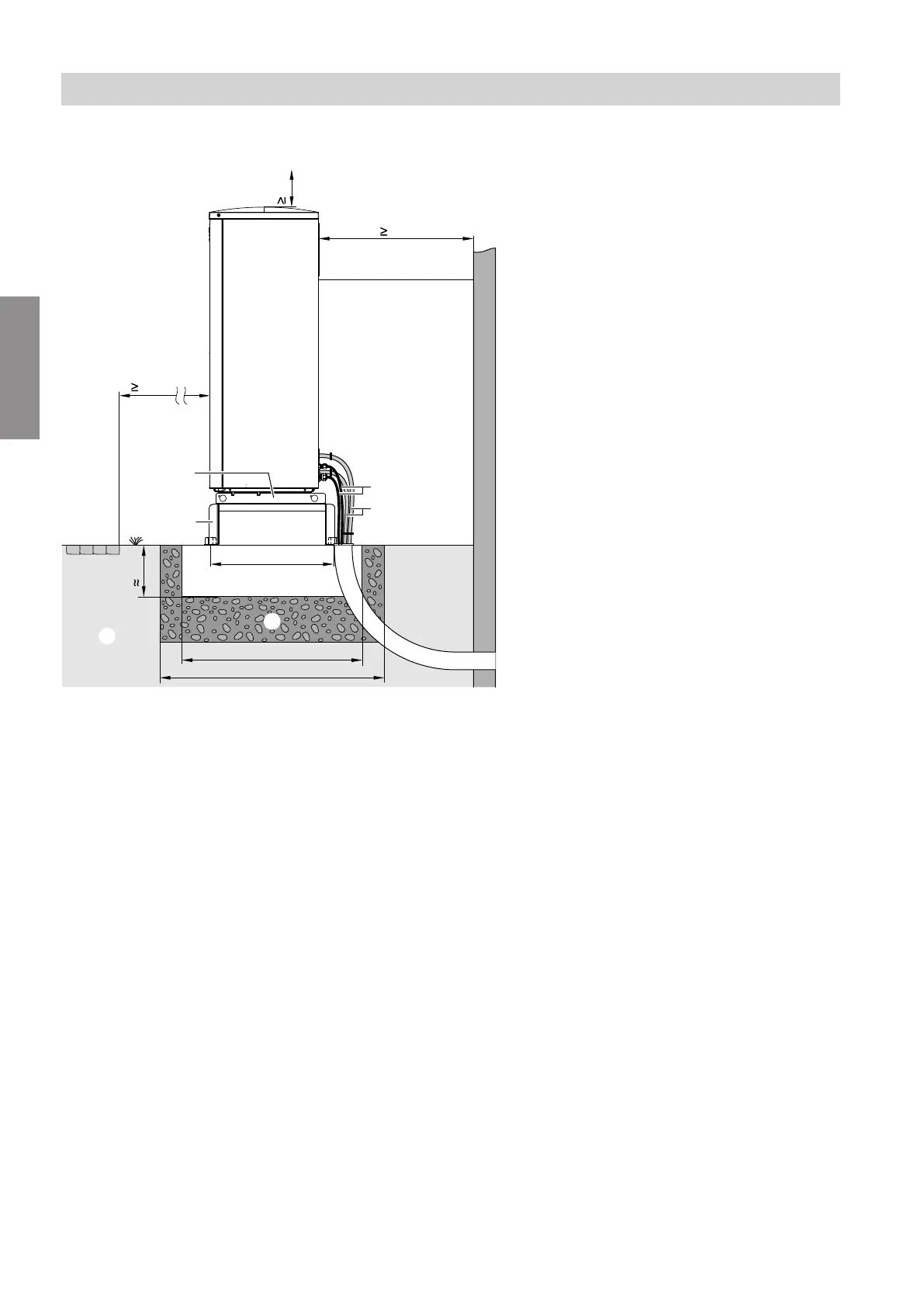

Floorstanding installation with support; line entry below ground level
300
K
835
1100
3000
B
A
D
702
H
E
900
C
F
G
200
Fig. 8
A
Ground
B
Pathway, patio
C
Support for floorstanding installation (accessories)
D
Openings in the base plate for free drainage of
condensate:
Never seal the openings.
E
Indoor/outdoor unit Modbus cable and outdoor unit
power cable:
Route the cables so they are not stressed.
F
Floorstanding installation connection set (accesso-
ries)
G
Hydraulic connection set (accessories)
H
Foundation strip
K
Frost protection for foundations (compacted
crushed stone, e.g. 0 to 32/56 mm); thickness of
layer subject to local requirements and building
regulations
Installation sequence
Installing the outdoor unit (cont.)
