17

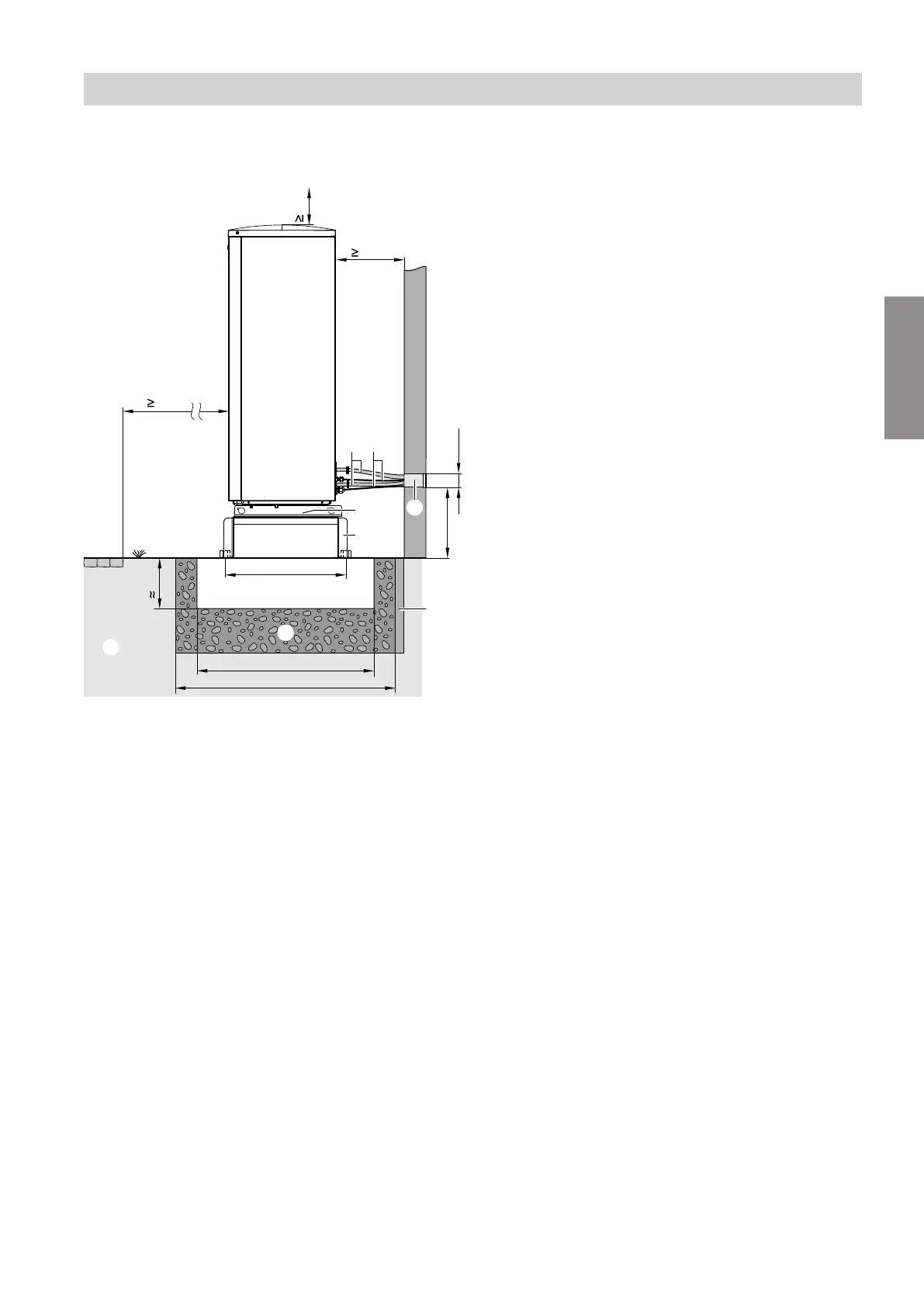

Floorstanding installation with support; line entry
above ground level
3000
A
200
300
K
702
835
E
F
1100
C D
200
L
B
G
H
500
180
Fig. 7
A
Ground
B
Pathway, patio
C
Hydraulic connection lines, indoor/outdoor unit
D
Indoor/outdoor unit Modbus cable and outdoor unit
power cable:
Route the cables so they are not stressed.
E
Openings in the base plate for free drainage of
condensate:
Never seal the openings.
F
Connection set, wall mounting (accessories)
G
Support for floorstanding installation (accessories)
H
Foundation strip
K
Frost protection for foundations (compacted
crushed stone, e.g. 0 to 32/56 mm); thickness of
layer subject to local requirements and building
regulations
L
Flexible separating layer between the foundations
and the building
Installation sequence
Installing the outdoor unit (cont.)
5831412
Installation
