Swimming pool heating
Note
■
Swimming pool heating is controlled via EA1 exten-
sion with KM-BUS.
■
Make connections to EA1 extension only in accord-
ance with Fig. 34.
■
A filter circuit pump cannot be controlled via the heat
pump control unit.
A
[{S
DE
[{{]
0-10V
f-]
A
[{A
DE
[{D
DE
+ -5 63 41 21 2
B
L1N
H
L1
N
M
1~
C
D
F G
E
K

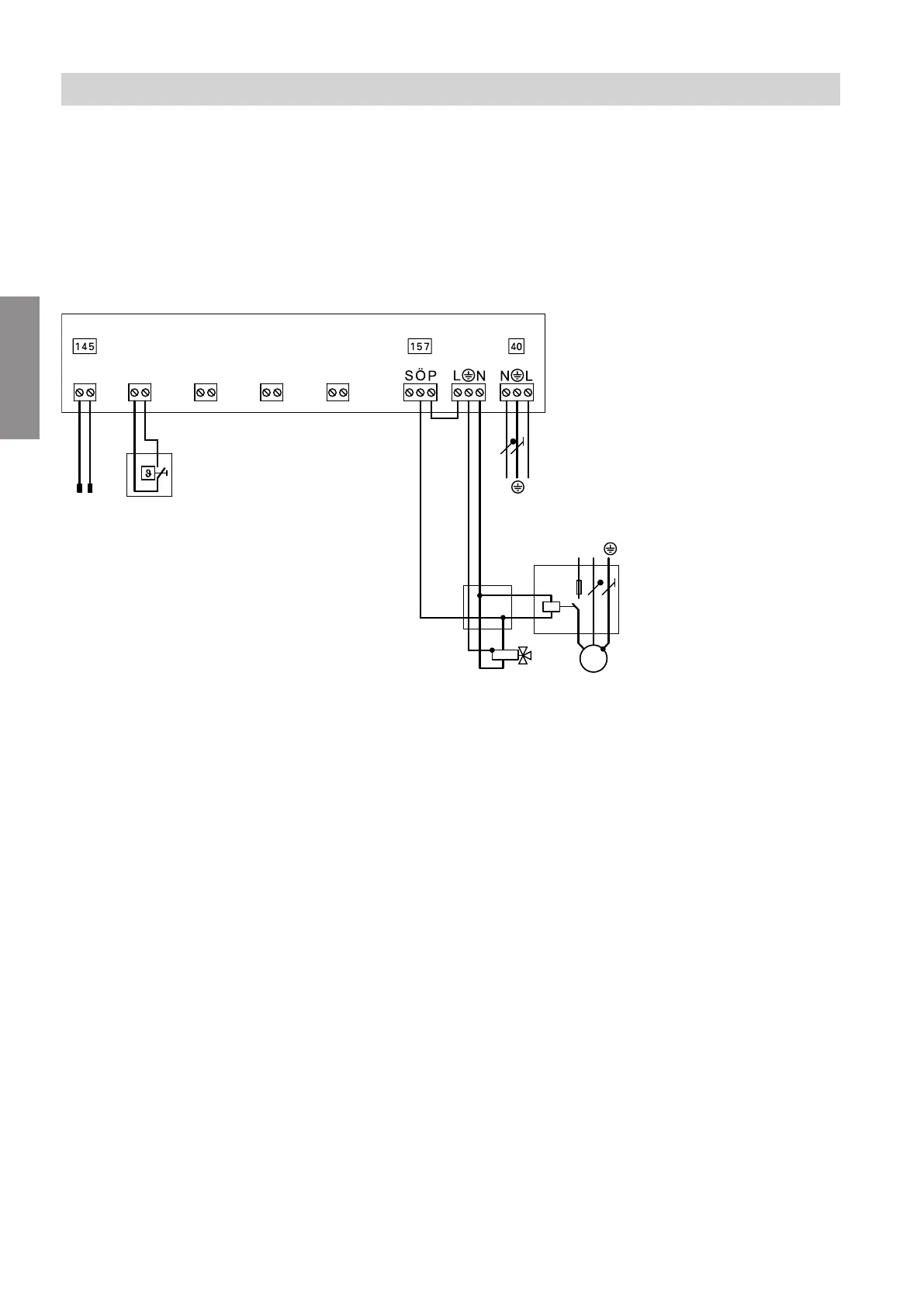

Fig. 34
A
EA1 extension
B
Power supply 1/N/PE 230 V/50 Hz
C
Junction box (on site)
D
Fuses and contactor for circulation pump for swim-
ming pool heating (accessories)
E
Jumper
F
3-way diverter valve for "swimming pool" (zero
volt: Charging the heating water buffer cylinder)
G
Circulation pump for swimming pool heating
(accessories)
H
Temperature controller for regulating swimming
pool temperature (floating contact: 230 V~, 0.1 A,
accessories)
K
KM-BUS connection to the controller and sensor
PCB
Installation sequence
Electrical connection (cont.)
