Viessmann Vitocell 050-E - Fitting the Thermal Insulation; Fitting the Thermal Insulation Jacket Sections

11
Fitting the thermal insulation jacket sections
!
Please note
The thermal insulation must not come into con-
tact with naked flames.
Exercise caution when welding and brazing
Note
■
2 people are required for the following work.
■
Ensure that no fleece remnants enter the heating
water buffer cylinder through the cylinder connec-
tions.
1.
2.
3.
8x

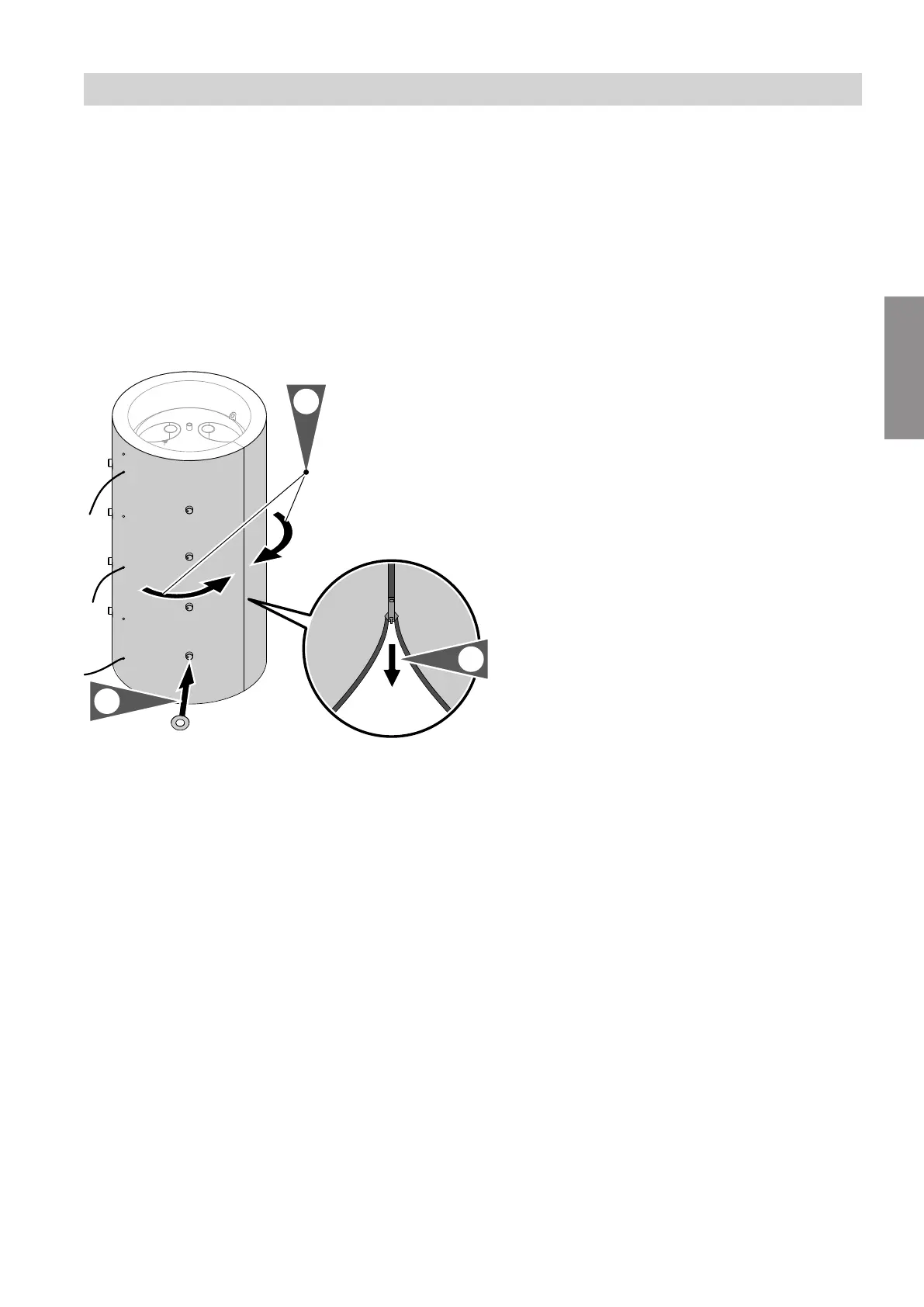

Fig. 5
1. Place the thermal insulation jacket around the cyl-
inder body.
2. Close the thermal insulation jacket using the zip
fastening.
3. Push collars onto the thermal insulation over the
connections.
Installation sequence
Fitting the thermal insulation
6153974
Installation
