Viessmann Vitocell 050-E - Fitting the Thermometer Sensors and Cylinder Temperature Sensors

10
2.
A
3.
5.
6.
4.
1.

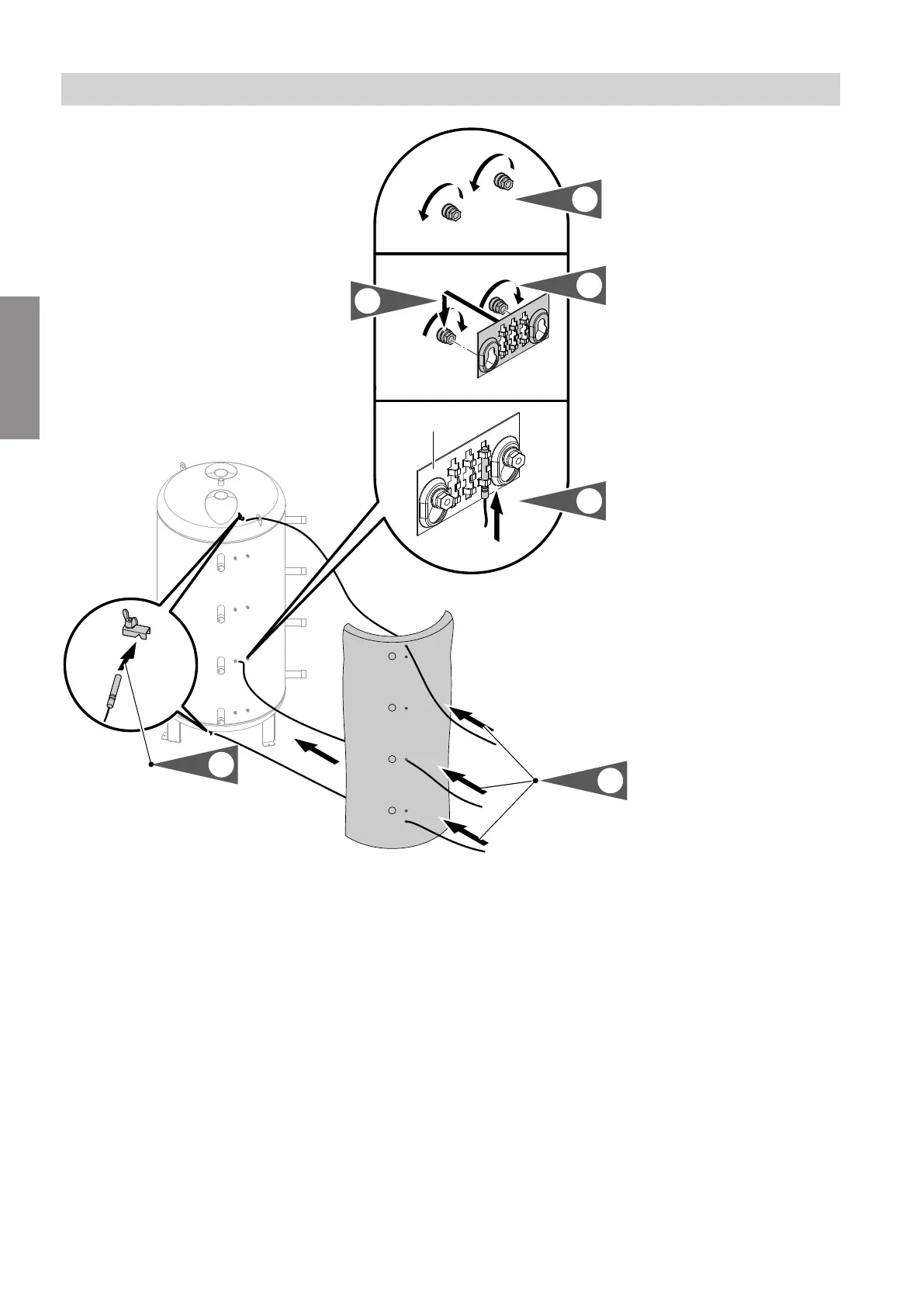

Fig. 4
1. Route the leads of all available thermometer sen-
sors to the cylinder through the small apertures in
the thermal insulation mat.
2. Guide the upper thermometer sensor through the
lifting eye, insert it into the clamping bracket as far
as it will go and tighten the wing nut.
Secure the lower thermometer sensor (if available)
in the clamping bracket at the base of the cylinder.
3. Release the nuts.
4. Push the clamping system onto the threaded studs
and align.
5. Tighten the nuts.
6. Depending on where the sensor is being fitted:
Insert the thermometer sensors and cylinder
temperature sensors into clamping systems
A
as far as they will go.
Note
Never wrap insulating tape around the sensors.
Installation sequence
Fitting the thermometer sensors and cylinder temperature sensors
