Viessmann Vitocell 100-L Service Instructions For Contractors

13
750 and 950 l
K
12x
F
F
H
D
C
AB
G
E

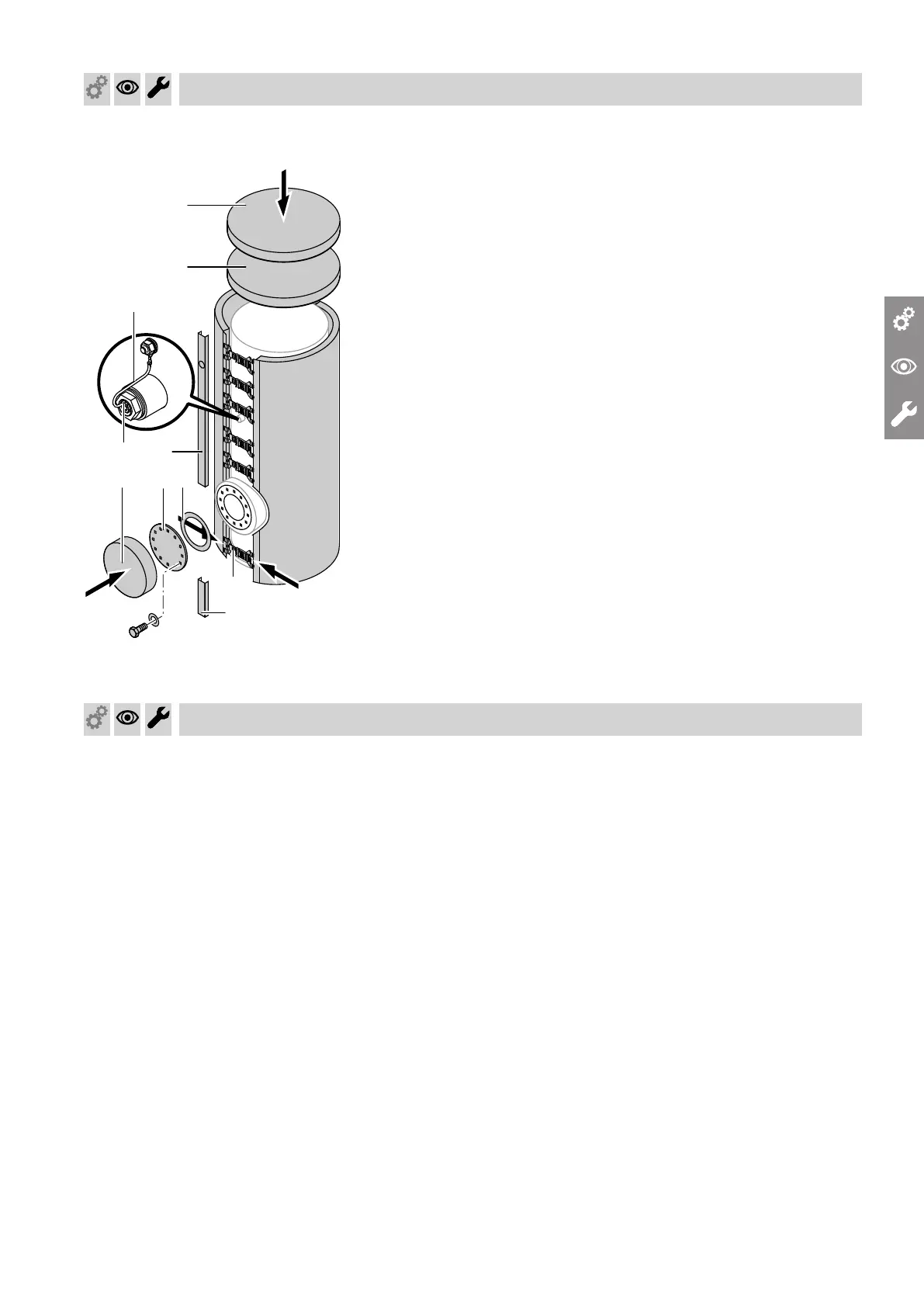

Fig. 6
1. Reconnect the cylinder to the pipework.
2.
Insert new gasket
A
underneath flange cover
B
.
3.
Fit flange cover
B
and tighten the screws with a
maximum torque of 25 Nm.
4. Fill the cylinder from the DHW side.
Retighten the flange cover with a maximum torque
of 25 Nm.
5.
Push earth cable
C
onto tab
D
.
6.
Push clip fasteners
E
as close together as they
will go and push cover strips
F
into place.
7.
Fit thermal insulation mat
G
and cover
H
.
8.
Fit cap
K
.
Checking connections on the water side for tightness
Commissioning, inspection, maintenance
Returning the cylinder to use (cont.)
5677344
