Viessmann Vitocell 100-L Service Instructions For Contractors

9
750 and 950 l
A
D
D
G
F
C
B
E

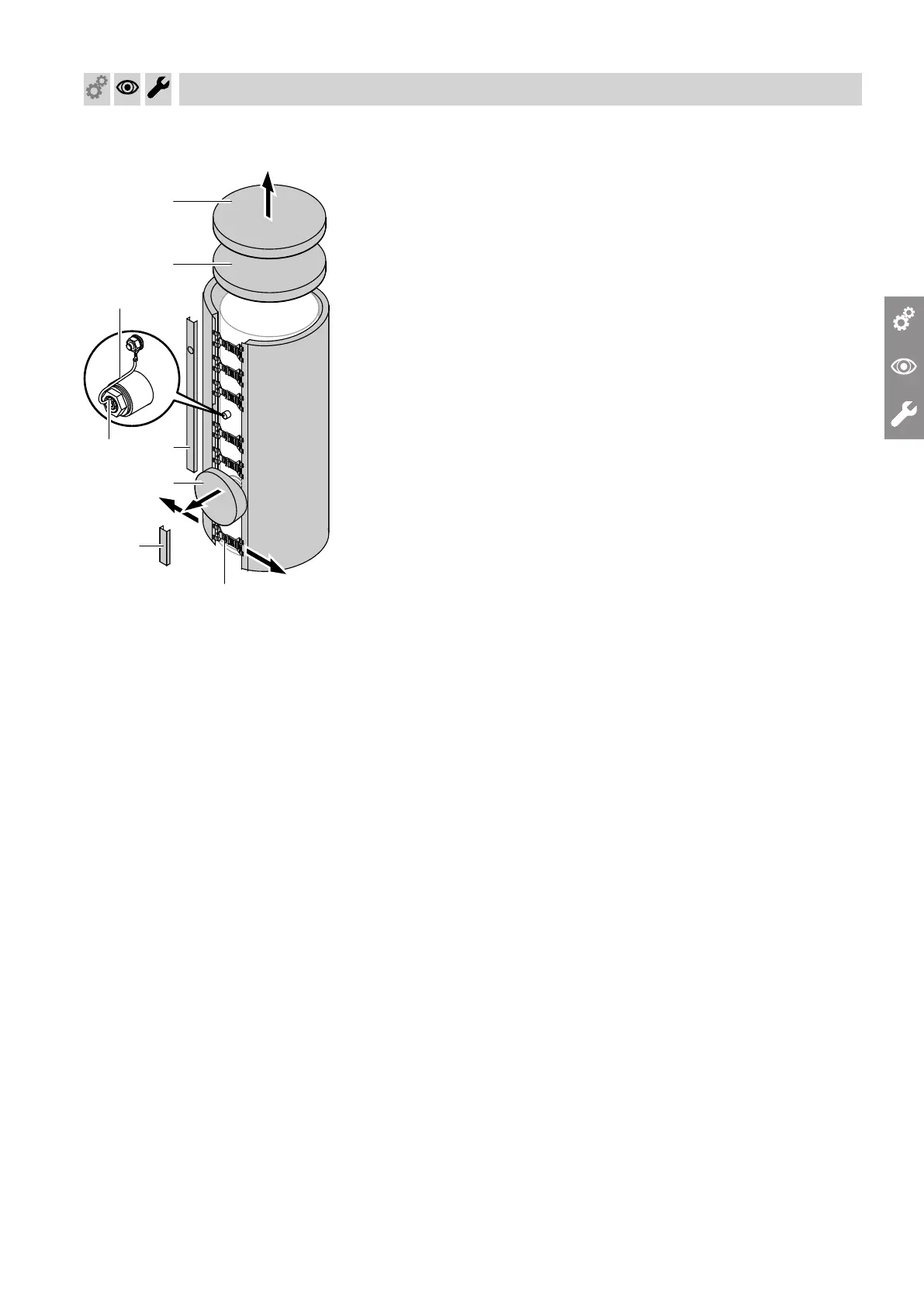

Fig. 2
1.
Remove cover
A
and cap
B
with thermal insula-
tion
C
.
2.
Remove cover strips
D
, open clip fasteners
E
and pull apart.
3.
Pull earth cable
F
from tab
G
.
4.
Connect tester in series across earth cable
F
and
tab
G
.
■
Current > 0.3 mA: Protective magnesium anode
is OK
■
Current < 0.3 mA or no current at all: Inspect the
protective magnesium anode visually (see
page 11).
Commissioning, inspection, maintenance
Checking the anode earth current with an anode… (cont.)
