On-site preparati ons when using a conne ction set (accessory ), see the
installation instructions of the connection set.

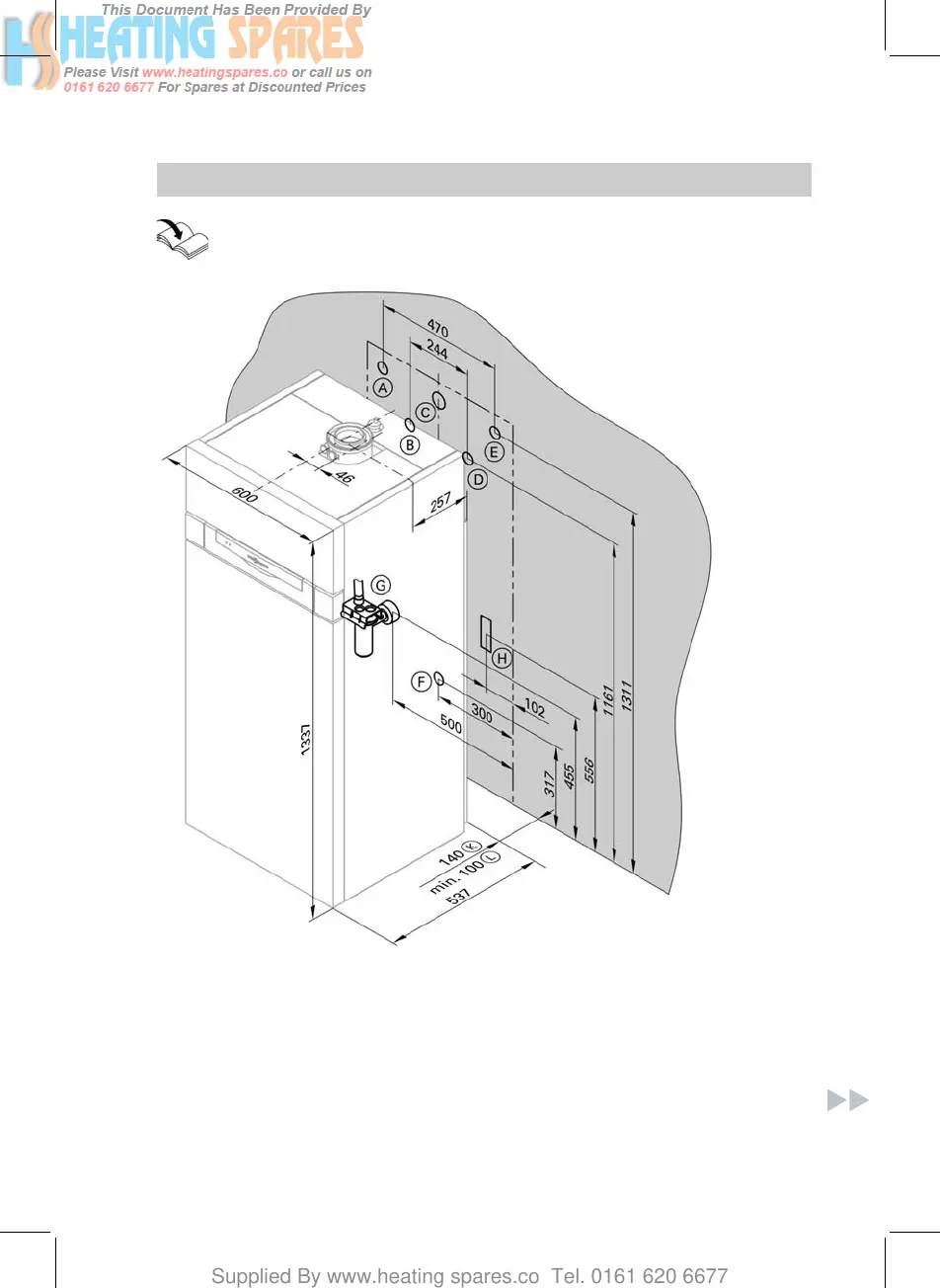

A Cold water G¾"
B Heating flow G¾"
C Gas connection G¾"
D Heating return G¾"
E DHW G¾"
F DHW circulation G1"
G Drain outlet kit (accessory)
H Cable arrangem ent area
K Wall clearance with connection
set (accessory)
L Wall clearance w ith on-site con-
nection
Preparations for boiler installation
5
5862 566 GB
