7

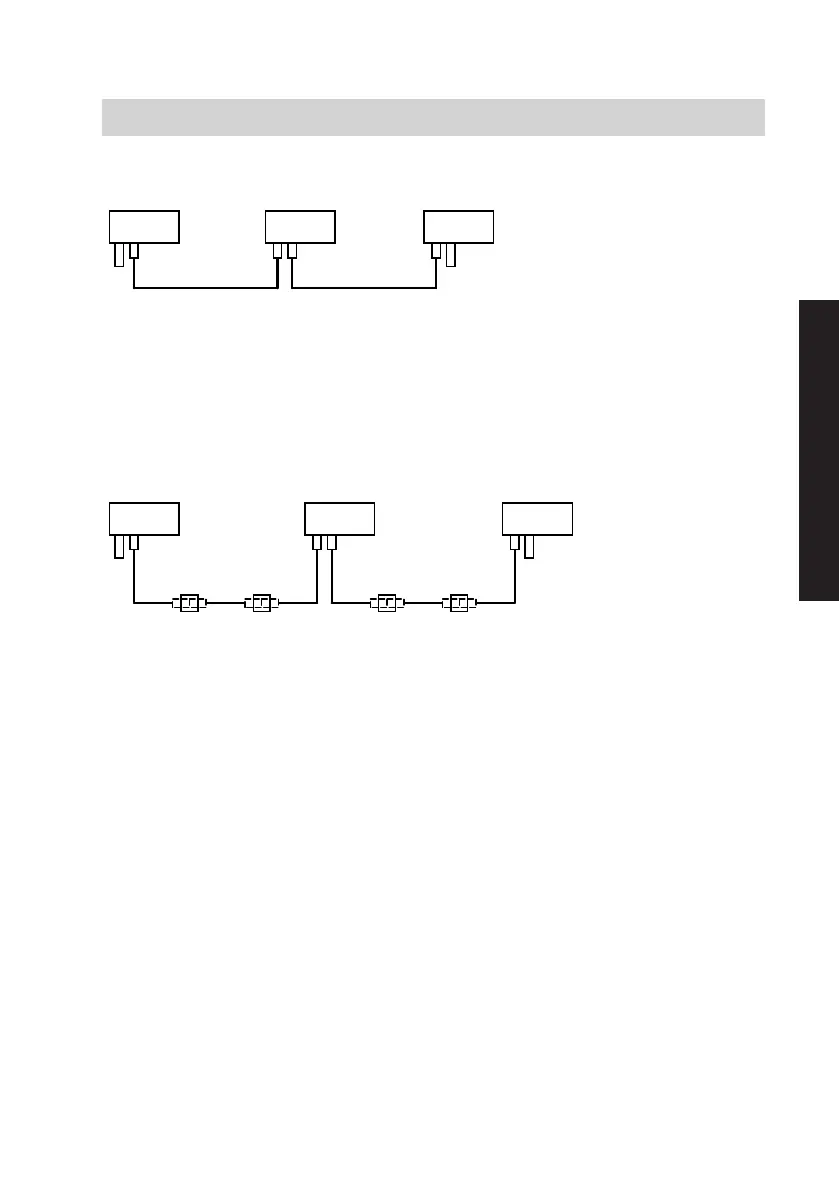

Connection with LON cable
C
A A
B
D
C
D
Routing distance
≤
7 m
A
Vitotronic control unit
B
Vitogate 200, type EIB
C
Terminator
D
LON cable, 7 m long
Connection with LON cable and LON coupling
C
E
A A B
E
DD D
EE
DD
C
D
Routing distance 7 to 21 m
A
Vitotronic control unit
B
Vitogate 200, type EIB
C
Terminator
D
LON cable, 7 m long
Max. 3 cables between 2 applian-
ces
E
LON coupling
Installation sequence
Connection to the Vitotronic control unit
(cont.)
5592 880 GB
Installation
