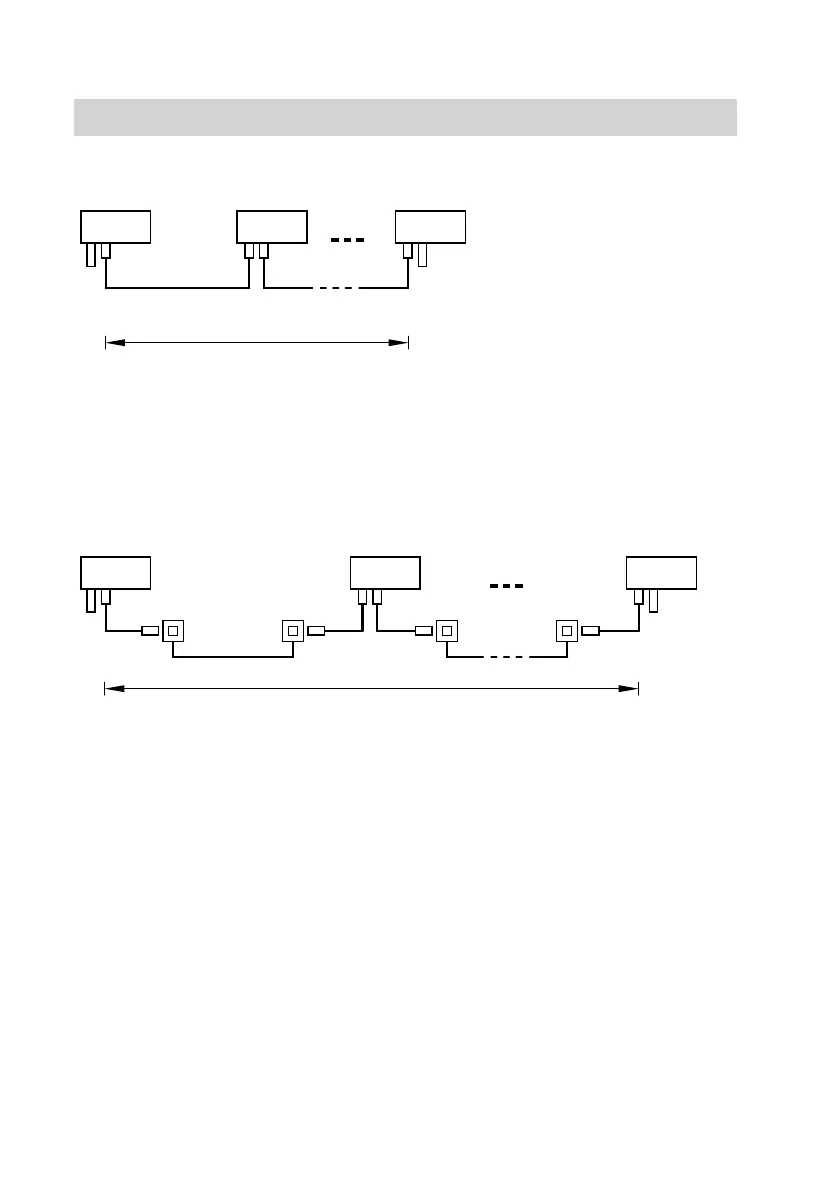

Connection with on-site cable and LON plug
C
A A
B
E
C
E
F
≤ 900 m
D D
D
D
Routing distance
≤
900 m (with LON plug)
A
Vitotronic control unit
B
Vitogate 200, type EIB
C
Terminator
D
LON plug
E
On-site cable
F
Up to 99 subscribers
Connection with LON cable, on-site cable and LON socket
≤ 900 m
F
C
D
C
D D D
E
F F
F
E
A A
G
B
Routing distance
≤
900 m (with LON sockets)
A
Vitotronic control unit
B
Vitogate 200, type EIB
C
Terminator
D
LON cable, 7 m long
E
On-site cable
F
LON sockets
G
Up to 99 subscribers
