PLUMBING CODES
All plumbing must be completed in accordance with
national, state and local plumbing codes.
AIR GAP REQUIREMENTS

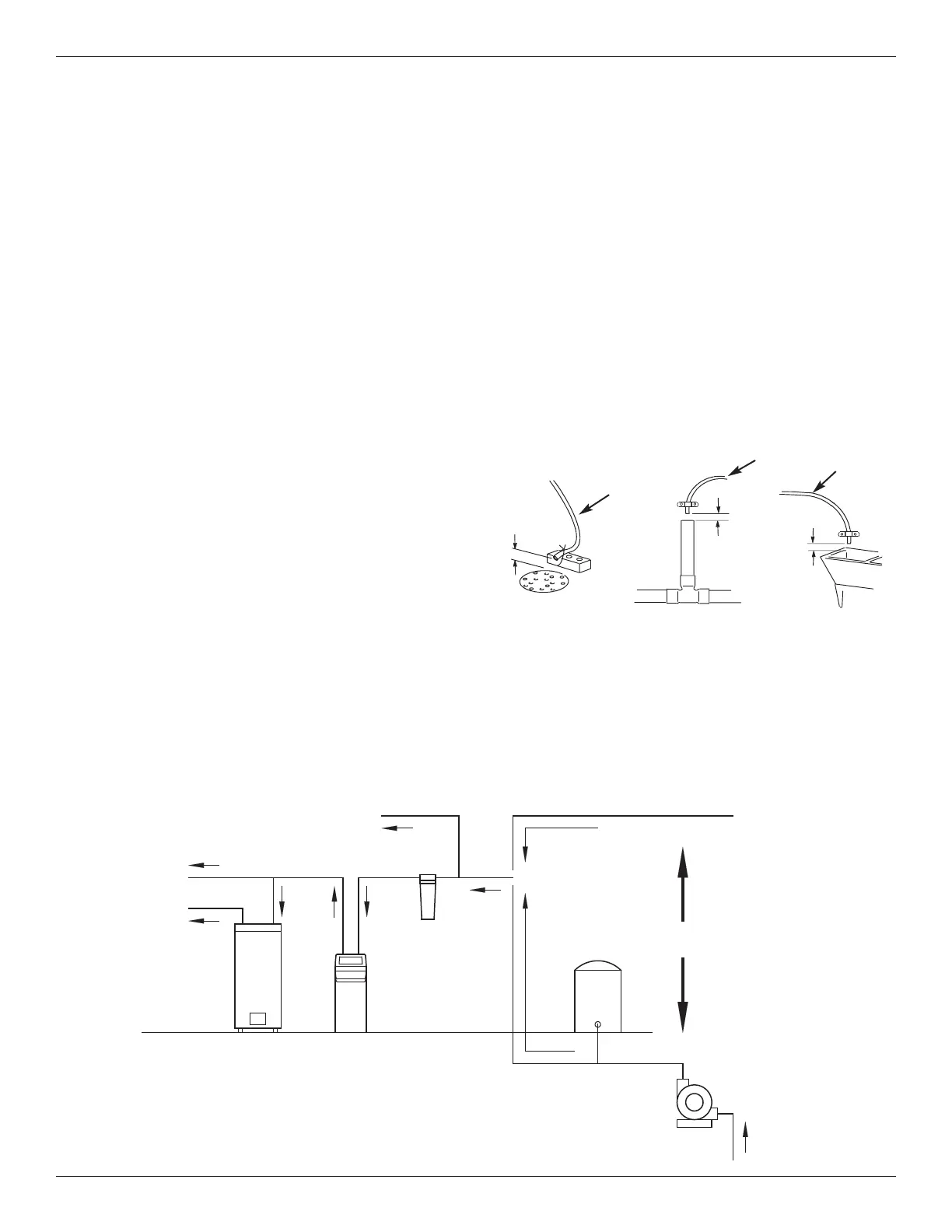

A drain is needed for recharge water (See Figure 2). A
floor drain, close to the water softener, is preferred. A
laundry tub, standpipe, etc. are other drain options.
Secure valve drain hose in place. Leave an air gap of
4 cm between the end of the hose and the drain. This
gap is needed to prevent backflow of sewer water into
the water softener. Do not put the end of the drain
hose into the drain.
LAUNDRY TUBSTANDPIPE
4 cm
air gap
FLOOR DRAIN
FIG. 2
4 cm
air gap
Drain
Hose
Drain
Hose
4 cm
air gap
LOCATION REQUIREMENTS
Consider all of the following when selecting an installa-
tion location for the water softener.
= Do not locate the water softener where freezing
t
emperatures occur. Do not attempt to treat water
over 49ºC. Freezing temperatures or hot water
damage voids the warranty.
= To condition all water in the home, install the water
softener close to the water supply inlet, and
upstream of all other plumbing connections, except
outside water pipes. Outside faucets should remain
on hard water to avoid wasting conditioned water
and salt.
= A nearby drain is needed to carry away recharge
drain water. Use a floor drain, laundry tub, sump,
standpipe, or other options (check your local
codes). See "Air Gap Requirements" and "Valve
Drain Requirements" sections.
= The water softener works on 24V DC electrical
power, supplied by a direct plug-in power supply
(included). Provide a nearby a 220-240V, 50 Hz
electrical outlet, in accordance with national and local
codes.
= Always install the water softener between the water
inlet and water heater. Any other installed water
conditioning equipment should be installed between
the water inlet and water softener (See Figure 3
below).
= Avoid installing in direct sunlight. Excessive sun
heat may cause distortion or other damage to non-
metallic parts.
Drain
Hose
THE PROPER ORDER TO INSTALL WATER TREATMENT EQUIPMENT
FIG. 3
Pressure
Tank
City Water Supply
Well Water Supply
Well
Pump
OR
Optional
Sediment
Filter
Water
Heater
Water
Softener
Untreated Water to
Outside Faucets
Hot Water
to House
Cold Water
to House
Installation Requirements
