Viewpro Q30T - Page 9

-7-
1 pitch up
2 pitch stop
3 pitch down
We have protocol for
con tr ol the gi mb al
and camera, please
contact our technical
s u p p o r t f o r de t ai l
doc.

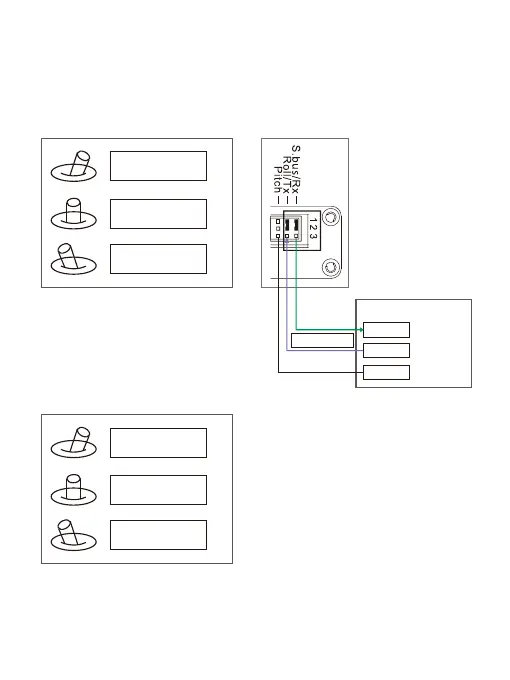

USER BOARD / GPS module
TX
GND
RX
TTL 9600/8/1/N
1 Yaw right
2 Yaw stop
3 Yaw left
S.bus/Rx: connect to Rx2 for track function.
Roll/ Tx: connect to Tx2 for track function.
Pitch: PWM in, pitch control
