8

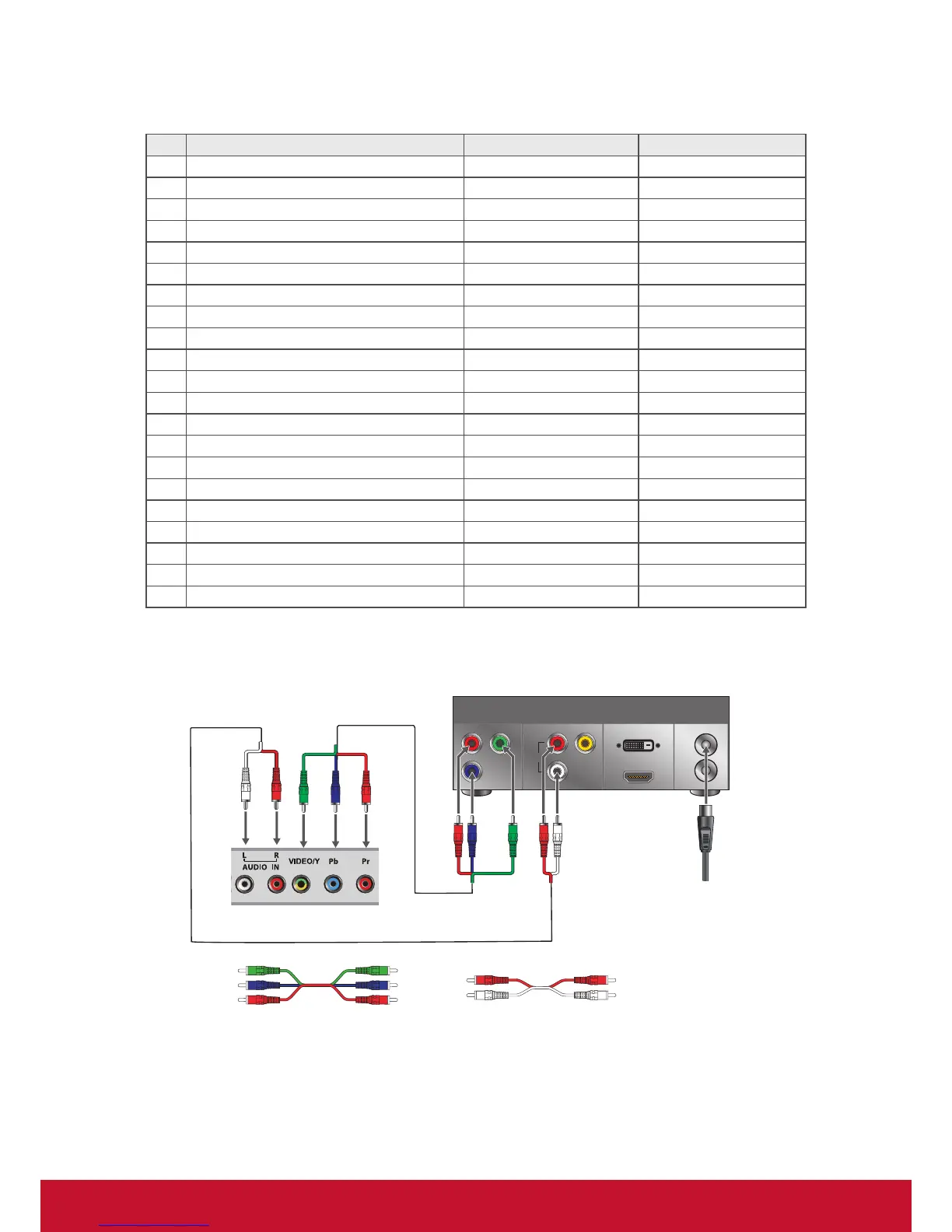

HDMI Timing Reference Chart
No. Mode HDMI DVI
1 VGA60 (640x480) Yes Yes
2 SVGA60 (800x600) Yes Yes
3 XGA60 (1024x768) Yes Yes
4 SXGA60 (1280x1024) Yes Yes
5 WXGA60 (1360x768) NA NA
6 1280 x 800 NA NA
7 1440 x 900 Yes Yes
8 1680 x 1050 Yes Yes
9 1920 x 1080 Yes Yes
10 480i60 Yes Yes
11 576i50 Yes Yes
12 480P60 Yes Yes
13 576P50 Yes Yes
14 720P50 Yes Yes
15 720P60 Yes Yes
16 1080I50 Yes Yes
17 1080I60 Yes Yes
18 1080P50 Yes Yes
19 1080P60 Yes Yes
20 1080P24 Yes NA
21 1080P30 NA NA
YPbPr or Component Connection
Rear side of the display
HD cable box /
HD satellite box
CATV / Satellite
antenna cable
Audio cable
Component cable
Component cable
Audio cable
COMPONENT
VIDEO OUT
Pr Y
VIDEO
DVI-HDTV OUT
HDMI OUT
OUT
IN
AUDIO
L
R
Pb
LINE OUT
Note:
YPbPr provides better quality than the AV connection.
