ViewSonic CDM4300R - Page 35

27

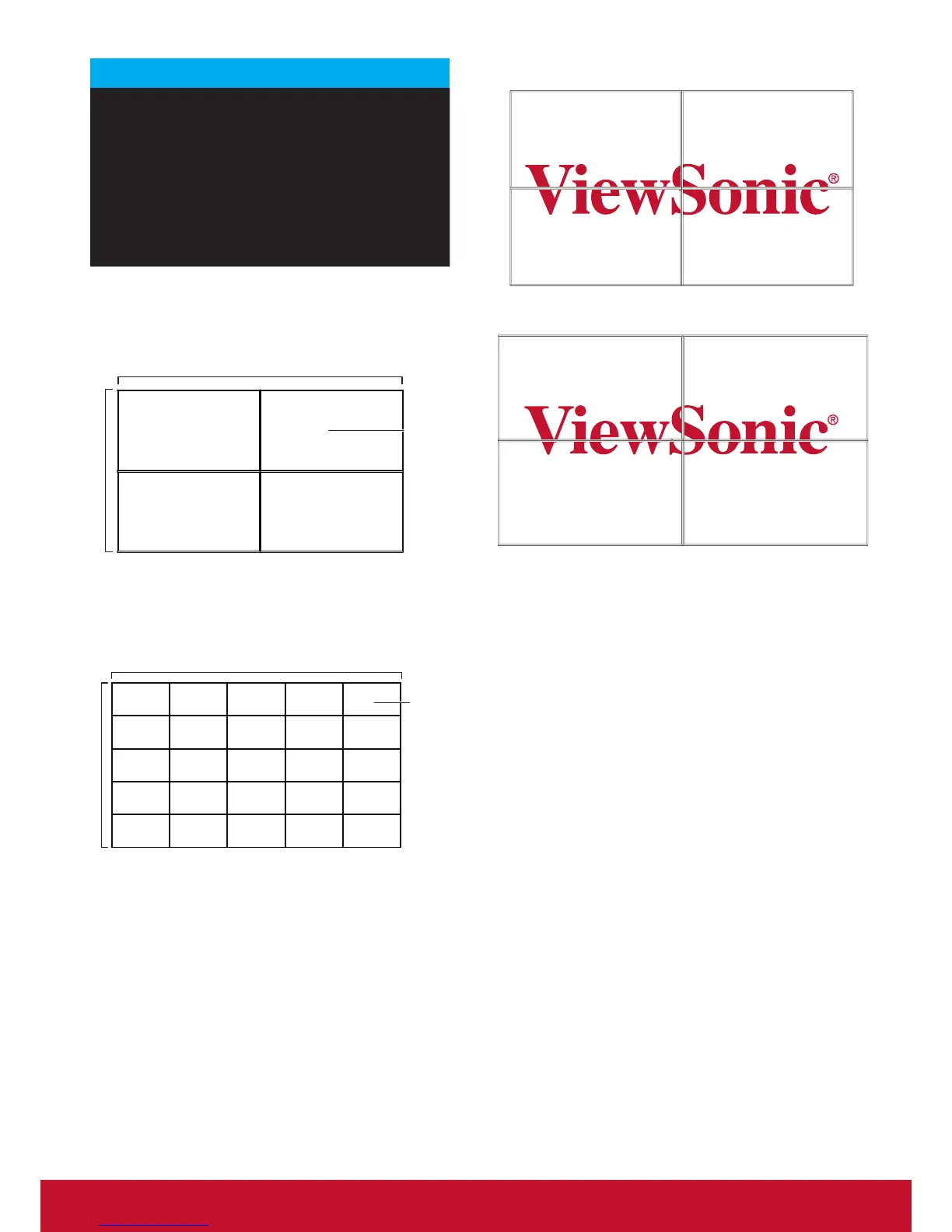

Tiling
H monitor

1

V monitor

1

Position

1

Frame comp.

No

Enable

No

Switch on delay

Off

Example: 2 x 2 screen matrix (4 displays)
H monitors = 2 displays
V monitors = 2 displays
1 2
3 4
H MONITORS
V MONITORS
Position
Example: 5 x 5 screen matrix (25 displays)
H monitors = 5 displays
V monitors = 5 displays
1 2
6 7
3 4
8 9
5
10
11 12 13 14 15
16 17 18 19 20
21 22 23 24 25
H MONITORS
V MONITORS
Position
• {H monitors} - Select the number of
displays on the horizontal side.
• {V monitors} - Select the number of
displays on the vertical side.
• {Position} - Select the position of this
display in the screen matrix.
• {Frame comp.} - Choose to turn the frame
compensation function on or off. If selected
{Yes}, the display will adjust the image to
compensate for the width of the display
bezels in order to accurately display the
image.
Frame comp. - Yes
Frame comp. - No
• {Enable}: Choose to enable or disable
the Tiling function. If enabled, the display
will apply the settings in {H monitors}, {V
monitors}, {Position}, and {Frame comp.}.
• {Switch on delay}: Set the power-on
delaying time (in seconds). The default
option {Auto} allows a sequential powering-
on for each display by their ID number when
multiple displays are connected.
The options are:{Off/Auto/2~255}
NOTE: The Tiling function will be disabled when
the PIP enabled.
Off Timer
Set automatically power off time (in hours).
