ViewSonic EP5540T User Manual

36

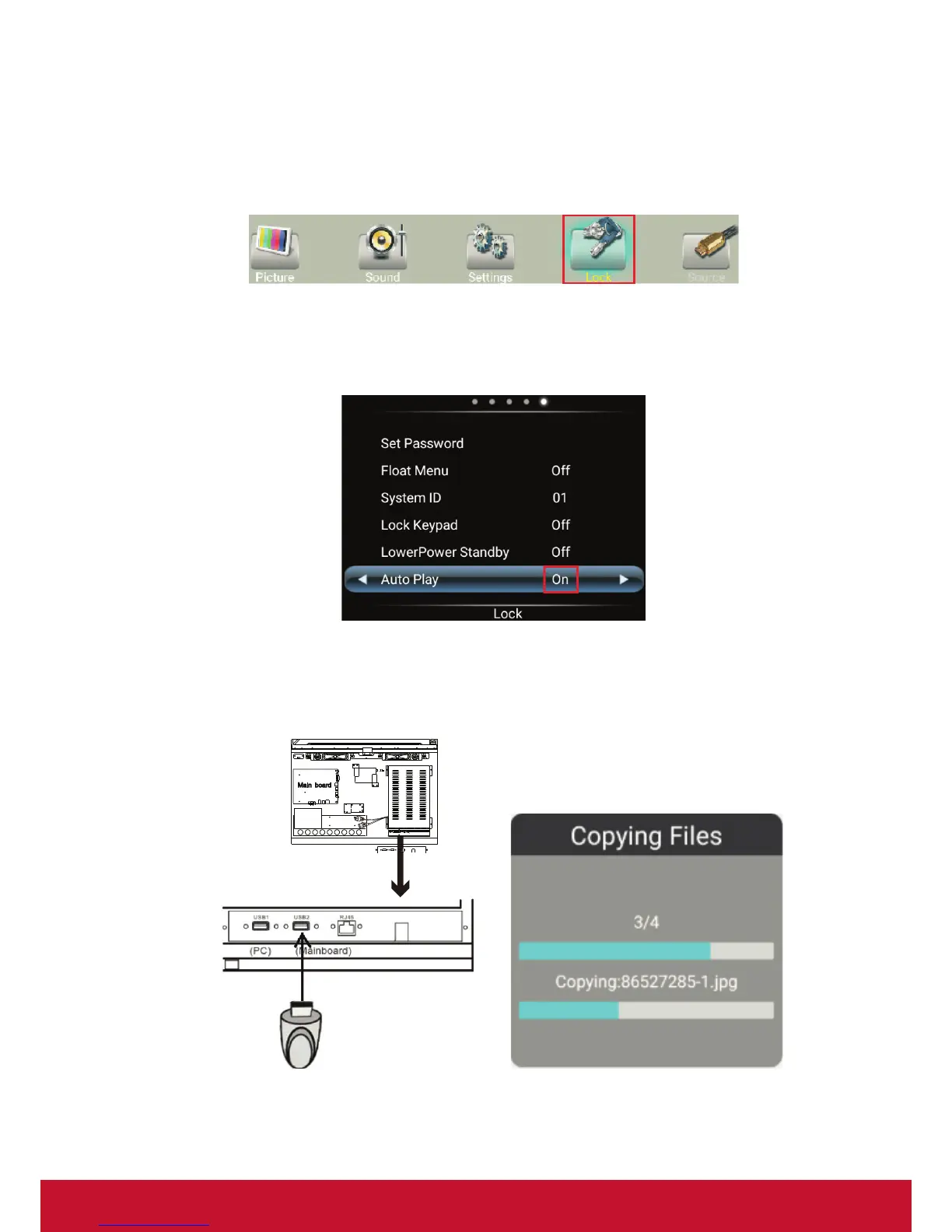

9. Using Auto Play
1. Copy media content (see page 24 for supported media format) to the root directory of a USB Flash drive.
USB Flash drive should be formatted as FAT32.
2. Using the ePoster remote control, press the Menu button.
3. Using the arrow buttons on the remote scroll to the right and select the Lock option.
4. Press OK to enter Lock menu
5. When prompted enter use the remote to enter the password (default standard user password is “0000”
and super user is “2580”).
6. Scroll down to Auto Play and change the option to On.
7. Press Exit to close Menu screen
8. Plug the USB drive into the USB2 (Mainboard) input of the ePoster. Files will be copied to the ePoster
internal memory automatically.
Main board

ViewSonic EP5540T Specifications

General

Package depth	618 mm
Package width	983 mm
Package height	2016 mm
Package weight	85000 g
RMS rated power	20 W
Number of built-in speakers	2
DVI port	No
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	4
Ethernet LAN (RJ-45) ports	1
Panel life	30000 h
Response time	6 ms
Display diagonal	54.6 \
Display brightness	400 cd/m²
Display technology	LED
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Contrast ratio (typical)	1200:1
Cables included	AC
Internal memory	2 GB
Computer system type	System on Chip (SoC)
Internal storage capacity	16 GB
Operating system installed	Android 5.0.1
Purpose	Universal
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Product color	Black
Product design	Interactive flat panel
Placement supported	Indoor
Certification	FCC/cTUVus/BSMI
AC input voltage	100-240 V
Power consumption (standby)	0.5 W
Power consumption (typical)	117 W

Weight and Dimensions

Depth	450 mm
Width	820 mm
Height	1900 mm
Weight	70000 g
