D. Fixture Function Description.

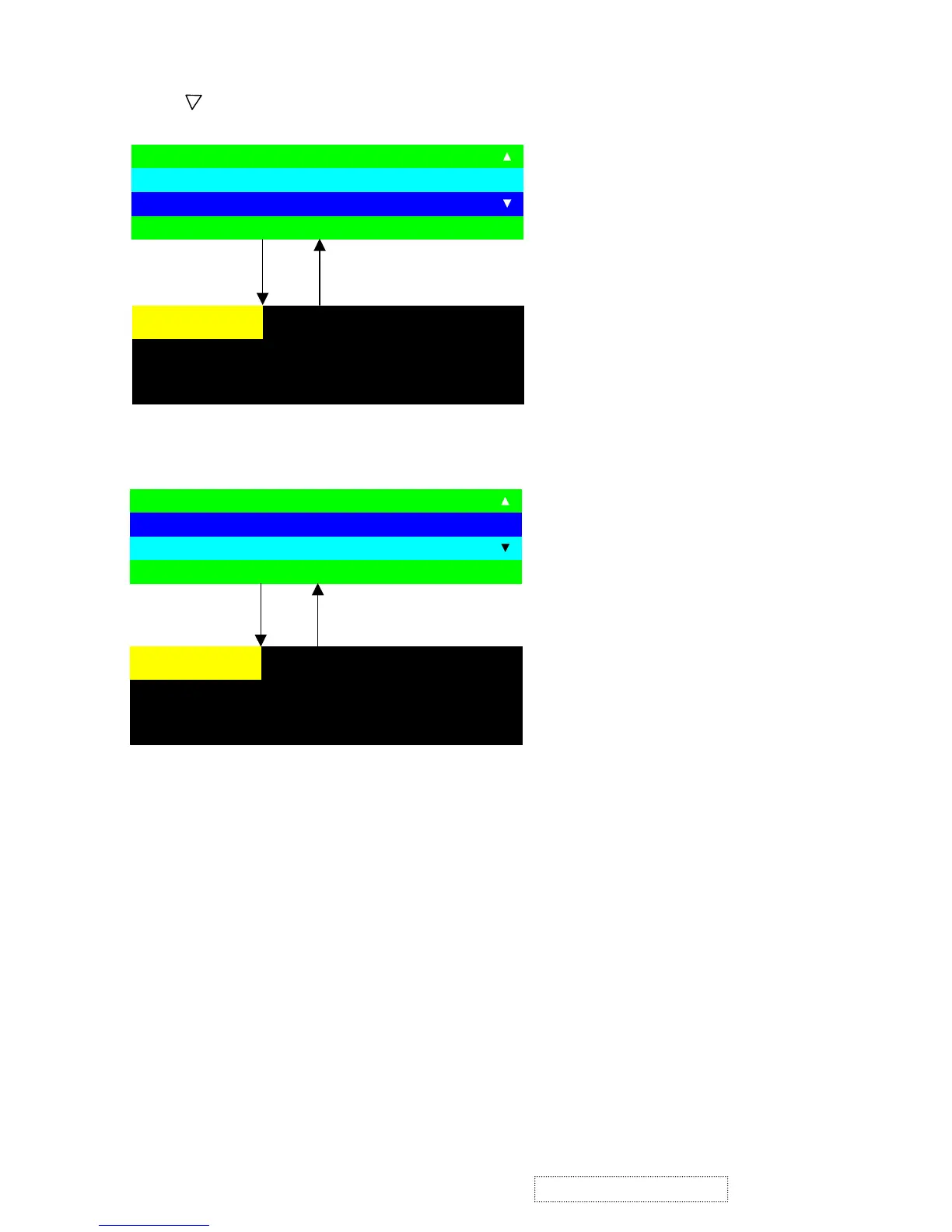

1. Push “ ” & “-” key, then turn on monitor, and select “FACTOTY COLOR” or “FACTORY DEFLECTION” , the
OSD into service adjust.
TSELEC:2EXI :T1
FACTORY MENU H-0726-A
FACTORY COLOR
FACTORY DEFLECTION
RCUT GCUT BCUT
RGAIN GGAIN BGAIN
CONT BRIG 10
TSELEC:2EXI :T1
FACTORY MENU H-0726-A
FACTORY COLOR
FACTORY DEFLECTION
VGAIN VOFFSET VLIN
VLINBAL VFOCUS HLINEAR
240
HCG VCG
RCUT : R CUT Adjust
GCUT : G CUT Adjust
BCUT : B CUT Adjust
RGAIN : R GAIN Adjust
GGAIN : G GAIN Adjust
BGAIN : B GAIN Adjust
CONT : Contrast Adjust
BRIG : Brightnedd Adjust
VGAIN : Vertical gain adjust
VOFFSET : Vertical offset adjust
VLIN : Vertical linearity adjust
VLINBAL : Vertical linarity balance adjust
VFOCUS : Vertical focus adjust
HLINEAR : Horizontal linear adjust
HCG : Horizontal Convergence
VCG : Vertical Convergence
