9
3. Setting Up Your Display
Warning: For the safety of you and your unit, please do not connect to a power
supply before the external device is prepared.
3.1 Connecting an External Device
1. To display video via VGA cable.
• Connect a VGA cable (15-pin) from your external device to the VGA IN port
on the display.
• Connect an audio cable from the AUDIO OUT port on your external device to
the AUDIO IN port on the display.
• Connect a USB cable to the external device from the TOUCH OUT port of the
display.

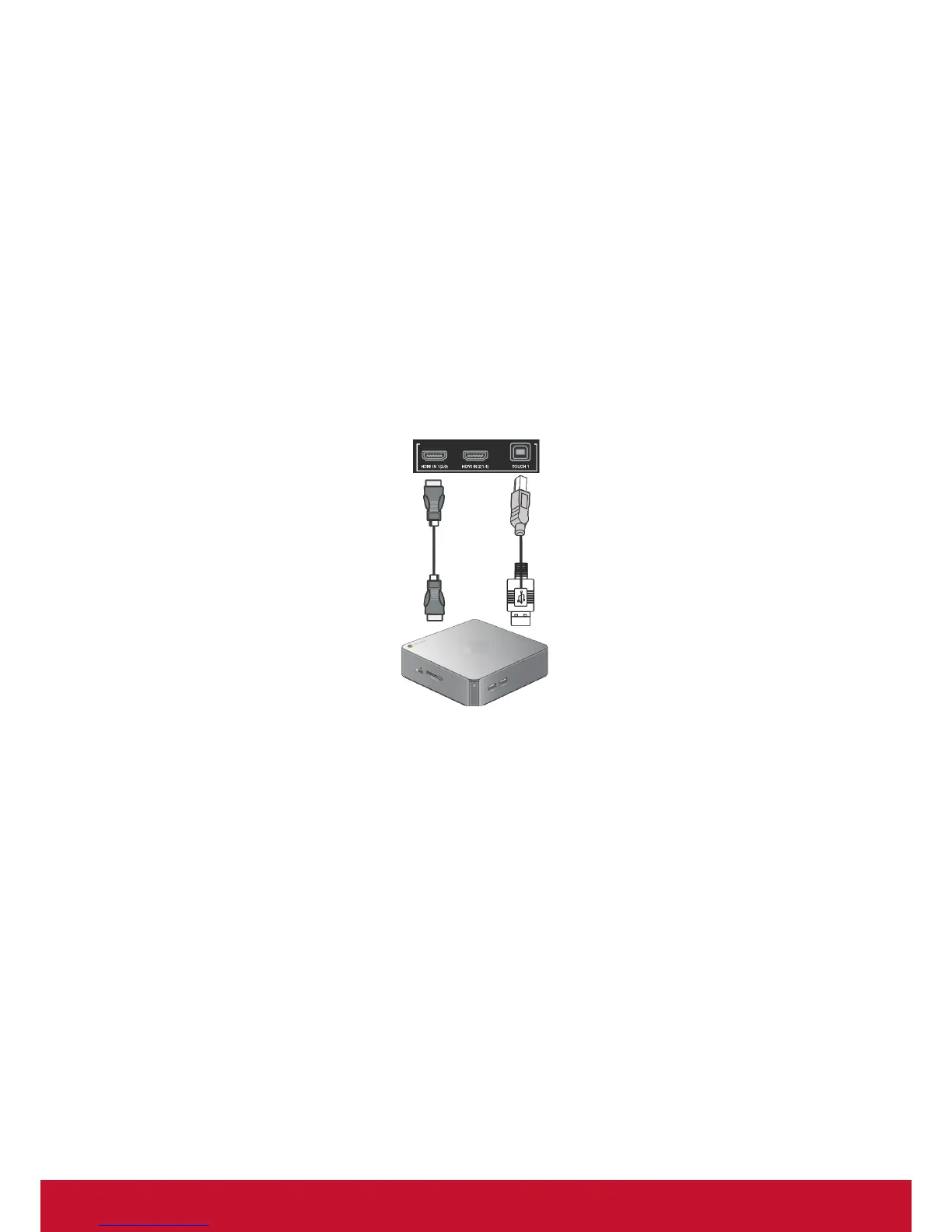

Chromebox
USB cable
HDMI cable
2. To display video via HDMI cable.
• Connect a HDMI cable from your external device to the HDMI IN port on the
display.
• Connect a USB cable to the external device from the TOUCH OUT port of the
display.
To Next Page
