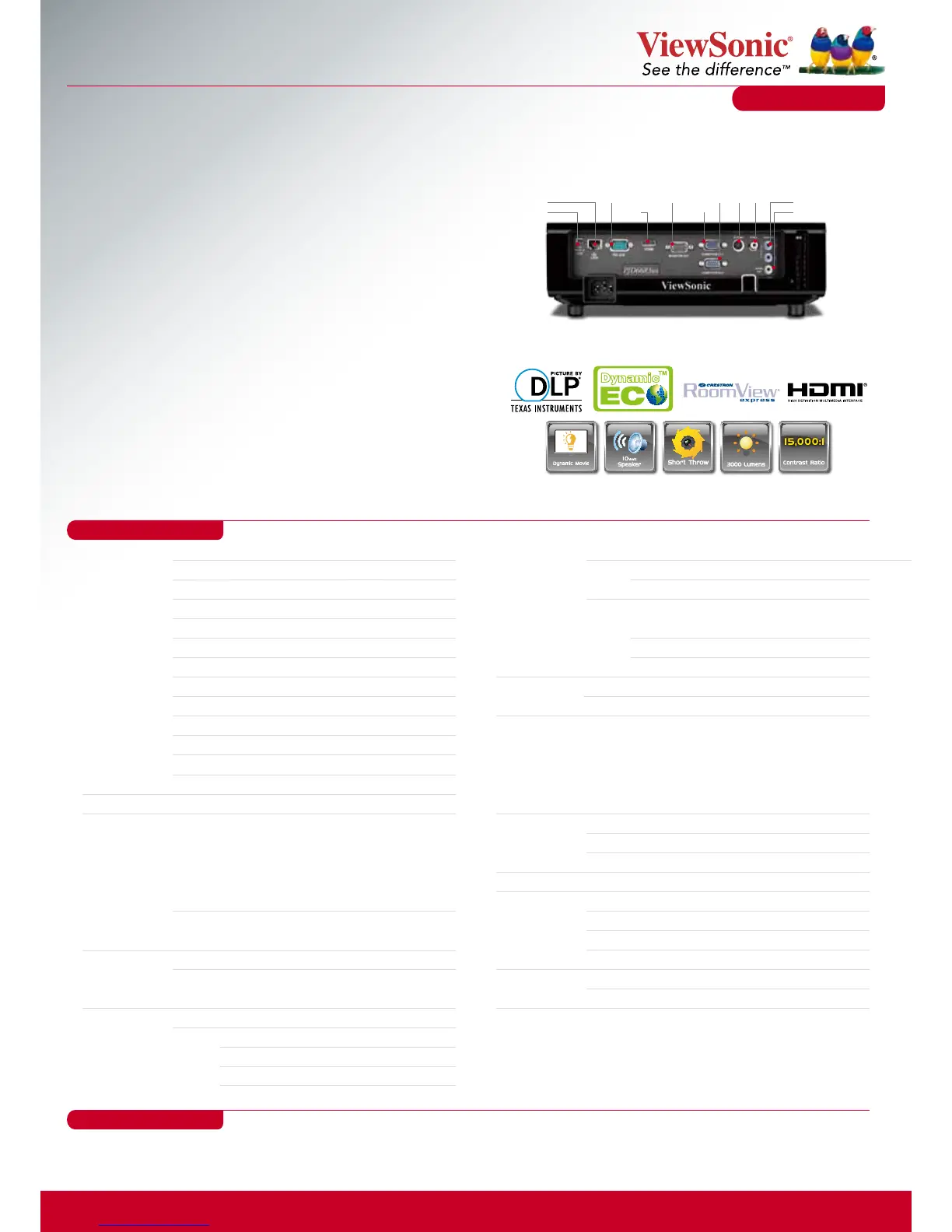

ViewSonic PJD6683ws User Manual

Networkable WXGA Short Throw Projector
Facilitate Teaching Scenario with E-Learning
Specications
What’s in the box?
Display
Technology
Audio
Input Signal
Compatibility
Connectors
Display Chipset
Resolution
Lens
Keystone Correction
Projection Size
Projection Distance
Throw Ration
Lamp
Lamp Life (Normal / Eco Mode)
Brightness
Contrast Ratio (Max.)
Aspect Ratio
Color Wheel
Speaker
Computer and Image
Frequency
PC
MAC (
*
May Require
A MAC Adaptor)
Input RGB
HDMI
Component
S-Video
Composite
TI DMD 0.65"
1280 (H) x 800 (V)
Fixed
+/- 40° (Vertical)
30'' ~ 300'' Diagonal
0.32 ~ 3.16 meters
0.5 (95"±3% @ 1m)
OSRAM 240W
3,500 / 5,000 hours
3,000 lumens
15,000:1 (With DynamicEco
TM
mode)
16:10
6-Seg RGBCYW
10W *1
NTSC M (3.58 MHz), 4.43MHz
PAL (B, D, G, H, I, M, N, 60)
SECAM (B, D, G, K, K1, L)
480i and 576i, 480p and 576p
720p,1080i, 1080p
Horizontal: 31 ~ 100 kHz
Vertical: 48 ~ 120Hz
1024 x 768 @ 60 Hz (Native)
Support up to 1600 x 1200
@ 60Hz (Same as in PC)
DB-15 *2
HDMI 1.3 *1
Shared with RGB *2
Mini-Din 4 pin *1
RCA-1 *1
Connectors
Power
Languages
Operating
Environment
Noise Level
Dimension
Weight
Regulations
Input Audio- in
Output RGB
Audio
I/O USB
RS232
LAN
Voltage
Consumption
Temperature
Humidity
Altitude
Normal / Eco Mode
Physical (mm)
(W × D × H) (inch)
Package (mm)
(W × D × H) (inch)
Net
Gross
3.5mm mini-mono jack *2
DB-15 *1
3.5 mm mini-mono jack *1
Mini type B *1 (For mouse control
& rmware upgrade)
DB-9 *1
RJ- 45 *1
100V ~ 240Vac 50 / 60Hz
350W ( Max.); 260W (Min.)
English/ French / Germany/ Italian/
Spanish/ Russian/ Traditional Chinese /
Simplified Chinese / Japanese / Korean/
Swedish / Dutch / Turkish / Czech /
Portuguese / Thai / Polish/ Finnish
0° ~ 40° C / 32° ~ 104° F
10 ~ 90% (Non-condensation)
0 ~ 6,000 feet
35dB / 29dB
294 x 242 x 84
11.57” x 9.53 ” x 3.31”
360 x 192 x 380
14.17” x 7.56” x 14.96”
6.6lbs / 2.99kg
9.9lbs / 4.5kg
CB, UL, cUL, FCC (including
ICES-003), CE, Argentina, NOM,
GS, GOST-R, SASO, Ukraine,
PSB, C-Tick, Korean-KC, CCC,
CECP, WEEE, RoHS
1.8 Meter Power Cord (Black) *1, 1.8 Meter VGA Cable (Black) *1, Remote Control (AAA Battery) *1, Quick Start Guide (Short Version) *1,
ViewSonic DVD Wizard (With User Manual) *1, Lens Cap *1, Warranty Card & Sticker (Only For China) *1
Crestron RoomView
®
Network management system
Crestron RoomView
®
provides an advanced, real-time alert system
that sends status updates to your PC including power, lamp life,
and unit presence to simplify maintenance efforts. It also automates
device functions such as power on/off, and broadcasts urgent
messages via closed captioning. With smart network management,
you’ll be able to save time, save money, and save maintenance effort.
Advanced Dynamic Movie mode
With Dynamic Movie mode, the projector’s lamp automatically dims
to strengthen and reveal ne details when displaying darker images.
When displaying bright images, the lamp adjusts to create brilliant
and bright whites. Dynamic Movie mode enhances image clarity,
increases lamp life, reduces power consumption, and ambient noise.
Perfect audio performance
Incorporated with a 10W speaker, the PJD6683ws enriches presentation contents
with high volume audio output and negates the need for external speakers.
Audio outType B USB
Audio inLAN
Monitor out VideoS-VideoRS-232 Computer in 2
Computer in 1
HDMI
05/07/12 V5
ap.viewsonic.com
*Specications are subject to change without notice.
PJD6683ws

ViewSonic PJD6683ws Specifications

General

Color Brightness	3000 lumens
White Brightness	3000 lumens
Native Resolution	1280 x 800
Contrast Ratio	15, 000:1
Aspect Ratio	16:10
Throw Ratio Range	0.5:1
3D	yes
Maximum Screen Size	300 inches
Minimum Distance	1 feet
Maximum Distance	10.5 feet
Video Input	component video, hdmi, usb, s-video
Inputs	hdmi
OS Compatibility	mac, windows

Weight and Dimensions

Depth	9.5 inches
Height	3.3 inches
Width	11.6 inches
Net Weight	6.6 pounds
