ViewSonic
July 2000 - Version 1.0
Service Manual
VG181

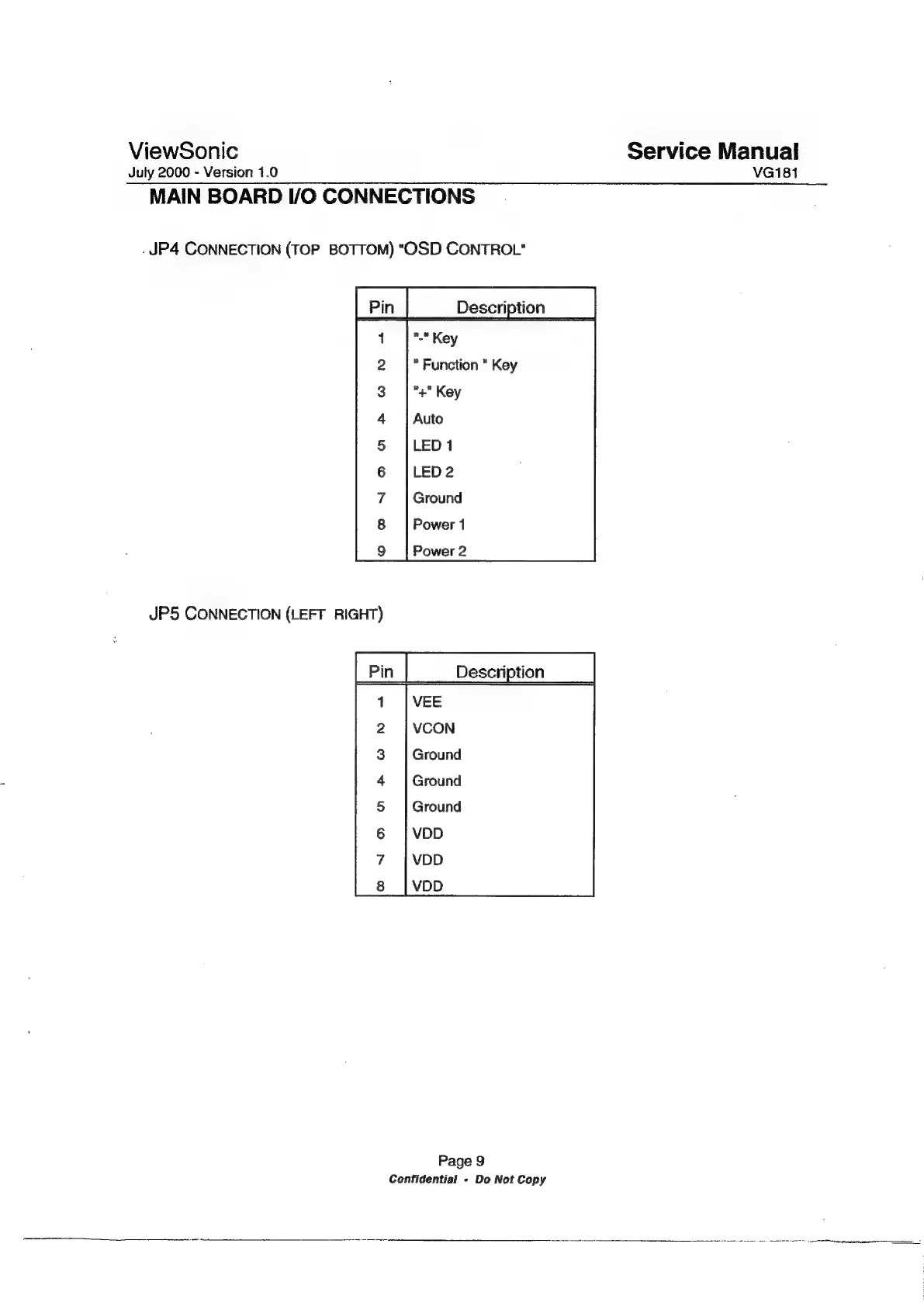

MAIN BOARD I/O CONNECTIONS
. JP4 CONNECTION (TOP BOTTOM) "OSD CONTROL"
| in Description —_|
—)
oon om a & WO HY
JP5 CONNECTION (LEFT RIGHT)
au Key
” Function " Key
"+" Key
Auto
LED 1
LED 2
Ground
Power 1
Power 2
VCON
Ground
Ground
Ground
VDD
VDD
VDD
Page 9
