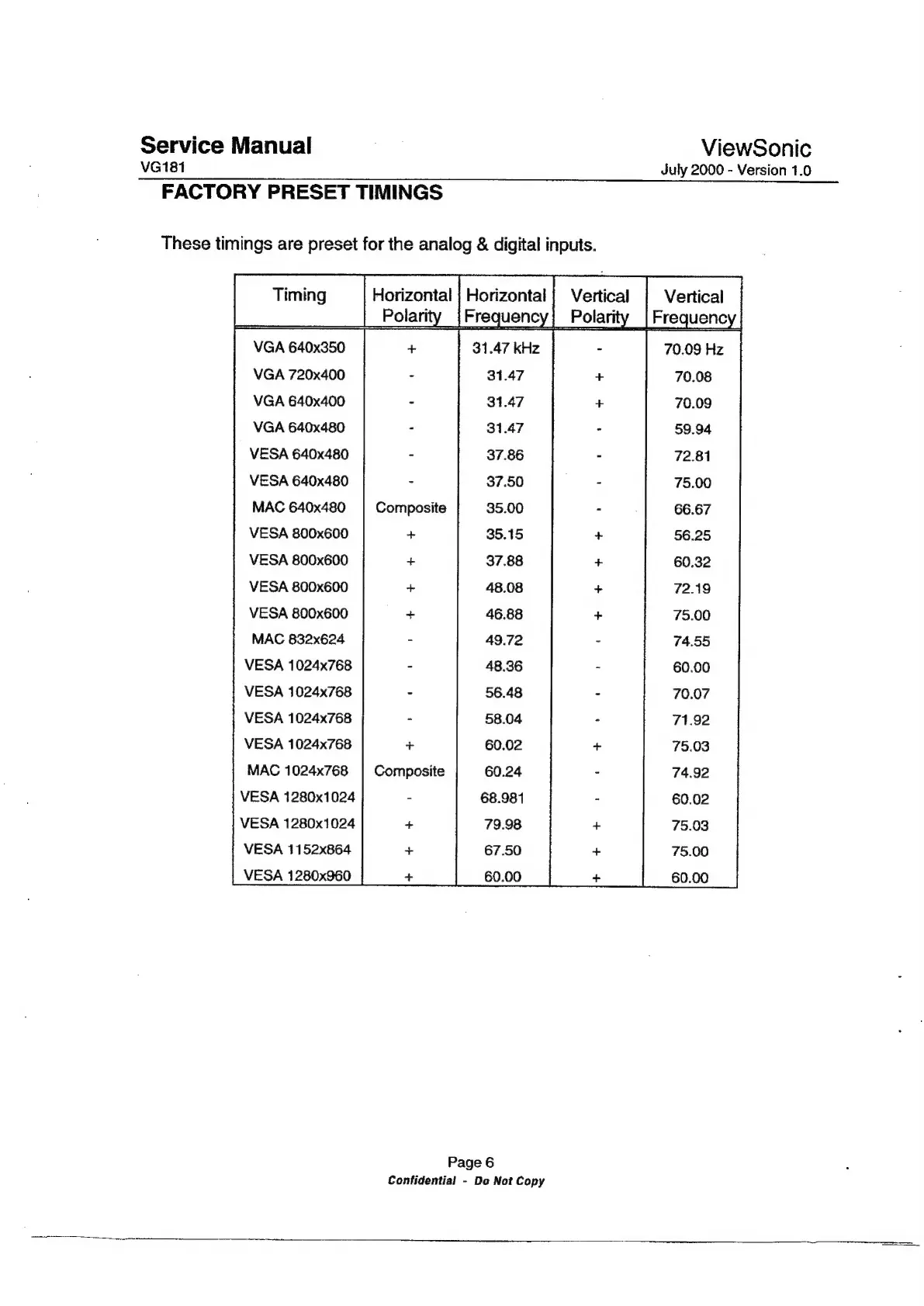

FACTORY PRESET TIMINGS
These timings are preset for the analog & digital me
Timing Horizontal | Horizontal | Vertical Vertical
________—|_Polarity {Frequency} Polarity | Frequency |
VGA 640x350 31.47 kHz 70.09 Hz
VGA 720x400 31.47 70.08
VGA 640x400 31.47 70.09
VGA 640x480 31.47 59.94
VESA 640x480 37.86 72.81
VESA 640x480 37.50 75.00
MAC 640x480 35.00 66.67
VESA 800x600 35.15 56.25
VESA 800x600 37.88 60.32
VESA 800x600 48.08 72.19
VESA 800x600 46.88 75.00
MAC 832x624 49.72 74.55
VESA 1024x768 48.36 60.00
VESA 1024x768 56.48 70.07
VESA 1024x768 58.04 71.92
VESA 1024x768 60.02 75.03
MAC 1024x768 60.24 74.92
VESA 1280x1024 68.981 60.02
VESA 1280x1024 79.98 75.03
VESA 1152x864 67.50 75.00
VESA 1280x960 60.00 60.00
Composite
+
+
+
+
Composite
Page 6
