ViewSonic VG181 - Page 64

Service Manual
VG181

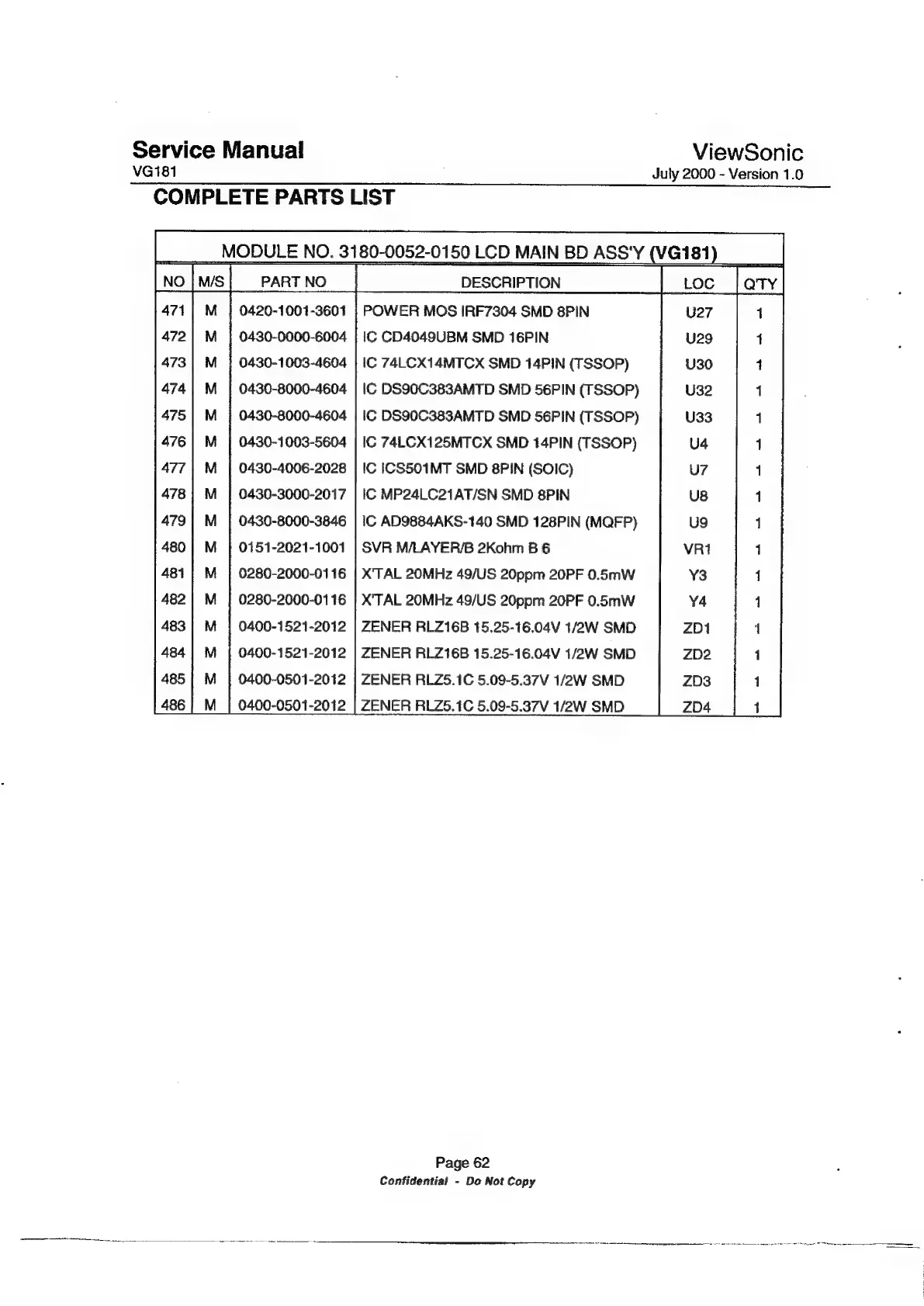

COMPLETE PARTS LIST
ViewSonic
July 2000 - Version 1.0
MODULE NO. 3180-0052-0150 LCD MAIN BD ASS'Y (VG181
Iwolws|
parrno
|
_pescription
|
toc
[ary
0420-1001-3601
0430-0000-6004
0430-1003-4604
0430-8000-4604
0430-8000-4604
0430-1003-5604
0430-4006-2028
0430-3000-2017
0430-8000-3846
0151-2021-1001
0280-2000-01 16
0280-2000-0116
0400-1521-2012
0400-1521-2012
0400-0501-2012
0400-0501-2012
POWER MOS IRF7304 SMD 8PIN
IC CD4049UBM SMD 16PIN
IC 74LCX14MTCX SMD 14PIN (TSSOP)
IC DS90C383AMTD SMD 56PIN (TSSOP)
IC DS90C383AMTD SMD 56PIN (TSSOP)
IC 74LCX125MTCX SMD 14PIN (TSSOP)
IC ICS501MT SMD 8PIN (SOIC)
IC MP24LC21AT/SN SMD 8PIN
IC AD9884AKS-140 SMD 128PIN (MQFP)
SVR M/LAYER/B 2Kohm B 6
X'TAL 20MHz 49/US 20ppm 20PF 0.5mW
X'TAL 20MHz 49/US 20ppm 20PF 0.5mW
ZENER RLZ16B 15.25-16.04V 1/2W SMD
ZENER RL2Z16B 15.25-16.04V 1/2W SMD
ZENER RLZ5.1C 5.09-5.37V 1/2W SMD
ZENER RLZ5.1C 5.09-5.37V 1/2W SMD
Page 62
Confidential - Do Not Copy
