2
Side
⑧
⑨
①
②
③ ④
⑤ ⑥
⑦
Left RightTop
Bottom

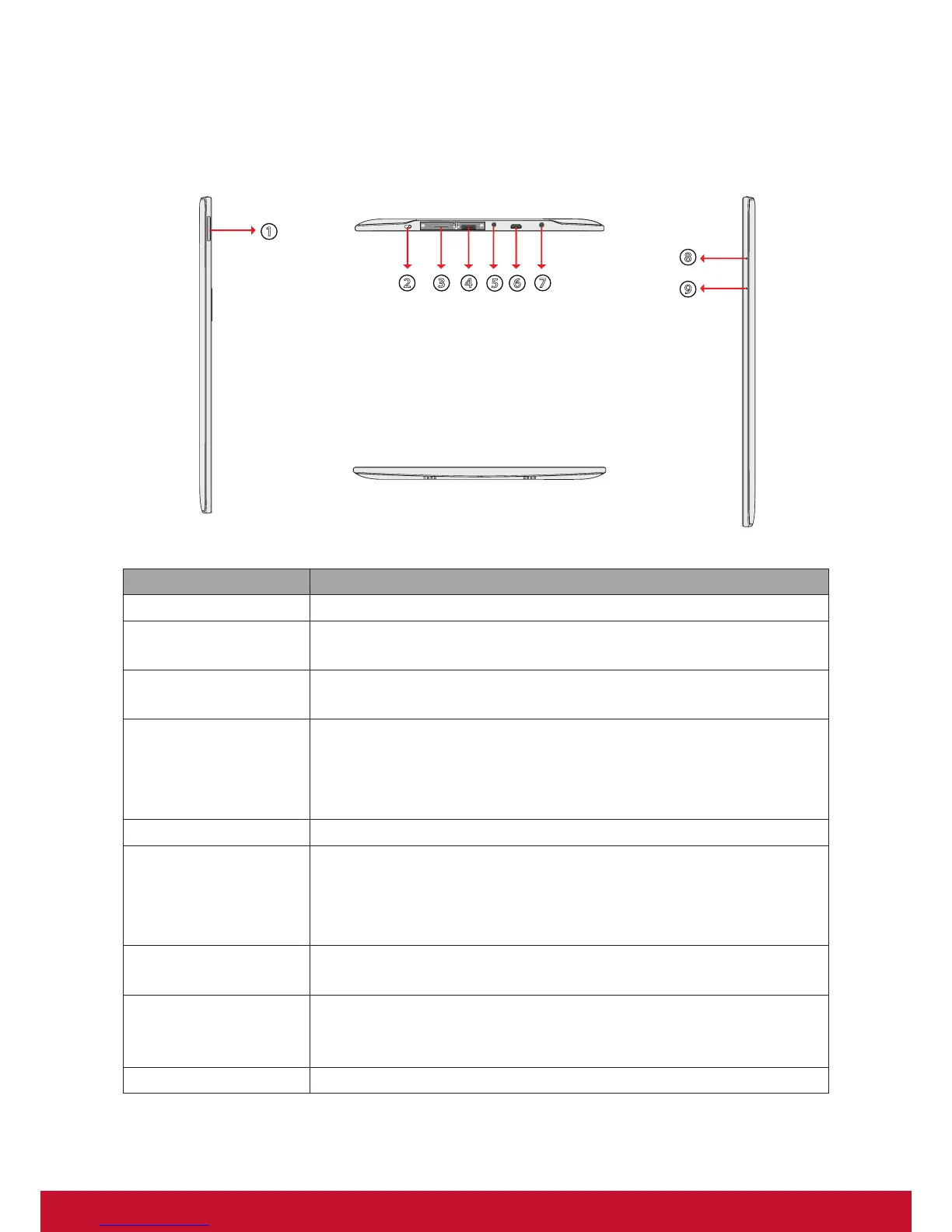

Part Name Description
Volume button Press to adjust the volume (+Volume up/-Volume down).
Power button Press and hold the power button for 2-3 seconds to power on
your device.
Micro-SD Card slot Micro-SD memory card slot compatible up to 32GB SD and
SDHC.
Mini-HDMI port With a Mini HDMI to HDMI cable (Not included) connects an
optional to video and audio devices, such as television, or any
compatible digital or audio component that uses a HDMI
connection.
Audio output jack You can plug a headset which can listen to music.
Micro-USB port Connects peripherals such as mice, digital cameras and MP3
players that use the USB 2.0
Interface. A male Micro USB to female USB adaptor may be
required (Not included).
Power jack Connects AC power supply to power the device and charge the
battery.
Reset When system abnormal or inoperative, insert a thin, straight
object (such as a paper clip) in the manual reset hole to perform
a soft reset on your device.
Microphone Receives sounds and voice for recording.
