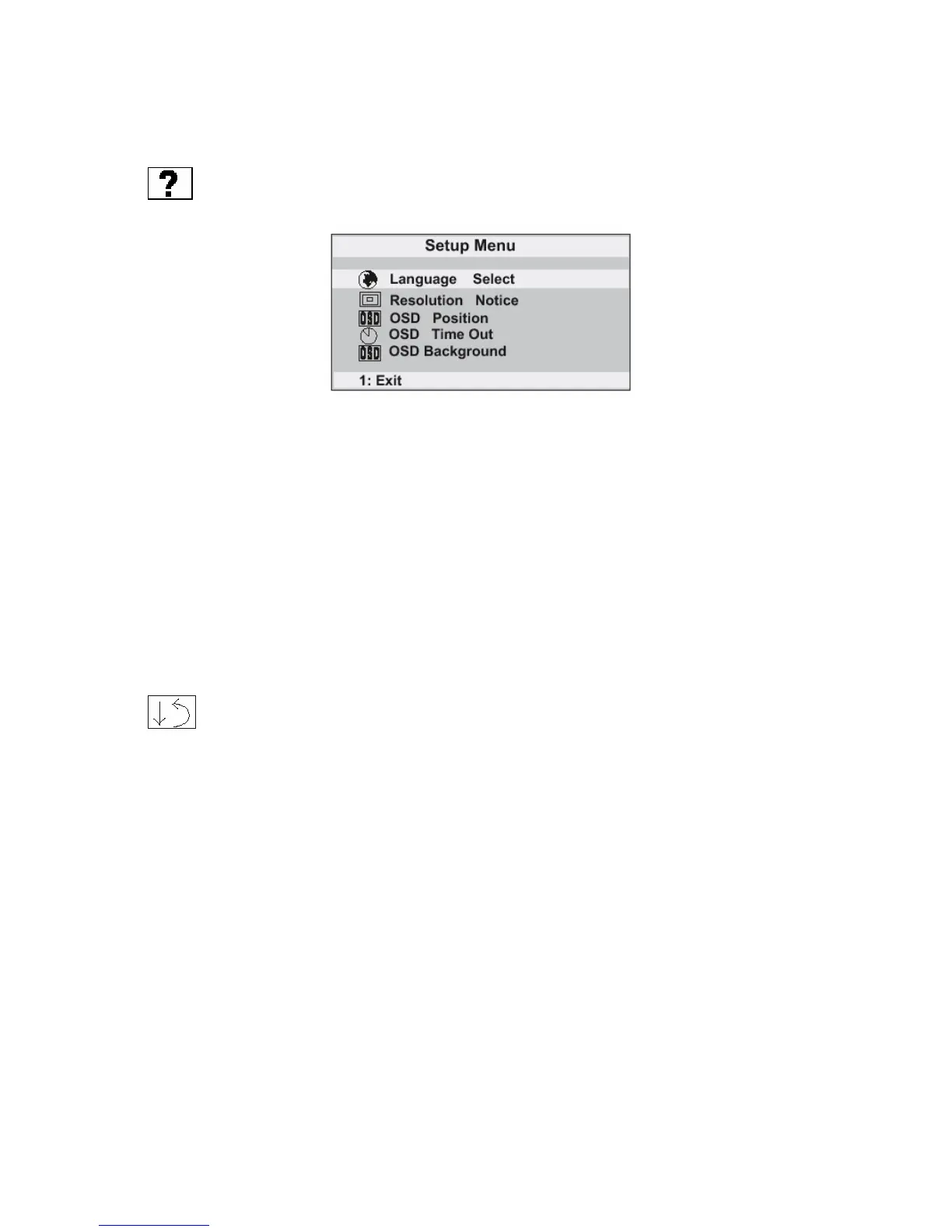

Setup Menu displays the menu shown below.
The Setup Menu controls are explained below:
Language allows you to choose the language used is the menus and control screens.
Resolution Notice displays the Resolution Notice menu, advises the optimal resolution to use.
OSD Position allows you to move the on-screen display menus and control screens.
OSD Timeout sets the length of time an on-screen display screen is displayed. For
example, with a “15 second” setting, if a control is not pushed within 15 seconds, the
dis
p
la
y
screen disa
pp
ears.
OSD Background allows you to turn the On-Screen-Display background on or off.
Memory Recall returns adjustments to the original factory settings if the display is
o
p
eratin
g
in a factor
y
Preset Timin
g
Mode listed in this user
g
uide.
Exception: This control does not affect changes mode with the User Color
control, Lan
g
ua
g
e and Power Lock settin
g
.

ViewSonic VX715 Specifications

General

Response time	25 ms
Display diagonal	17 \
Display resolution	1280 x 1024 pixels
Vertical scan range	85 Hz
Horizontal scan range	82 kHz
Viewing angle, vertical	130 °
Viewing angle, horizontal	140 °
Display brightness (typical)	300 cd/m²
Panel mounting interface	100 x 100 mm
Power requirements	AC 110/230 V ( 50/60 Hz )
I/O ports	1 x VGA - 15 pin HD D-Sub (HD-15) 1 x DVI-D - 24 pin digital DVI
Compatibility	PC/Mac
Certification	TCO '03, FCC Class B certified, CE, MPR II, UL, TUV GS, VCCI, C-Tick, BSMI, ISO 9001, GOST, cUL, EPA Energy Star, GS, ISO 13406-2, NEMKO, NOM, PCBC, SASO, TCO '99, ISO 14001, CB, CCC, TUV Ergo, PSB
Market positioning	-
Power consumption (typical)	35 W
Operating relative humidity (H-H)	20 - 90 %
Maximum operating temperature range (T-T)	0 - 40 °C

Weight and Dimensions

Depth (without stand)	176 mm
Width (without stand)	388 mm
Height (without stand)	438 mm
Weight (without stand)	5000 g
