ViewSonic VX715 Service Manual

ViewSonic Corporation
11
5400K — Adds green to the screen image for a darker color.
5000K — Adds blue and green to the screen image for a darker.
User Color — Individual adjustments for red (R), green (G), blue (B).
1. To select color (R, G or B) press button [2].
2. To ad
j
ust selected color,
p
ress ▲ or ▼.
Important: If you select RECALL from the Main Menu when the product is set to a Preset
Timing Mode, colors return to the 6500K factory preset.

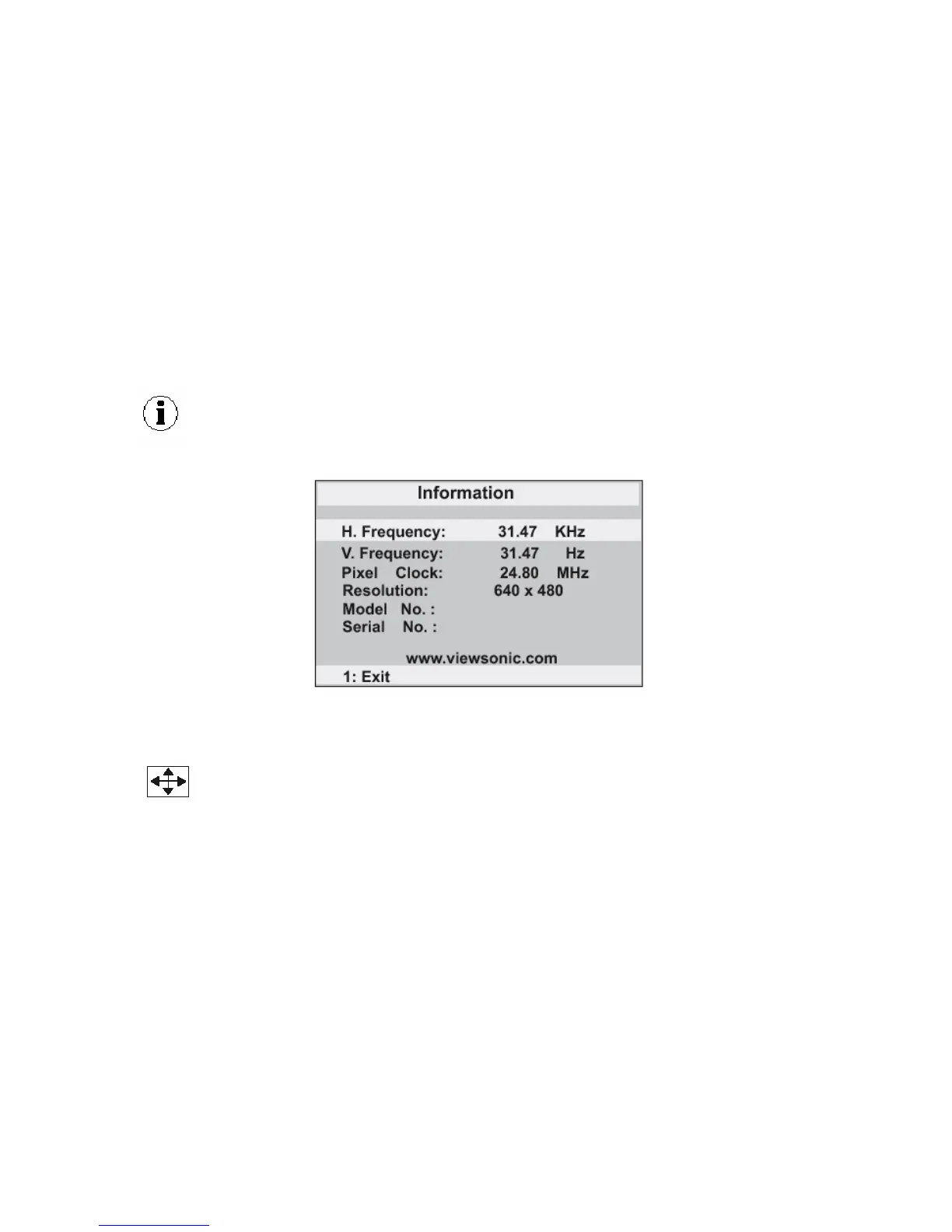

Information displays the timing mode (video signal input) coming from the graphics cards in your computer.
NOTE: VESA 1280×1024@60Hz (recommended) means that the resolution is 1280×1024 and the refresh
rate is 60Hz.
Manual Image Adjust controls are explained below:
Horizontal Position moves the screen image left or right.
Vertical Position moves the screen image up or down.
Horizontal Size adjusts the width of the screen image.
Fine Tune sharpens focus by aligning the illuminated text and or graphic characters.
Sharpness adjusts the clarity and focus of the screen image.

ViewSonic VX715 Specifications

General

Response time	25 ms
Display diagonal	17 \
Display resolution	1280 x 1024 pixels
Vertical scan range	85 Hz
Horizontal scan range	82 kHz
Viewing angle, vertical	130 °
Viewing angle, horizontal	140 °
Display brightness (typical)	300 cd/m²
Panel mounting interface	100 x 100 mm
Power requirements	AC 110/230 V ( 50/60 Hz )
I/O ports	1 x VGA - 15 pin HD D-Sub (HD-15) 1 x DVI-D - 24 pin digital DVI
Compatibility	PC/Mac
Certification	TCO '03, FCC Class B certified, CE, MPR II, UL, TUV GS, VCCI, C-Tick, BSMI, ISO 9001, GOST, cUL, EPA Energy Star, GS, ISO 13406-2, NEMKO, NOM, PCBC, SASO, TCO '99, ISO 14001, CB, CCC, TUV Ergo, PSB
Market positioning	-
Power consumption (typical)	35 W
Operating relative humidity (H-H)	20 - 90 %
Maximum operating temperature range (T-T)	0 - 40 °C

Weight and Dimensions

Depth (without stand)	176 mm
Width (without stand)	388 mm
Height (without stand)	438 mm
Weight (without stand)	5000 g
