ViewSonic VX715 Service Manual

ViewSonic Corporation
22
(6). Adjust the BLUE of color3 on factory window until chroma 7120 indicator reached the value B=100
(7). Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the
tolerance =100±5
D. Press reset key and Turn the Power-button “off to on” to quit from factory mode.
2. Geometry
1). Set cross-hatch pattern and preset timing as timing table listed.
2). Change to each mode in turn and wait for the monitor finish auto-alignment and save press before change to next
mode.
3). Until all of modes are adjusted, exit OSD menu and press PWR OFF to exit factory mode.

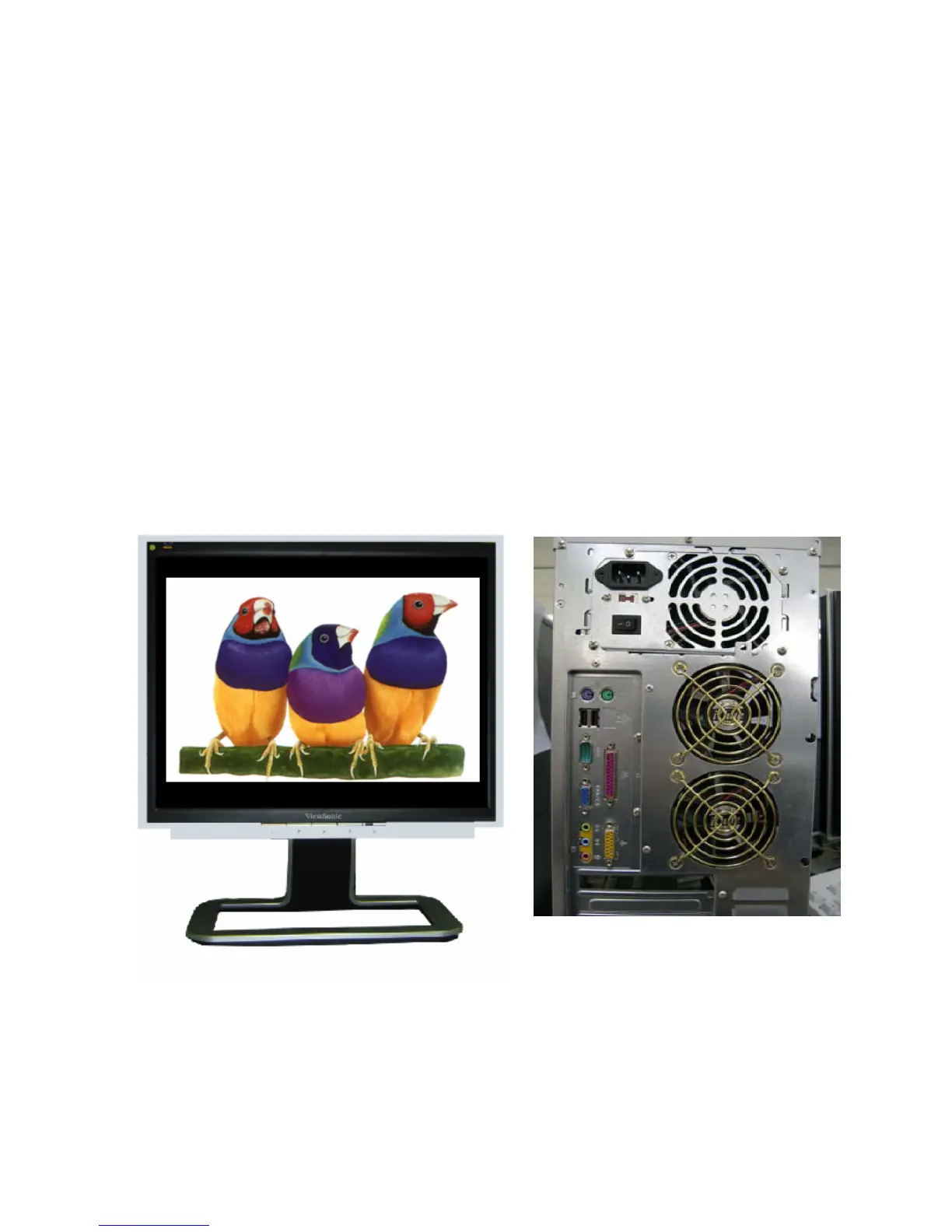

5.4 Firmware update procedure
1. Equipment needed:
- VX715
- PC (Personal computer)
- LPT cable
- 12V DC
- Firmware upgrade program

ViewSonic VX715 Specifications

General

Response time	25 ms
Display diagonal	17 \
Display resolution	1280 x 1024 pixels
Vertical scan range	85 Hz
Horizontal scan range	82 kHz
Viewing angle, vertical	130 °
Viewing angle, horizontal	140 °
Display brightness (typical)	300 cd/m²
Panel mounting interface	100 x 100 mm
Power requirements	AC 110/230 V ( 50/60 Hz )
I/O ports	1 x VGA - 15 pin HD D-Sub (HD-15) 1 x DVI-D - 24 pin digital DVI
Compatibility	PC/Mac
Certification	TCO '03, FCC Class B certified, CE, MPR II, UL, TUV GS, VCCI, C-Tick, BSMI, ISO 9001, GOST, cUL, EPA Energy Star, GS, ISO 13406-2, NEMKO, NOM, PCBC, SASO, TCO '99, ISO 14001, CB, CCC, TUV Ergo, PSB
Market positioning	-
Power consumption (typical)	35 W
Operating relative humidity (H-H)	20 - 90 %
Maximum operating temperature range (T-T)	0 - 40 °C

Weight and Dimensions

Depth (without stand)	176 mm
Width (without stand)	388 mm
Height (without stand)	438 mm
Weight (without stand)	5000 g
