ViewSonic VX715 Service Manual

ViewSonic Corporation
9
Do the following to adjust the screen image:
1.To display the Main Menu, press button: [1]
NOTE: All On View menus and adjustment screens disappear automatically after about 30 seconds.
2. To select a control you want to adjust, press ▲ or ▼ to scroll up or down the Main Menu.

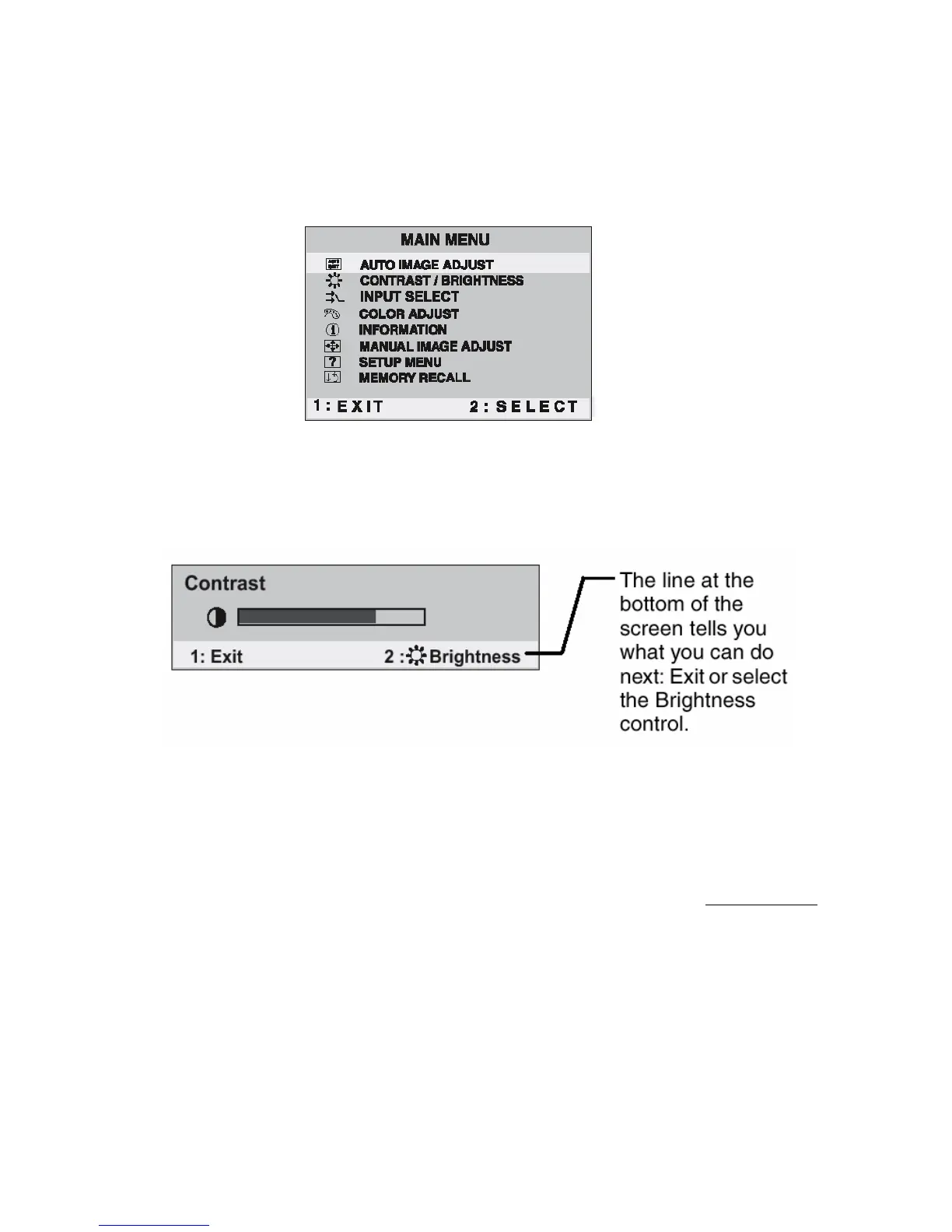

3. After the control is selected, press button [2]. A control screen like the one shown below appears.
4. To adjust the control press the up ▲ or down ▼ buttons.
5. To save the adjustments and exit the menu, press button [1] twice.
The following tips may help you optimize your display:
z Adjust your computer’s graphic card so that is outputs a video signal 1280×1024@60Hz to the LCD display.
z If necessary, make small adjustments using H-Position and V-Position until the screen image is completely visible.
(The black border around the edge of the screen should barely touch is illuminated “active area” of the LCD
display.)

ViewSonic VX715 Specifications

General

Response time	25 ms
Display diagonal	17 \
Display resolution	1280 x 1024 pixels
Vertical scan range	85 Hz
Horizontal scan range	82 kHz
Viewing angle, vertical	130 °
Viewing angle, horizontal	140 °
Display brightness (typical)	300 cd/m²
Panel mounting interface	100 x 100 mm
Power requirements	AC 110/230 V ( 50/60 Hz )
I/O ports	1 x VGA - 15 pin HD D-Sub (HD-15) 1 x DVI-D - 24 pin digital DVI
Compatibility	PC/Mac
Certification	TCO '03, FCC Class B certified, CE, MPR II, UL, TUV GS, VCCI, C-Tick, BSMI, ISO 9001, GOST, cUL, EPA Energy Star, GS, ISO 13406-2, NEMKO, NOM, PCBC, SASO, TCO '99, ISO 14001, CB, CCC, TUV Ergo, PSB
Market positioning	-
Power consumption (typical)	35 W
Operating relative humidity (H-H)	20 - 90 %
Maximum operating temperature range (T-T)	0 - 40 °C

Weight and Dimensions

Depth (without stand)	176 mm
Width (without stand)	388 mm
Height (without stand)	438 mm
Weight (without stand)	5000 g
