VIGAS 100 Lambda Control - AK4000 Control System Electrical Connections

21
Gasifying boiler VIGAS
13.5 DISPLAY LINE
13.6 AK4000 CONTROL SYSTEM ELECTRICAL CONNECTION - INPUTS AND OUTPUTS
I/O
AK4000S
– connection to power board
T1
Boiler thermometer T1
T2
Exhaust gas thermometer T2
T3
Indoor thermostat T3
T3
Or accu. Thermometer T3
I/O AK4000E1
– connection for Expander 1
1 T2
Thermometer UK1 to T2
1 R
3
Pump voltage UK1 to
R3
1
ON R1
Phase servo-unit
„OPEN“ to R1
1 OFF R2
Phase servo-unit
„CLOSE“ on R2

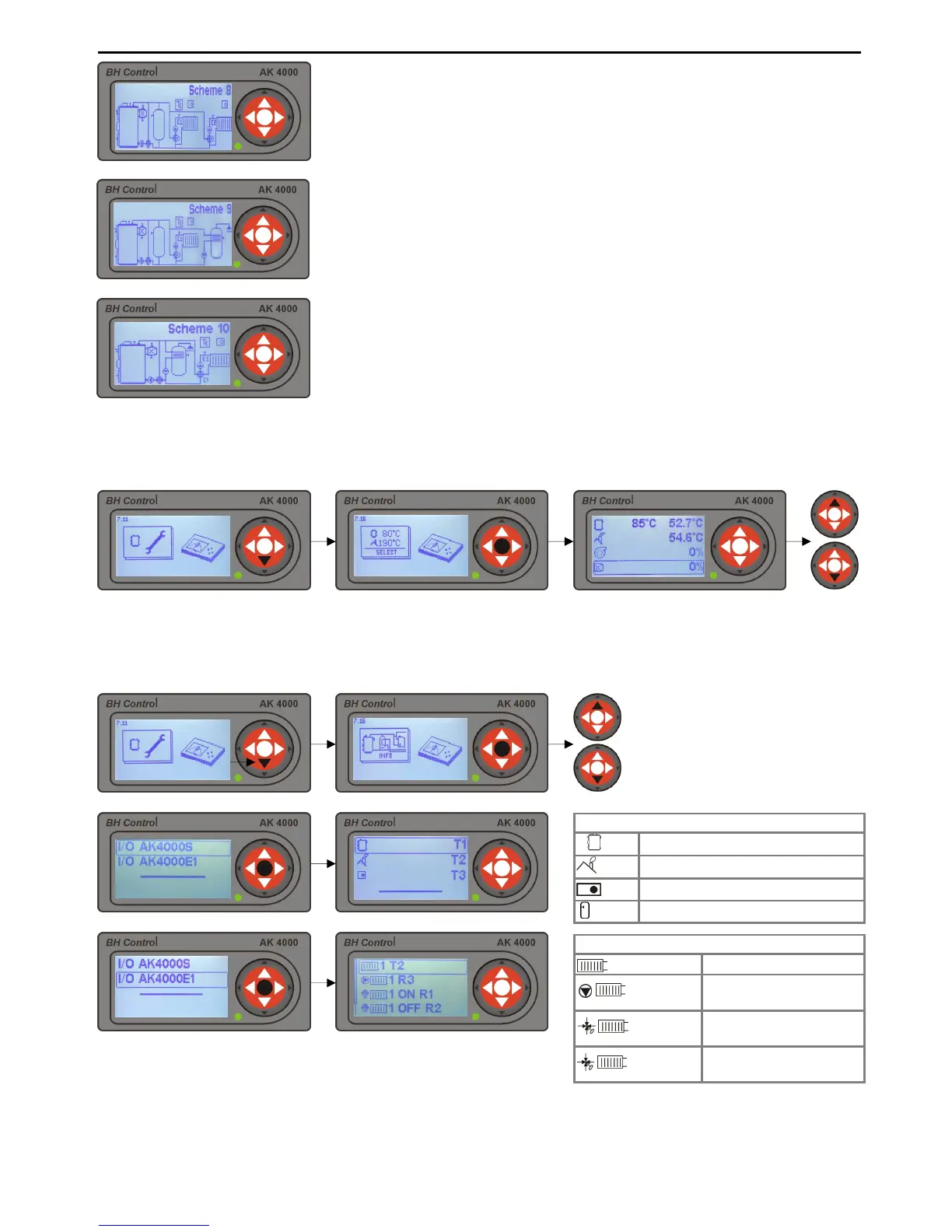

Schema 8
with two separate heating circuits and accumulator tank. Option to
choose floor or radiator heating or combination of both. Temperature of central
heating can be regulated according to external
temperature, room thermostat or
by combination of both. Boiler protection against low-
temperature corrosion
provides 3-way thermostatic valve (60 °C).
Use: Expander double set (code 5002) + 1 x sensor KTY (code 3032).
Riadkové zobrazenie umožňuje prehľadne zobraziť jednotlivé údaje riadiaceho systému AK4000. Tlačidlami ▲
zvoľte požadovaný údaj a potvrďte tlačidlom „ENTER“. Označené údaje budú zobrazené v
riadkových informáciách
(kap.3.5).
The AK4000 control sys
tem enables the display of both input and output according to actual configuration of the boiler
for particular contacts.
2x
Press „ENTER“ button
and using ▲  buttons
choose required module.
Schema 9 for (BSE
-
2)
with one heatin
g circuit of central heating system using
servounit with accumulator tank. Heating of warm domestic water is controlled by
pump. Water temperature can be regulated on the basis of external temperature,
room thermostat or the combination of the two. 3-way t
hermostatic valve (60°C)
secures the protection of boiler against low-temerature corosion.
Use: Expander basic set (code 5001) + 1x tank sensor KTY (code 3032)
Schema 10
is
used with one heating circuit controlled by servounit for floor or
radiator heatin
g. Heating of domestic water supply is controlled by pump.
Temperature of central heating is controlled by external temperature, room
thermostat or by combination of both. Boiler protection against low-
temperature
corrosion provides 4-way mixing valve.
Use: Expander basic set (code 5001)
