VIGAS 100 Lambda Control - Recommended Electric Scheme with AK4000; Electric Scheme with AK4000 + Expander

31

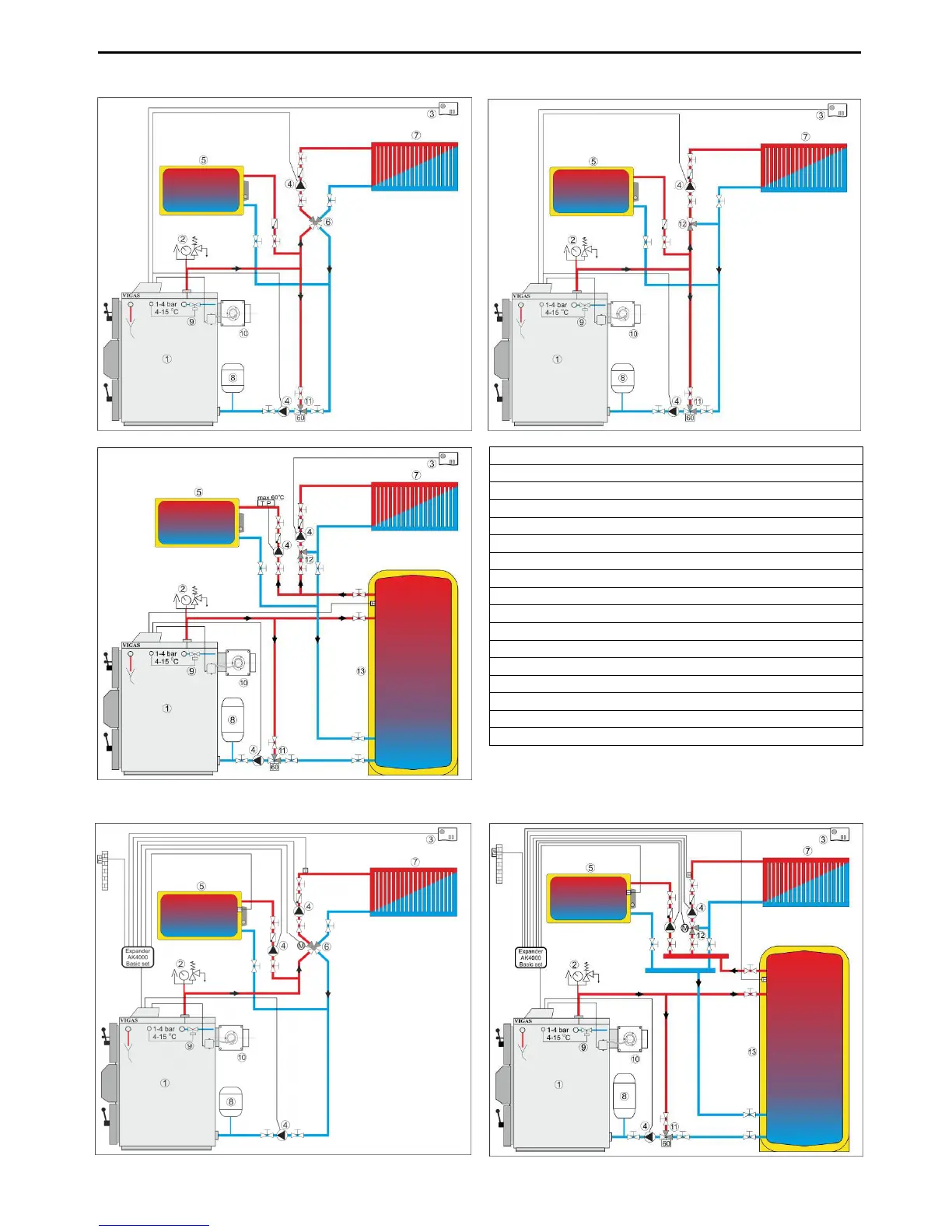

Gasifying boiler VIGAS
1. Boiler VIGAS
2. Security group
3. Indoor thermostat
4. Pump
5. Water tank
6. Four-way valve
7. Heating circle
8. Expansion tank
9. Safety valve Honeywell TS 131
10. Exhaust fan
11. Thermostatic valve ESBE VTC 312, VTC 512
12. Three-way mixing valve
13. Accumulation tank
M - Servo-motor
T - Thermometer KTY
T E – Thermometer – outside type KTY
T P – Pump thermostat
19.4
Recommended electric
scheme with
AK 4000
+ Expander AK4000 Basic set
.
19.3
Recommended electric scheme with AK4000
BS-1
BS-2
BS-3
BSE-1
BSE-2
