USER'S MANUAL
ENGLISH
GENERAL CONFORMATION

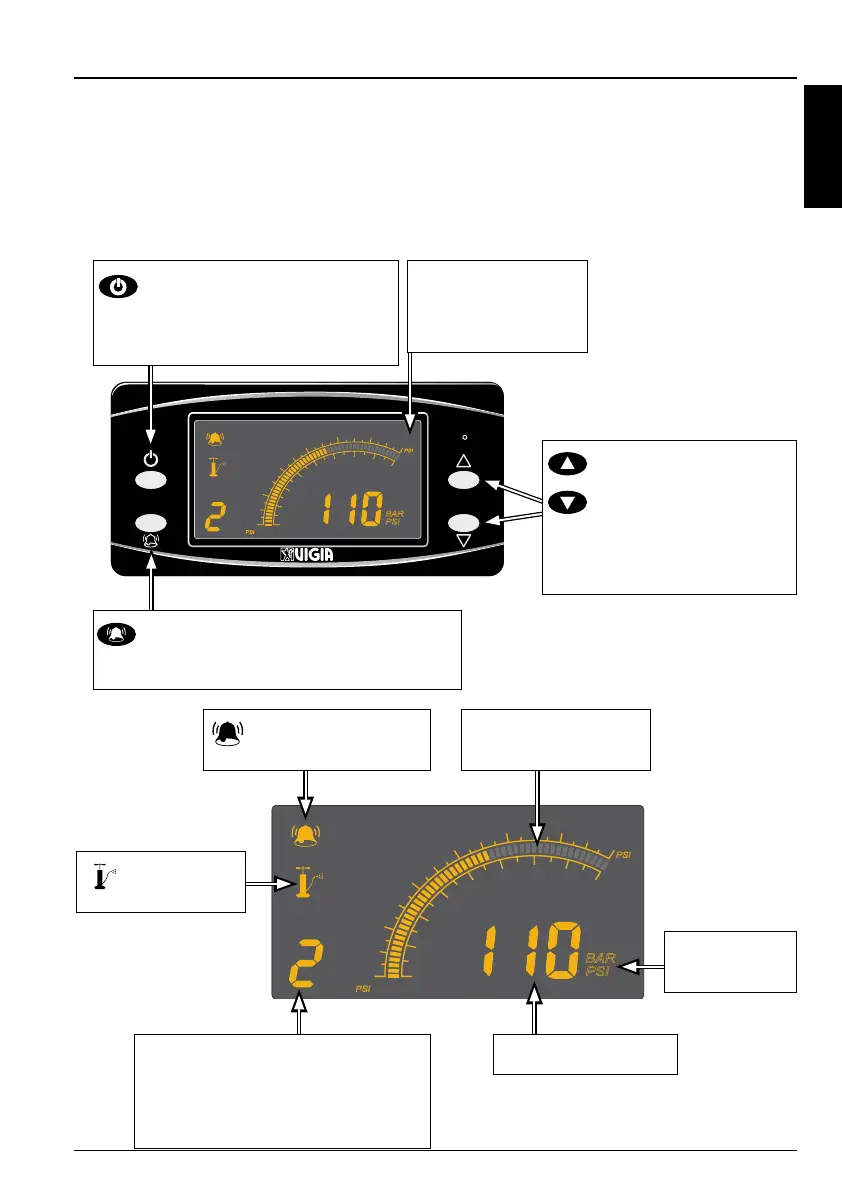

Control Panel
It controls the functioning of the ination module and it alerts the
driver through audiovisual signals on a digital screen.
40
3
BAR
160
11
BAR
60
80
100
120
140
BAR
PSI
4
5
6
7
8
9
10
PSI
PSI
- TURNS ON/OFF THE
EQUIPMENT
- DEACTIVATE THE INFLATION
PROCESS IN ONE OR MORE
PRESSURES
IT SHOWS THE
FUNCTIONS AND
PARAMETERS OF
THE EQUIPMENTS
- INCREASES/
DECREASES THE
VALUES
- SELECTS A PRESSURE
SYSTEM
- GO INTO SEQUENTIAL
MANUAL MODE
- ACTIVATES/DEACTIVATES THE ALARM
- CHANGES THE LUMINOUS INTENSITY
40
3
BAR
160
11
BAR
60
80
100
120
140
BAR
PSI
4
5
6
7
8
9
10
PSI
PSI
PRESSURE SCALE
EQUIPMENT
CALIBRATED
MEASURING
UNIT
PRESSURE VALUE INDICATOR DÍGIT:
1= PRESSURE 1
2= PRESSURE 2
3= PRESSURE 3
P= PRESSURE OF AIR SUPPLY
AUDIOVISUAL SIGNAL
ACTIOVATED
