LAN Subsystem
The LAN subsystem consists of the following:
Realtek RTL8111E Gigabit Ethernet Controller (10/100/1000Mbits/s)
RJ-45 LAN connector with integrated status LEDs
Additional features of the LAN subsystem include:
Integrated 10/100/1000 transceiver
Crossover Detection & Auto-Correction
Wake-on-LAN and remote wake-up support
Supports Full Duplex flow control (IEEE 802.3x)
Supports jumbo frame to 9K bytes
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports power down/link down power saving
RJ-45 LAN Connector LEDs
The two LEDs are built into the RJ-45 LAN connector located on the back panel. These
LEDs indicate the status of the LAN as shown in Table 1.

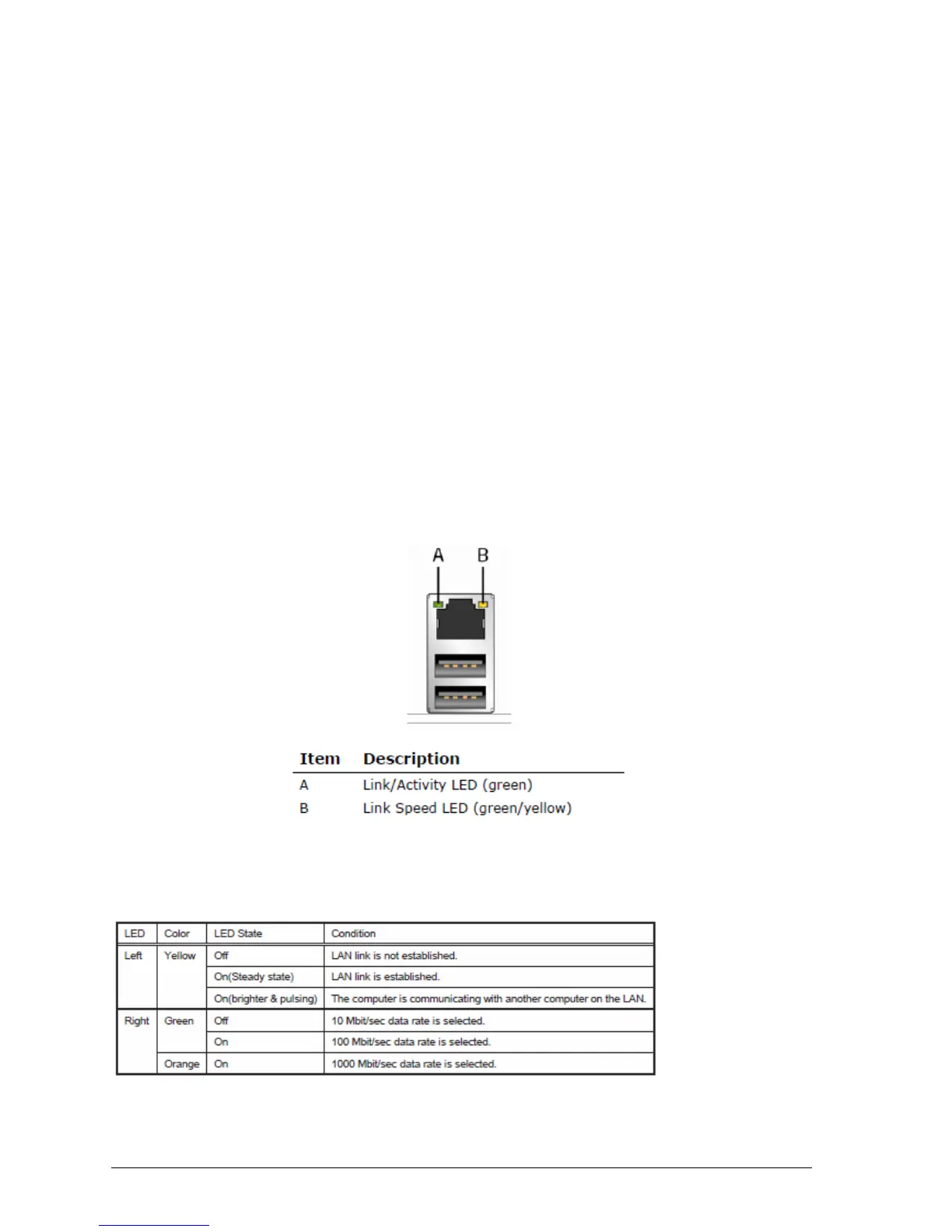

Figure 2: LAN Connector LED Locations
Table 1: LAN LED Status
