S/PDIF-Out Connector: JSP1
This connector is used to connect S/PDIF (Sony & Philips Digital interconnect Format)
interface for digital audio transmission.

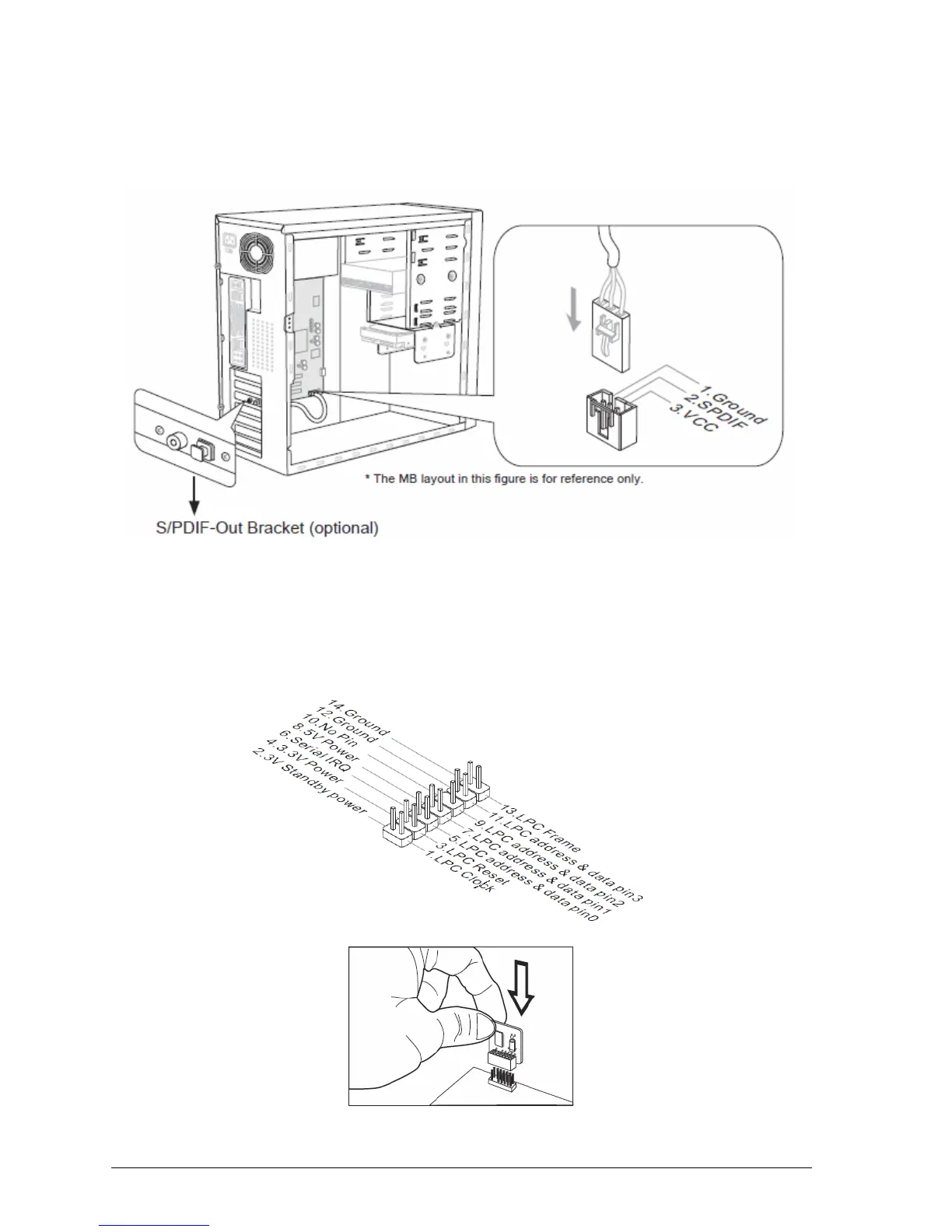

Figure 11: S/PDIF-Out connector
TPM Module connector: JTPM1
This connector connects to a TPM (Trusted Platform Module) module (optional). Please
refer to the TPM security platform manual for more details and usages.
Figure 12: TPM Module connector
