Supports PCI Express GEN1 frequency of 1.25 GHz resulting in 2.5 Gb/s each
direction (250 MB/s) per lane. Maximum theoretical bandwidth on interface is 4GB/s
in each direction, simultaneously, when operating in x16 mode.
Audio Subsystem
The motherboard supports Intel High Definition Audio through a Realtek ACL887 audio
codec.
These audio connectors are used for audio devices. It is easy to differentiate between
audio effects according to the colour of audio jacks.

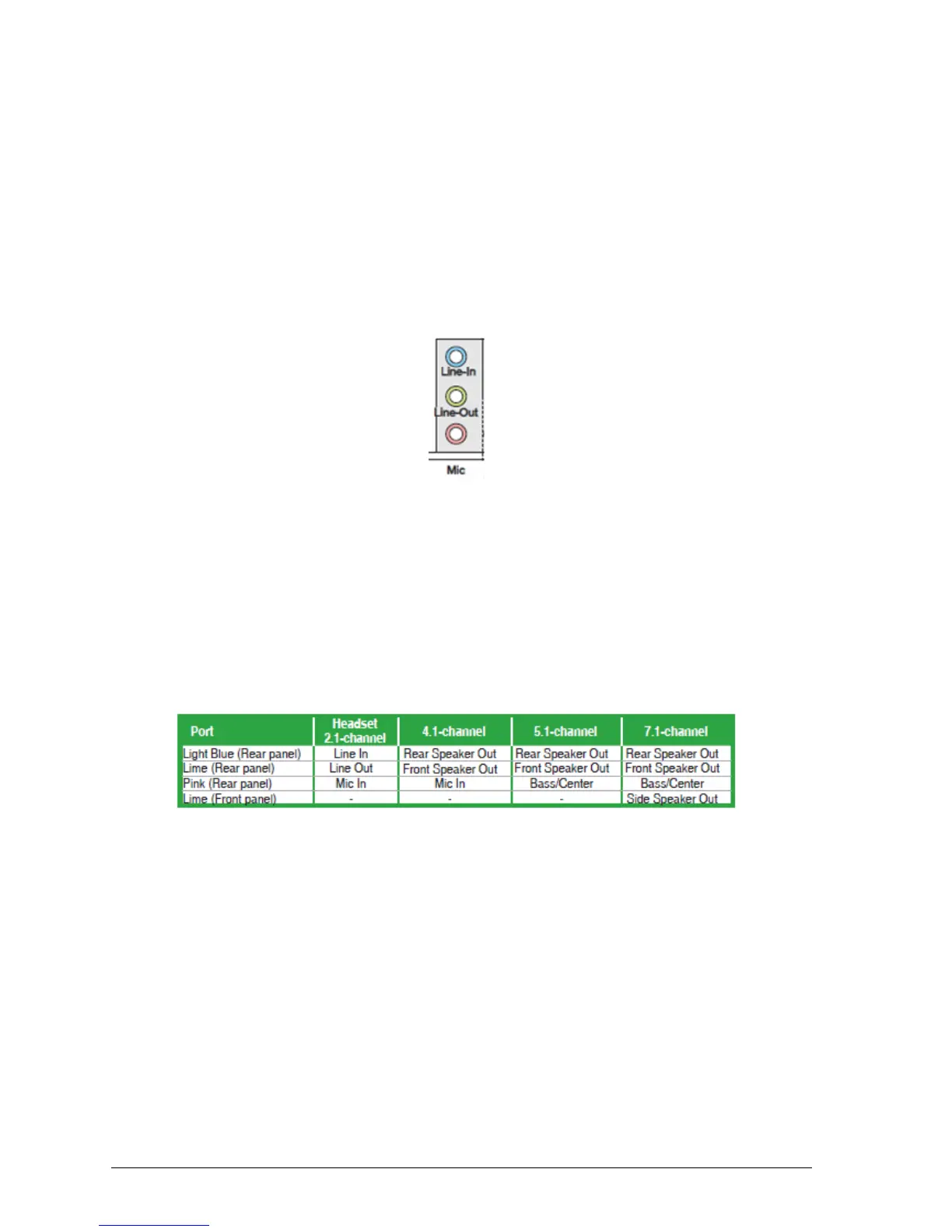

Figure 4: Audio Connectors
Line-In (Blue) - Line In, is used for external CD player, tape-player or other audio devices.
Line-Out (Green) - Line Out, is a connector for speakers or headphones.
Mic (Pink) - Mic, is a connector for microphones.
Notes: If you want to configure a 8-channel audio output: Use a chassis with HD audio
module in the front panel to support an 8-channel audio output.
Table 1: Audio channel configuration
Audio 2.1, 4.1, 5.1, or 7.1-channel configuration
LAN Subsystem
The LAN subsystem consists of the following:
• Intel I219LM Gigabit Ethernet Controller (10/100/1000 Mb/s)
• Intel Q87 Express Chipset
• RJ-45 LAN connector with integrated status LEDs
Additional features of the LAN subsystem include:
• CSMA/CD protocol engine
• LAN connect interface between the PCH and the LAN controller
• Conventional PCI bus power management
• ACPI technology support
• LAN wake capabilities
• ACPI technology support
