System Board Components

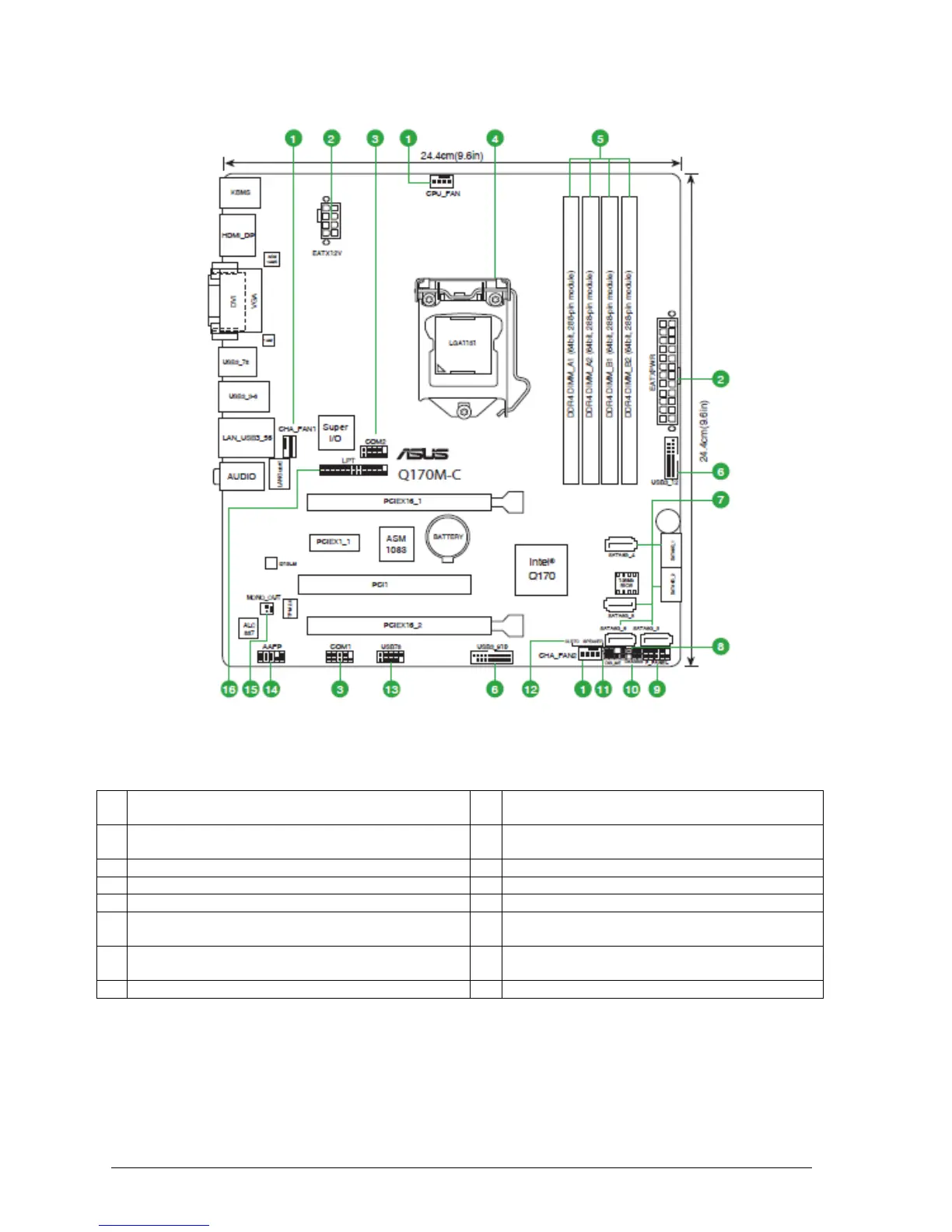

Figure 6: Motherboard Layout & Components
Table 4: Motherboard Components
1
CPU and chassis fan connectors
(4-pin CPU_FAN, 4-pin CHA_FAN1/2)
9
System panel connector (10-1 pin F_PANEL)
2
ATX power connectors (24-pin EATXPWR, 8-pin
EATX12V)
10
Chassis intrusion header (4-1 pin CHASSIS)
3
Serial port connectors (10-1 pin COM1, COM2)
11
Intel® ME jumper (3-pin DIS_ME)
4
Intel® LGA1151 CPU socket
12
Clear RTC RAM (2-pin CLRTC)
5
DDR4 DIMM slots
13
USB 2.0 connectors (10-1 pin USB78)
6
USB 3.0 connector (20-1 pin USB3_12,
USB3_910)
14
Front panel audio connector (10-1 pin AAFP)
7
Intel® Q170 Serial ATA 6.0Gb/s connector (7-pin
SATA6G_1~6 [gray])
15
Mono out header (2-pin MONO_OUT)
8
Speaker connector (4-pin SPEAKER)
16
LPT connector (26-1 pin LPT)
