V1.0 Vig830S Motherboard Manual
21

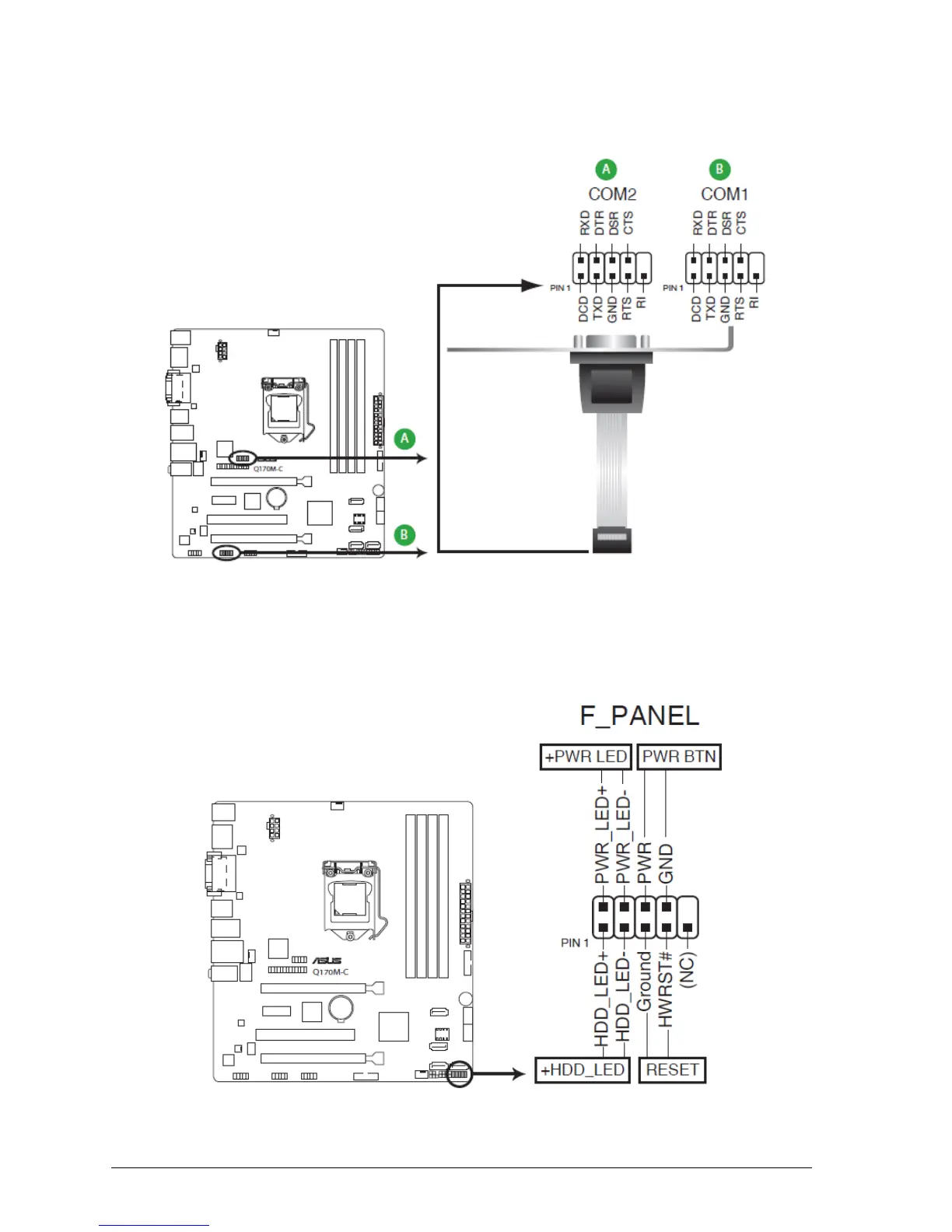

 Serial port connector (10-1 pin COM)
This connector is for a serial (COM) port. Connect the serial port module cable to this connector, and then
install the module to a slot opening at the back of the system chassis.
Figure 11: Serial Port Connectors
 System panel connector (10-1 pin F_PANEL):
These connectors are for electrical connection to the front panel switches and LEDs.
Figure 12: Front Panel Connectors
