Front panel audio connector (10-1 pin AAFP)
This connector allows you to connect the front panel audio and is compliant with Intel® Front Panel I/O
Connectivity Design Guide.

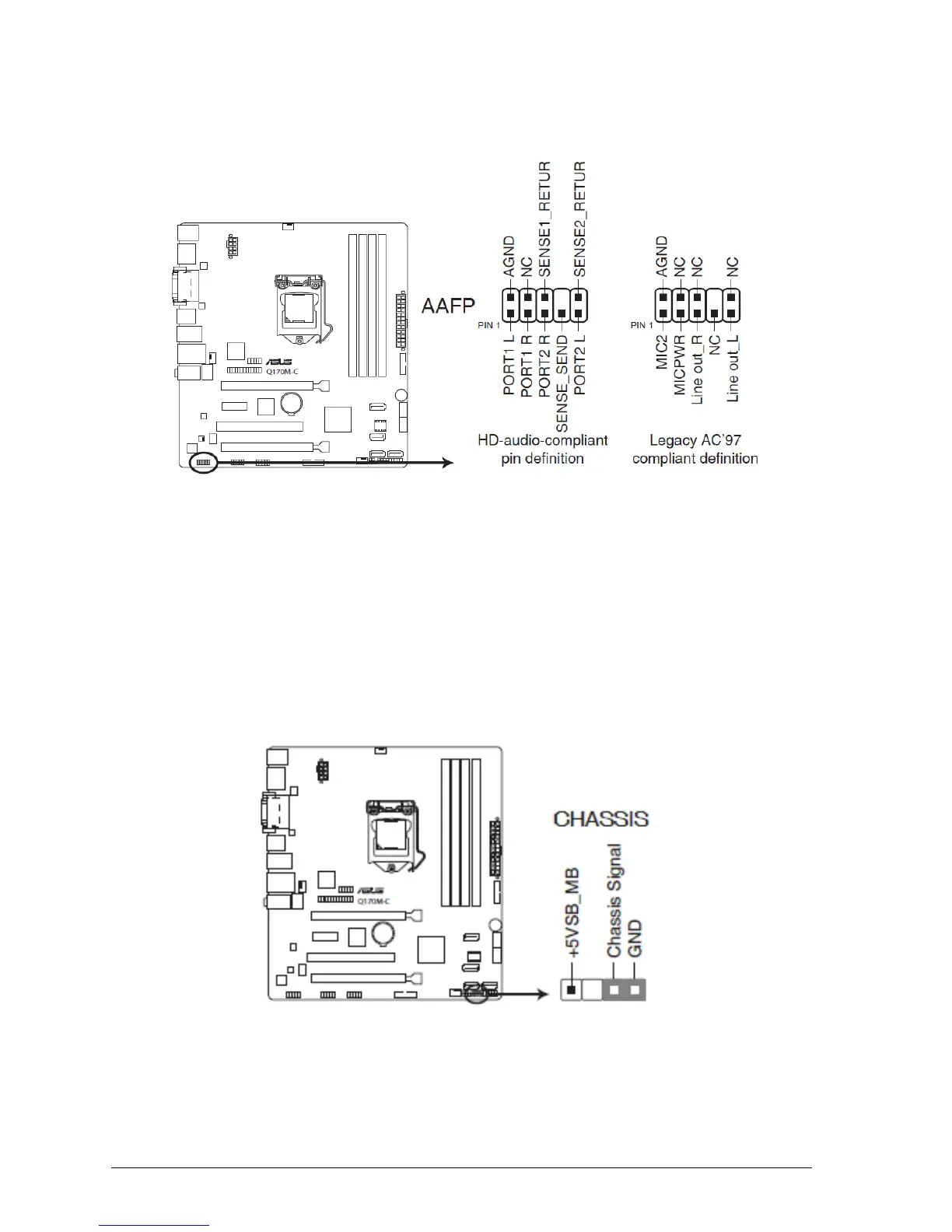

Figure 14: Front panel audio connector
Chassis intrusion connector (4-1 pin CHASSIS)
This connector is for a chassis-mounted intrusion detection sensor or switch. Connect one end of the
chassis intrusion sensor or switch cable to this connector. The chassis intrusion sensor or switch sends a
high-level signal to this connector when a chassis component is removed or replaced. The signal is then
generated as a chassis intrusion event. By default, the pin labeled “Chassis Signal” and “Ground” are
shorted with a jumper cap. Remove the jumper caps only when you intend to use the chassis intrusion
detection feature.
Figure 15: Chassis intrusion connector
