Intel® ME jumper (3-pin DIS_ME)
This jumper allows you to enable or disable the Intel® ME function. Set this jumper to pins 1-2 to enable
(default) the Intel® ME function and to pins 2-3 to disable it.

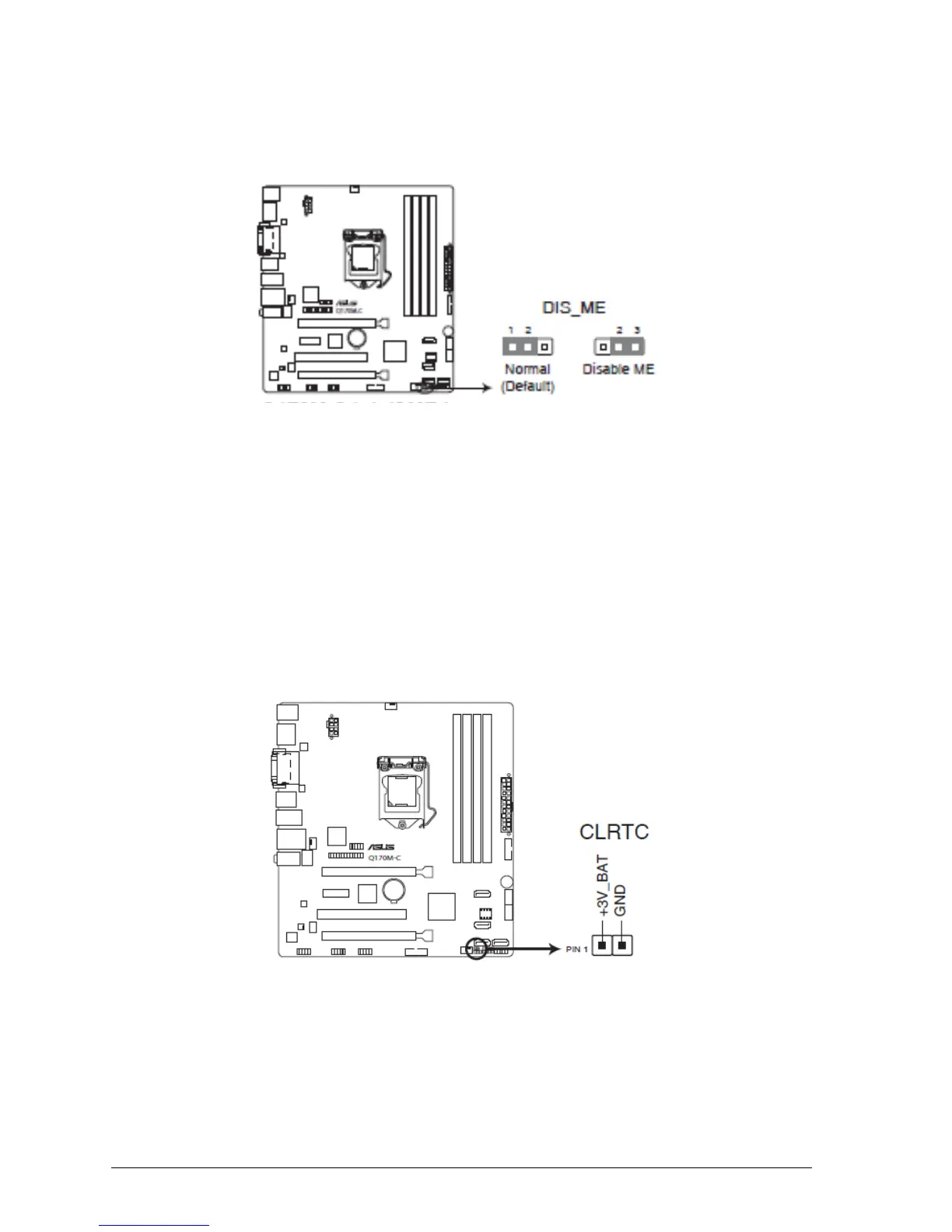

Figure 59: Intel® ME Jumper
To reset AMT password 3-pin CLRTC jumper needs to be configured.
Clear RTC RAM: (3-pin CLRTC)
This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the
CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM
data. The onboard button cell battery powers the RAM data in CMOS, which include system
setup information such as system passwords.
Figure 60: Clear CMOS jumper
