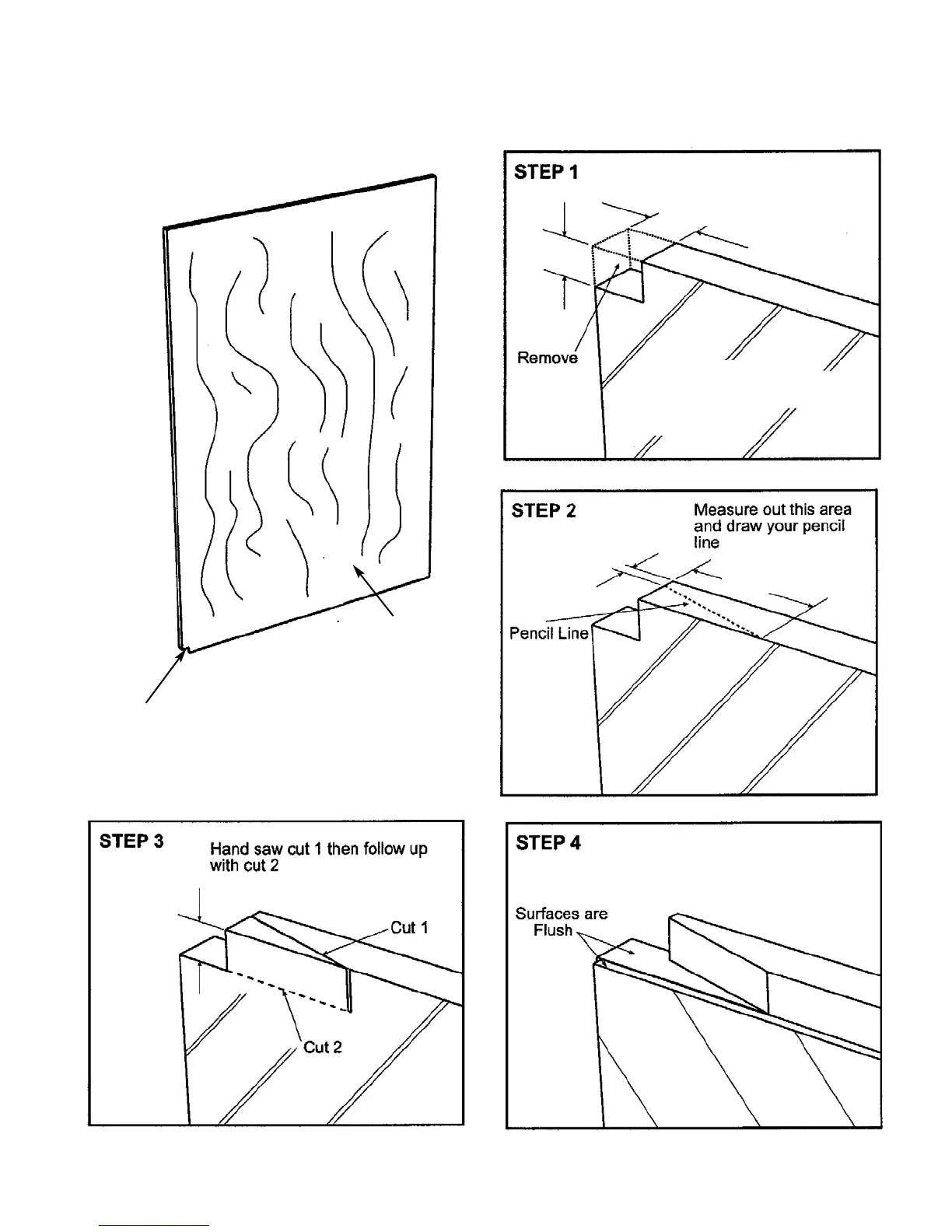

CUSTOM PANEL HINGE CUTOUT DETAIL
NOTE: Steps below show panel upside down and notched for a left hinge application. Overview of door and notch
location can be seen in Figure A.
For a right hinge door, mirror
dimensions to the right
Notch for left hinge
door
Figure A
Front side of 3/4”
(1.9 cm) panel
7/8”
(2.2 cm)
5/8”
(1.6 cm)
BBaacckkssiiddee ooff
33//44”” ((11..99 ccmm)) ppaanneell wwiitthhoouutt tthhee
11//44”” ((00..66 ccmm))
bbaassee ppaanneell
1/8”
(0.3 cm)
2” (5.1 cm)
FFiinnaall vviieeww sshhoowwnn wwiitthh 11//44”” ((00..66 ccmm))
bbaassee ppaanneell aaddddeedd
5/8” (1.6 cm)
