27

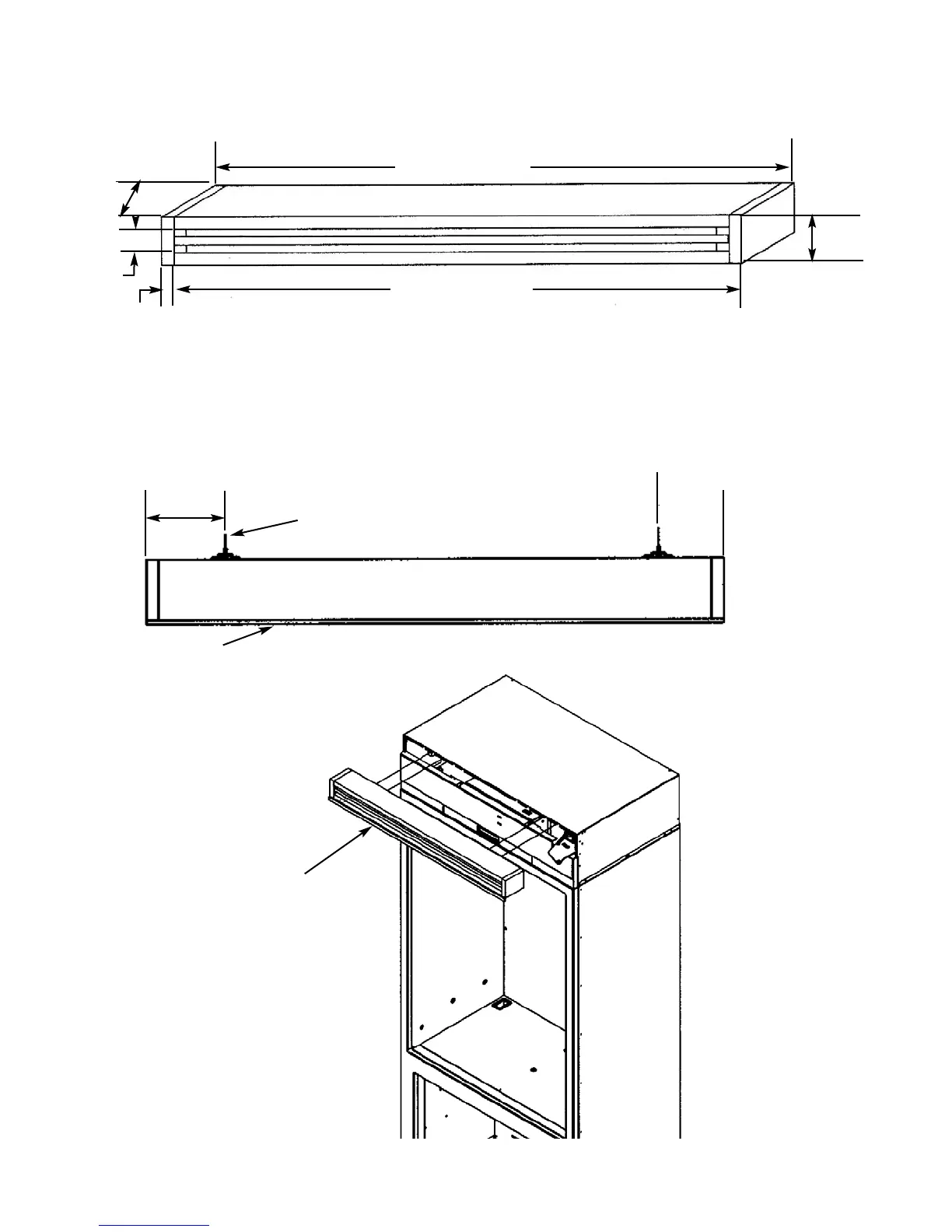

OPTIONAL CUSTOM AIR GRILLE DIMENSIONS
OPTIONAL CUSTOM AIR GRILLE DUCT LIP EDGE LOCATIONS
FFRROONNTT VVIIEEWW
35-1/2” (90.2 cm)
34” (86.4 cm)
3/4” (1.9 cm) TYP
1 1/2”
(3.8 cm)
3”
(7.6 cm)
3 3/4”
(9.5 cm)
TOP OF CUSTOM AIR GRILLE
Bracket
Custom Air Grille
4 7/8”
(12.3 cm)
4”
(10.2 cm)
Front of Air Grille
