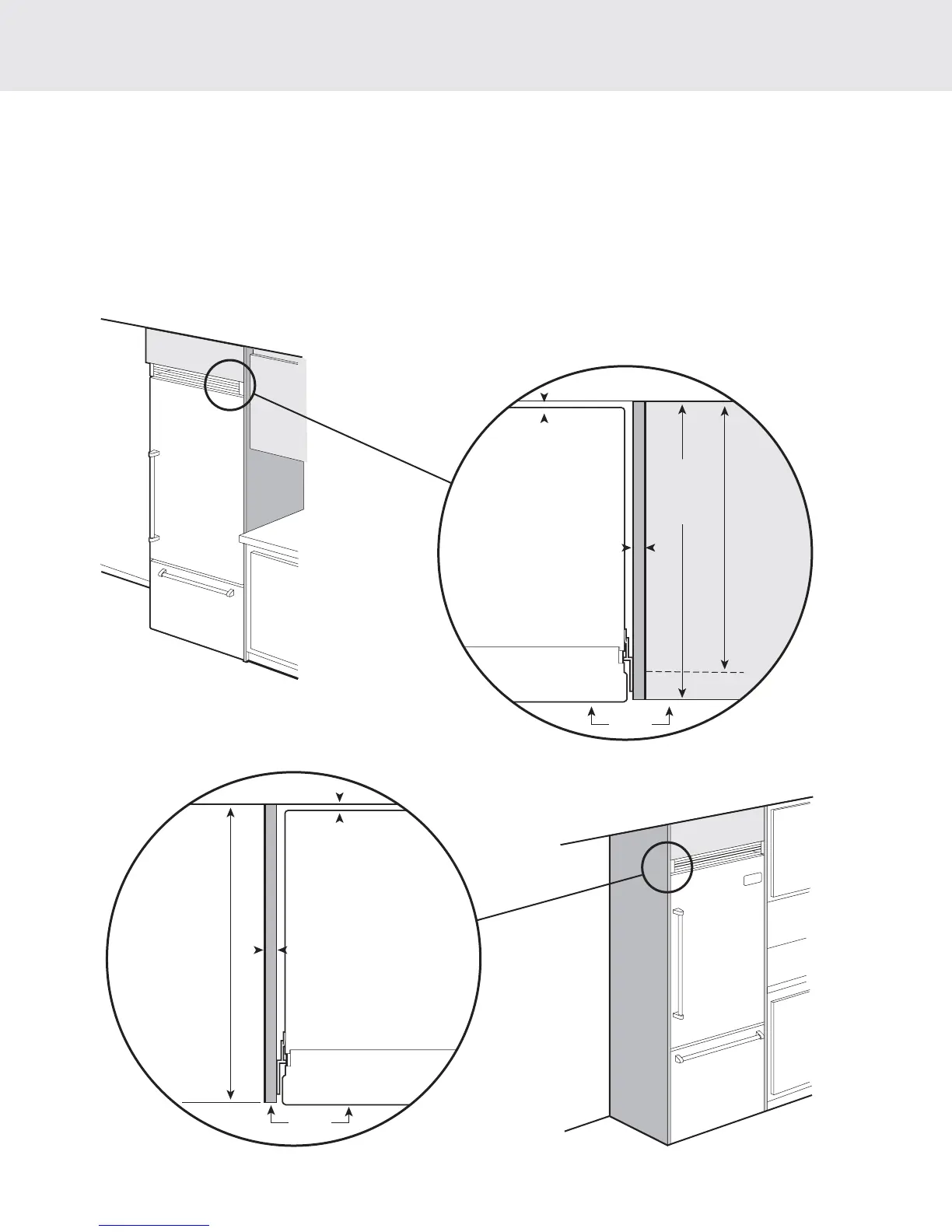

Cabinet Information (Professional with Flush Mount Trim)
Top View
Top View
Door
24”
(61.0 cm)
Standard
Cabinet
Depth
25”
(63.5 cm)
Countertop
Depth
Wall
3/4”
(1.9 cm)
Full End
Panel
Door
Wall
1”
(2.5 cm)
space if
25” (63.5 cm)
cabinet depth
is used
3/4”
(1.9 cm)
Full End
Panel
25”
(63.5 cm)
Flush
1”
(2.5 cm)
space if
25” (63.5 cm)
cabinet depth
is used
Flush
Professional models with fl ush mount trim fi t fl ush in standard 24” (61.0 cm) deep cabinet
openings with no protrusion into the room except the handle protrudes 2-1/2” (6.4 cm) into the
room.
