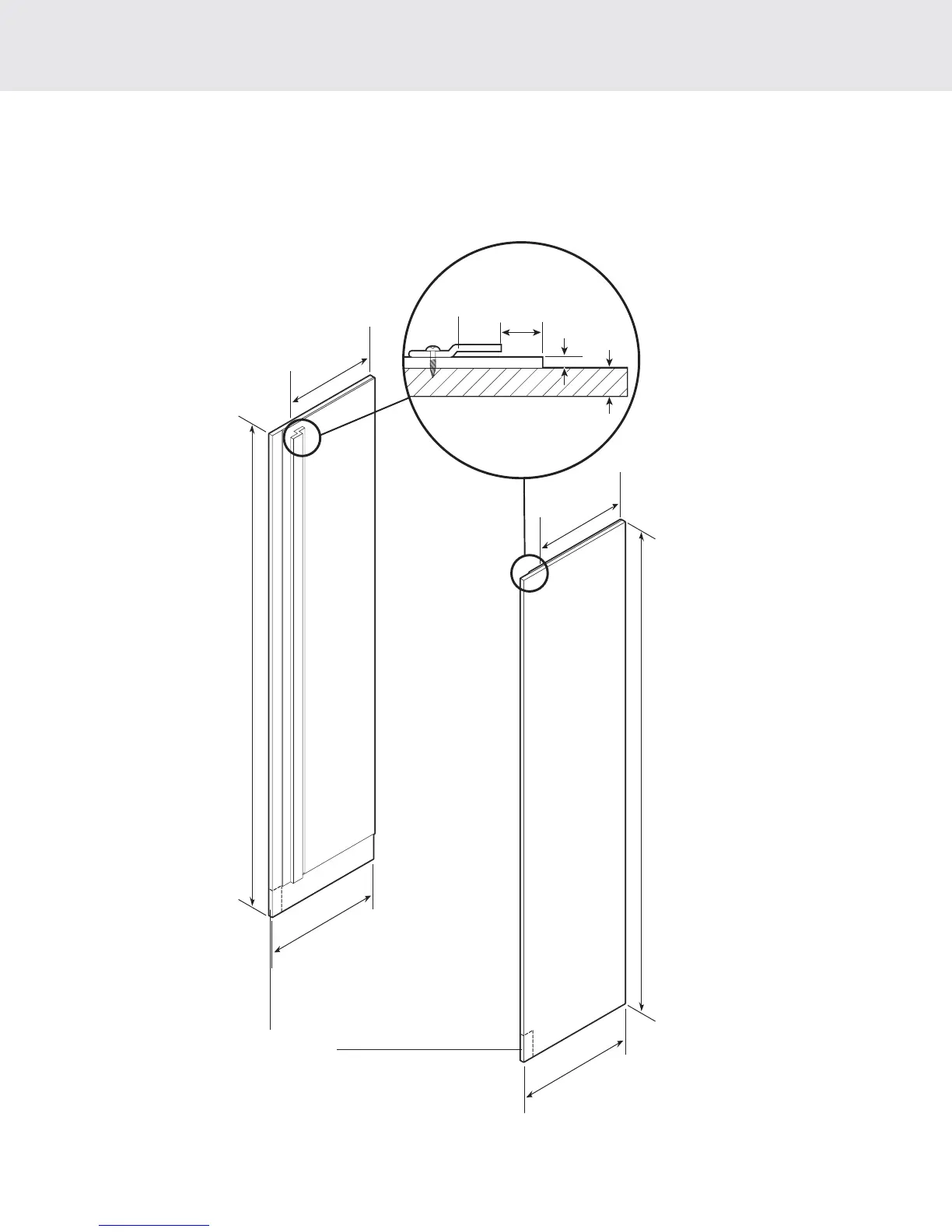

Custom Side Panel Dimensions
( Professional with Flush Mount Trim)
* Depending on how high leveling feet are raised, and cabinet enclosure height.
3/4”
(1.9 cm)
End panel
1”
(2.5 cm)
1/4”
(0.6 cm)
Z-Bracket
21-3/4”
(55.2 cm)
21-3/4”
(55.2 cm)
24”
(61.0 cm)
Optional kickplate
Notch, dimensions
determined by cabinets
24”
(61.0 cm)
82-7/8”
(210.5 cm) min.
to
84-1/16”
(213.5 cm) max.*
82-7/8”
(21
0.5 cm) min.
to
84-1
/16”
(213.5 cm) max.*
