Open refrigerator door so door stop and shoulder
screw are accessible. Note: Shoulder screw should be
in 110º door opening position.
Remove shoulder screw and place in
90º or 120º position.
1
2
18
2
1
3
19

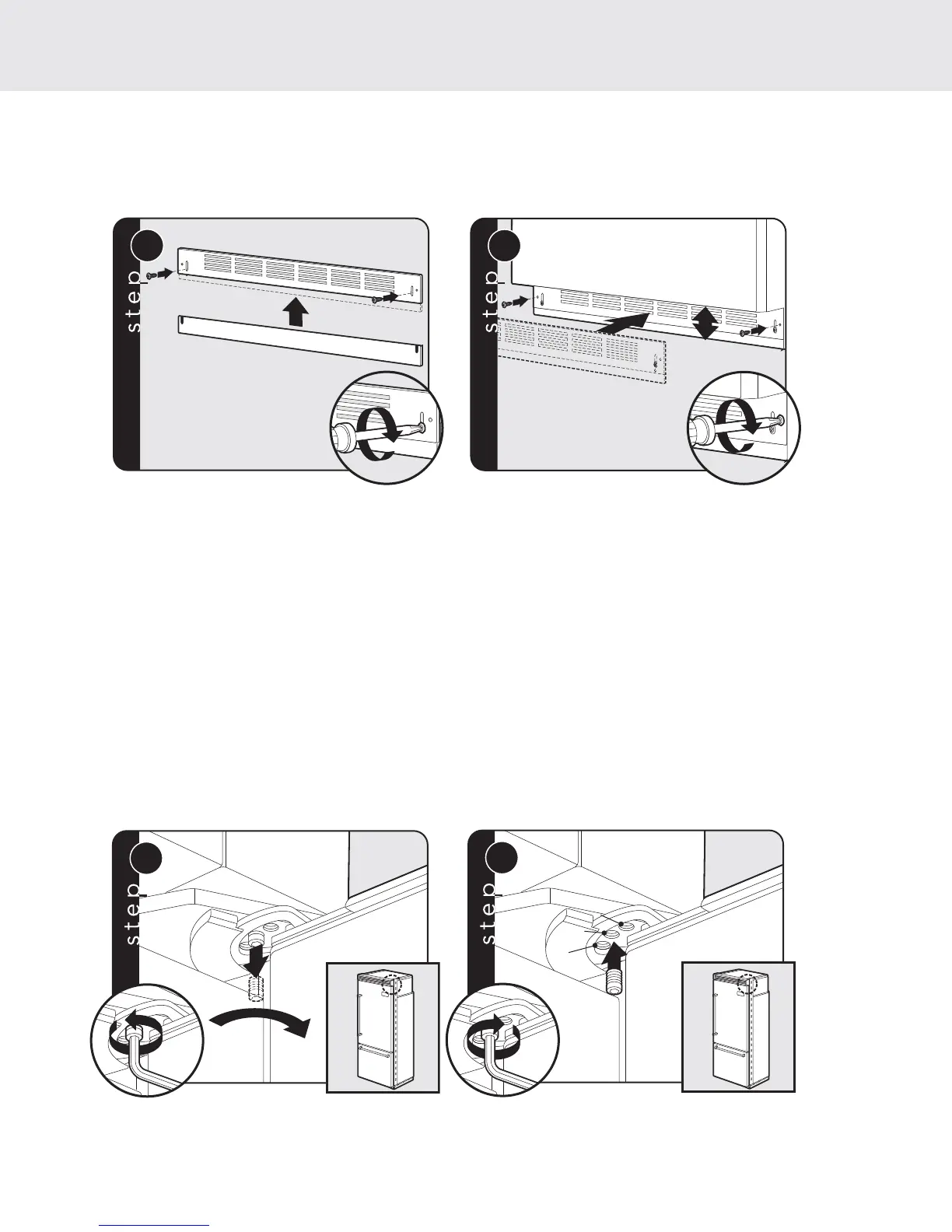

Align holes on both ends of louvered panels
and insert screws.
Using a Phillips screwdriver, attach the
kickplate to the unit and adjust to desired height.
Kickplate Installation
Door Stop Adjustment
(Bottom-Freezer)
To Next Page
