4
USA
4. MATERIALS SUPPLIED
4.1 PARTS SUPPLIED
Parts for your dishwasher will
come in several plastic bags.
Check your parts bags shown
to make sure you have all the
parts as listed to the left.
4.2 MANUAL BAG
The dishwasher comes with a
manual bag containing:
• User manual,
• Installation manual

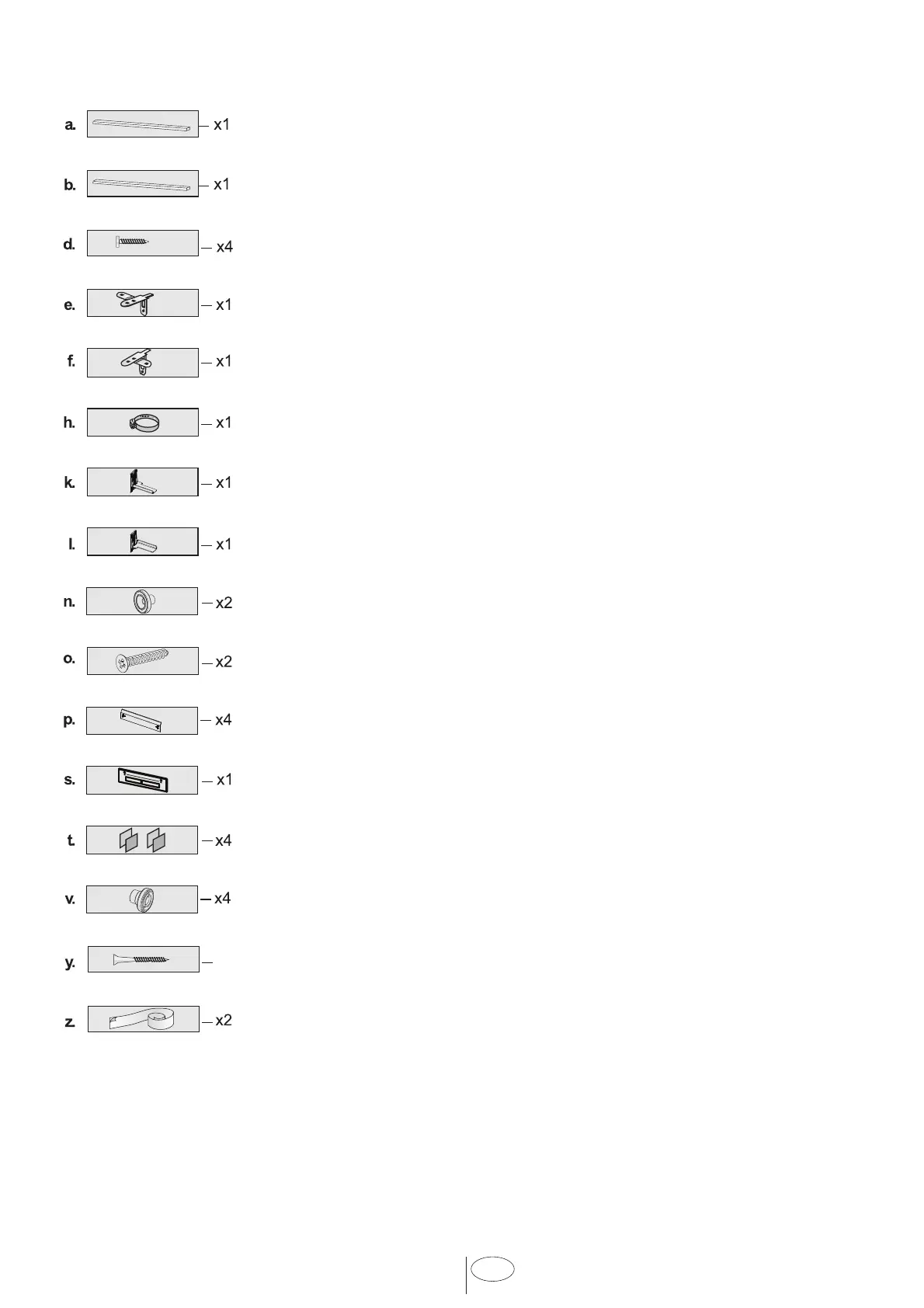

4.3 DISHWASHER
PARTS BAG 1
This dishwasher bag comes
with the following parts:
a. Side Trim Strips (Left)
b. Side Trim Strips (Right)
d. Screws Ø 1/8” x 5/8” (Ø
3.5 mm x 14 mm)
e. Mounting Bracket Left
f. Mounting Bracket Right
h. Screw Clamp
k. Toe Kick Bracket - Left
l. Toe Kick Bracket – Right
n. Custom Door Plug
o. Custom Door Screw
p. Toe Kick
s. Template
t. Hook and loop fastener
v. Side spacer
z. Steam Protection Foil
4.4 DISHWASHER
PARTS BAG 2
(SELECT MODELS)
In addition to the manual bag
and the dishwasher parts bag
(dishwasher models which
can accept a wooden kitchen
door) also come with a door
panel installation kit which
contains:
y. Screws 4mm x 36 mm =
3/16th x 1-7/16th
4.5 PARTS ATTACHED
TO THE REAR OF THE
DISHWASHER
a. Side Trim Strips (Left)
b. Side Trim Strips (Right)
x6
