7
USA

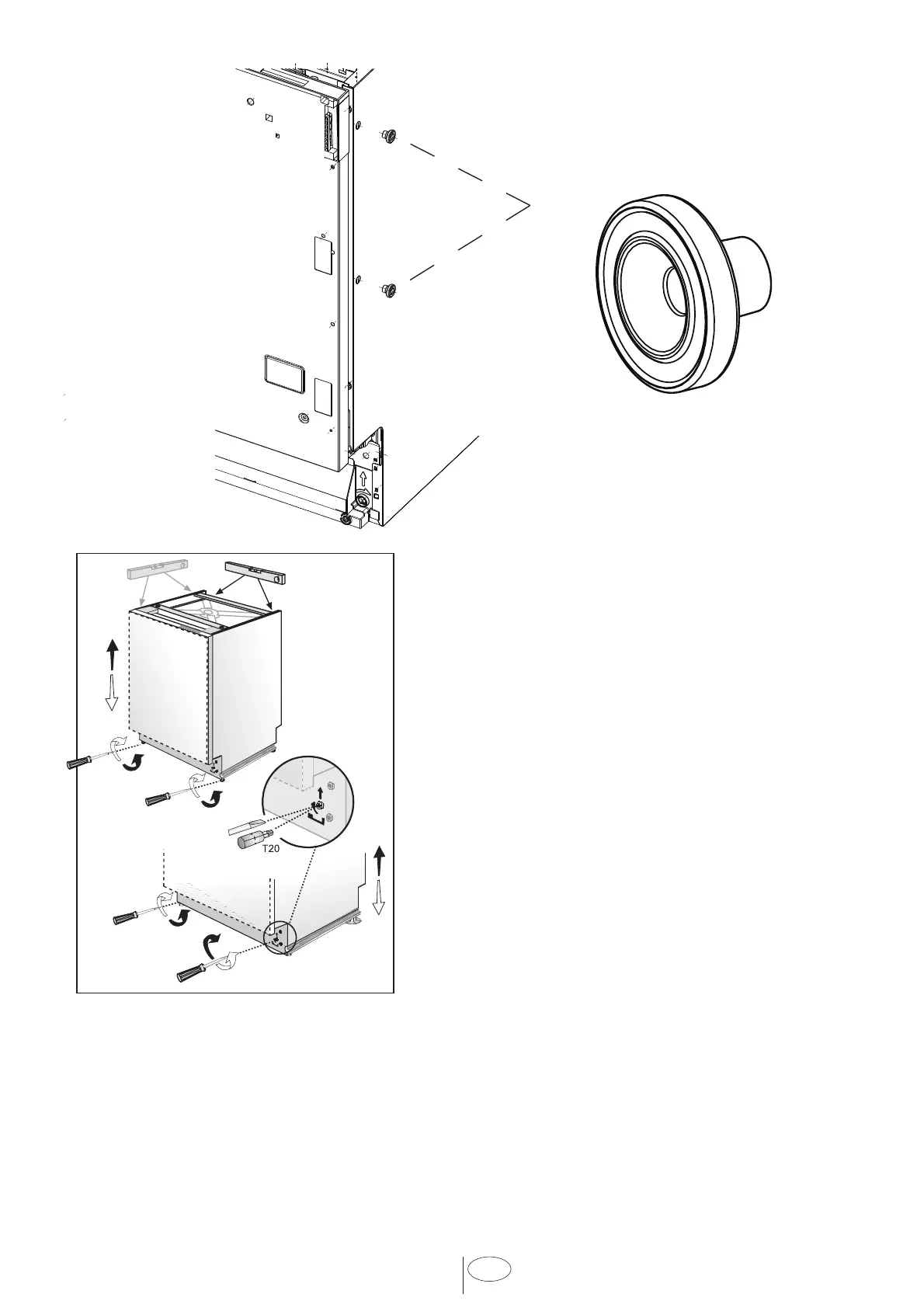

Install the 4 spacers (v) into the
openings on each side of the
dishwasher as shown.
Place the two mounting brackets into the top
corners of the dishwasher.
Fix the mounting brackets (A) to the top corners of
the dishwasher, with the screws supplied.
Bend sides of mounting brackets (B) in order to fix
from sides (if necessary).
6.3 ADJUSTING HEIGHT
If the height of the enclosure is 33⅞” to 35⅞” (861
mm - 911mm) adjust supports as shown in the
figure.
Supplied (4)
Adjust the front foot level with the adjusting
wrench to balance and raise the dishwasher to the
enclosure height.
Adjust the rear foot level with a screwdriver to
balance and raise the dishwasher to the enclosure
height.
