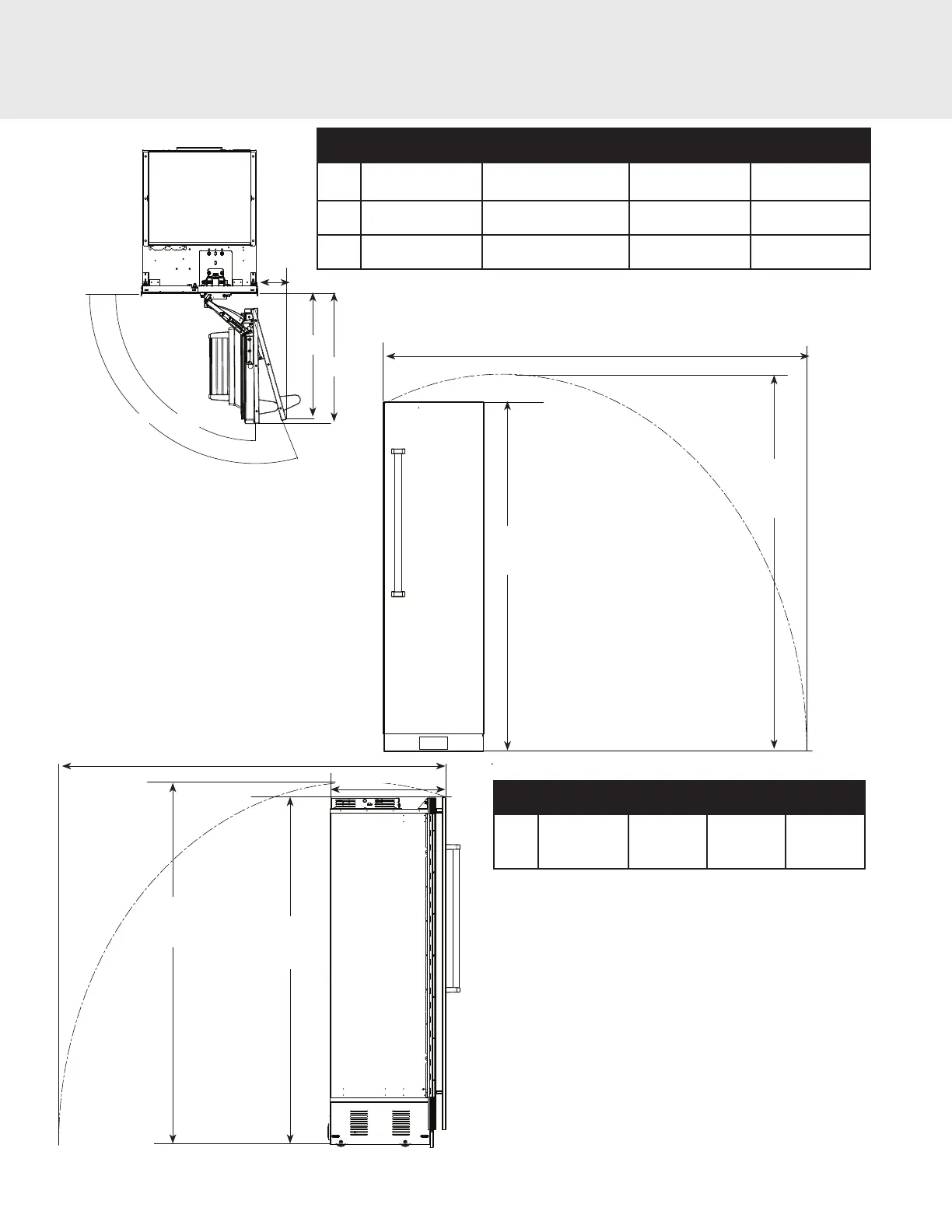

Door Swing / Tipping Radius
105
0
90
0
A
B
18" 24" 30" 36"
A 19-1/16" (48.4 cm) 25-3/16" (64.0 cm) 31-3/8" (79.7 cm) 37-1/4" (94.6 cm)
B 20-1/16" (51.0 cm) 26-1/16" (66.2 cm) 32-1/16" (96.5 cm) 39-5/16" (99.9 cm)
C 4-1/2" (11.4 cm) 6-3/16" (15.7 cm) 7-7/8" (20.0 cm) 9-1/2" (24.1 cm)
C
127-3/16" (323.1 cm)
83-15/16"
(213.2 cm)
D
18" 24" 30" 36"
D 86"
(218.4 cm)
88"
(223.5 cm)
90"
(228.6 cm)
92"
(233.7 cm)
113" (287.0 cm)
87-3/4"
(222.9 cm) 83-15/16"
(213.2 cm)
24-3/4" (62.9 cm)
